| Place of Origin: | China |
| Brand Name: | Fumego |
| Certification: | CE ROHS |
| Model Number: | YM200 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Color: | White | Type: | Fume Extractor |
|---|---|---|---|
| Application: | Soldering | Power: | 200W |
| Voltage: | 110/220 V | Air Flow: | 310 M3/H |
| Weight: | 16.2 Kgs | Warrenty: | 2 Years |
Soldering Fume Extractor For Co2 Laser Marking With Remote Control and Screen
Features:
1, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
2, The fume tube can be randomly rotate, and can be fix in any position;
We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.
3, Assembled with DC brushless motor, which will have more stable performance and longer life;
4, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem happened if the machine is out of work.
5, Imported integrated AC fan, stable performance and longer life.
Specifications:
| Voltage | 110/220V |
| Power | 200W |
| Air flow | 310 M3/H |
| Filter layers | 3 layers |
| Air inlet | 75mm |
| Noise | 52 dB |
| Dimension | 43*25*45.7cm |
| Weight | 16.1KG |
Consumption filters (Calculated according to 8h daily working time)
|
First layer Replacement cycle |
Pre- Filter (Replacement @ 1-2 months ) |
|
Second layer Replacement cycle |
Middle Filter Replacement @ 3-5 months |
|
Third layer Replacement cycle |
High Efficiency Filter (Active Carbon) Replacement @ 3-6 months |
Product instruction:
4, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.
5, Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution.
11, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow;
19, The machine is in a very small dimension, never occupying space;
20, No need to assemble, plug and turn it on, start to work;
21, The filter element adopts a return structure and can hold dust on all sides.
FAQ:
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
Q: Do you do OEM?
A: Yes
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price. Whats more, Our product have several layers of filters and special active carbon filter which can highly remove bad smells and
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.

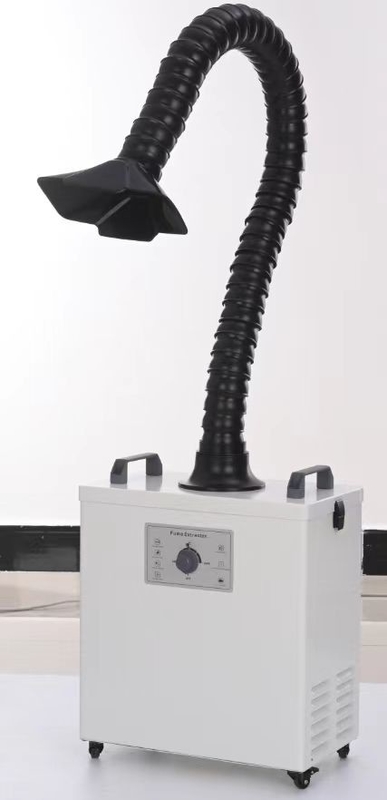

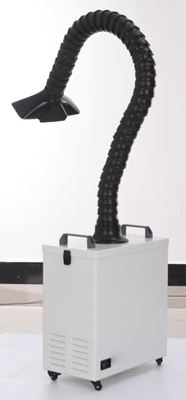

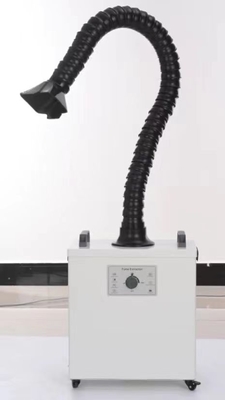

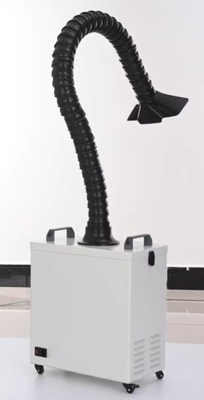

Product picture:
