Place of Origin: | China |
Brand Name: | Fumego Qubo |
Certification: | CE ROHS |
Model Number: | Q100 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Carton box package |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100pcs per week |
Power: | 80w | Air Flow: | 220 M3/H |
---|---|---|---|
Filter: | 2 Layers | Application: | Soldering, Laser Cutting, |
Noise: | 57db | Weight: | 11kg |
Warranty: | 2 Years | Dimension: | 340*265*480mm |
Voltage: | 110/220 V | ||
High Light: | 80W Solder Fume Extractor,Anti Corrosion Solder Fume Extractor,80W Solder Smoke Absorber |
Laser Marking Hand Welding Mini Pot Fume Extractor Lightweight 80w Portable Movable Machine
Features:
1.Multiple filtration ensures complete purification of harmful smoke and dust
2.Noise canceling design,quieter working place
3.Universal smoking arm, random orientation positioning
4.Special alloy impeller, anti-corrosion, stable operation
5.Durable mental frame structure,firm and unshaped
Instructions:
Power(W) | 80 |
Dimension(mm) | 340*265*480 |
Air Flow(m3/h) | 220 |
Noise(db) | <57 |
Voltage | 110/220 |
No-load speed(r/min) | 5800 |
Wind spped(m/s) | 17 |
Weight(kg) | 11 |
Negative pressure(pa) | 1800 |
Advantages:
1.Multi layer filtration, rapid purification, filter failure sound and light alarm.
2.Low cost basis: as low as 1.85 yuan / day (8 hours / day)
3.Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)
4.Replaceable tube and hood,choice suitable accessories, various specifications tube and materials hood.
5.Durable mental frame structure,firm and unshaped,small footprint
FAQ:
Q:How far is the smoke cover from the smoke point of the smoke purification system better?
A:Smoking cover (mouth) with the distance of unborn smoke point is better in 5-15 cm.
Q:Can the filter element be replaced separately?
A:Yes, each layer can be replaced independently
Q:Is it difficult to install the product? Do you need a professional to install it?
A:Small equipment refer to the manual, connected to the power supply can be used. No professional installation is required. Large equipment XL-3000/XL-5000 will be installed by professional personnel on site.
Q:Is the purified air discharged indoors or outdoors?
A:Both indoor and outdoor, according to your requirements, usually indoor, our products are in line with the indoor emission standards.
Q:Can the purified air meet the requirements of the environmental assessment?
A:The purified air is 300 to 500 times cleaner than the air we breathe normally. The products have passed the "CE" certification and "PONY" test of the European Union, and meet the requirements of environmental assessment and export standards.

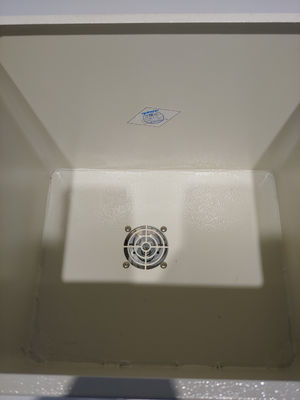

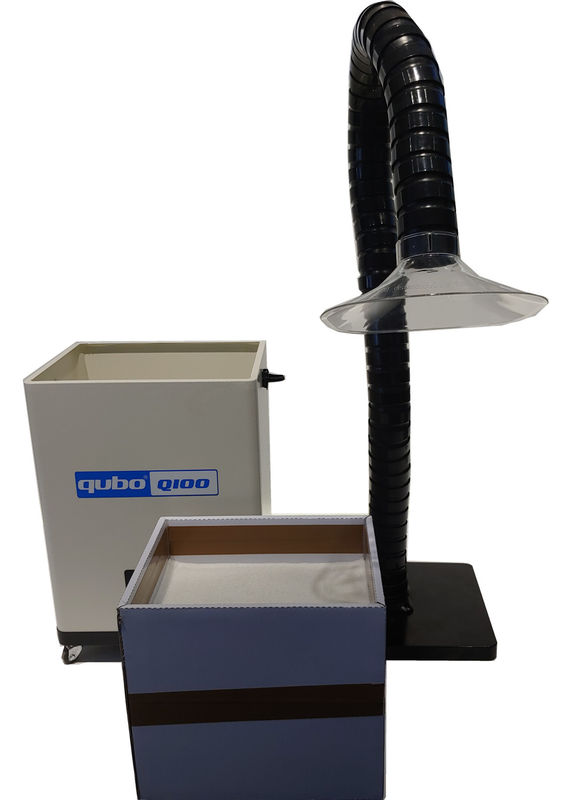

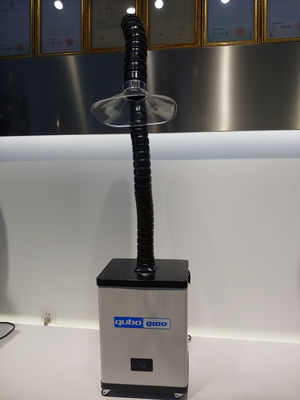

Product part picture:
