Durable 2000Pa Solder Fume Extractor Universal Wheels

Durable 2000Pa Solder Fume Extractor Universal Wheels

  • Durable 2000Pa Solder Fume Extractor Universal Wheels
  • Durable 2000Pa Solder Fume Extractor Universal Wheels
  • Durable 2000Pa Solder Fume Extractor Universal Wheels
  • Durable 2000Pa Solder Fume Extractor Universal Wheels
Durable 2000Pa Solder Fume Extractor Universal Wheels
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: DX1001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Power: 80w Air Flow: 235m3/h
Application: Welding Heat-gun Handling Noise: <52 Db
Filter: 3 Layers Weight: 12 Kg
Dimensions: 420*245*400mm
High Light:

2000Pa Solder Fume Extractor

,

CE Universal Wheels Solder Fume Extractor

,

2000Pa Fume Extraction Unit

Hand Soldering Mini-Pot Fume Purifier Grey Mental Cover Durable Universal Wheels Movable





Features:



1 Easy to set tp and use, do not need professionl to install, with replaceable filter,save more service life.

2.Low cost basis: as low as 1.85 yuan / day (8 hours / day)

3.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation

4, Multilayer filter design,make sure more thorogh purification

5.Noise canceling design,quieter working place





Instructions:



Power(W) 80
Dimension(mm) 420*245*400
Air Flow(m3/h) 235
Noise(db) <52
Voltage 110/220
No-load speed(r/min) 2000
Wind spped(m/s) 17
Weight(kg) 12
Negative pressure(pa) 2000


Advantages:





1.Compact design machine with 4 universal wheel under,easy to move and storage

2.Noise canceling design low noise,the volume is about ordinary speech,More quiet workshop.

3.Special alloy impeller, anti-corrosion, stable operation

4,Multilayer filter design,make sure more thorogh purification

5. Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)







FAQ



Q:Is the product influenced by the environment that affects the smoking effect?

A:Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking



Q:If the influence of fans and air conditioners is unavoidable, what methods can be used to solve the problem?

A:Use a smoking hood to block the influence of peripheral wind (air flow) on it



Q:How far is the smoke cover from the smoke point of the smoke purification system better?

A:Smoking cover (mouth) with the distance of unborn smoke point is better in 5-15 cm.



Q:Can the filter element be replaced separately?

A:Yes, each layer can be replaced independently



Q:Is it difficult to install the product? Do you need a professional to install it?

A:Small equipment refer to the manual, connected to the power supply can be used. No professional installation is required. Large equipment XL-3000/XL-5000 will be installed by professional personnel on site.





Product part picture:

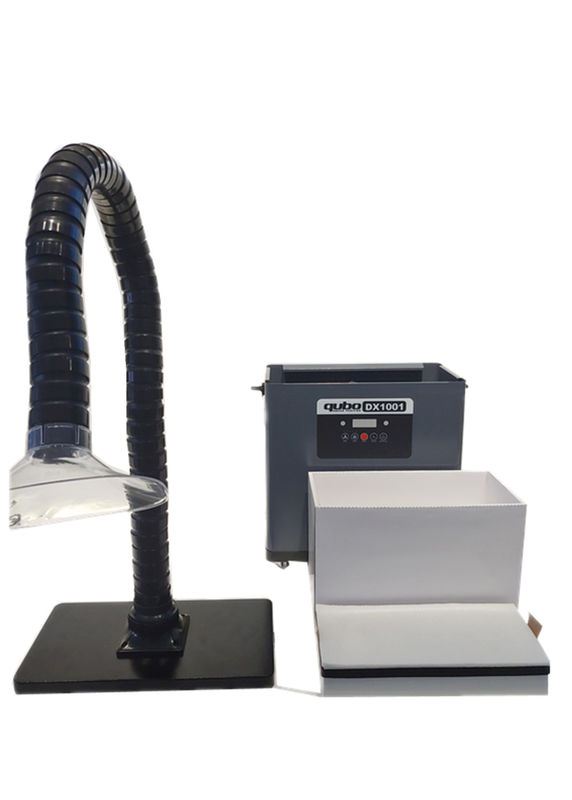

Durable 2000Pa Solder Fume Extractor Universal Wheels 0

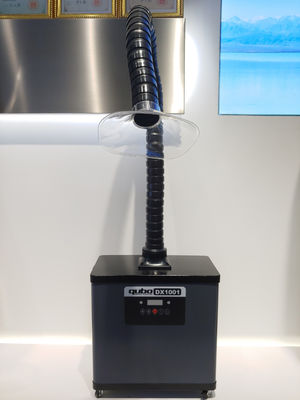

Durable 2000Pa Solder Fume Extractor Universal Wheels 1

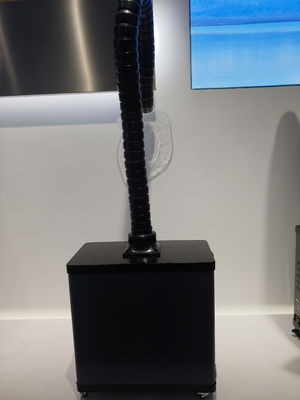

Durable 2000Pa Solder Fume Extractor Universal Wheels 2

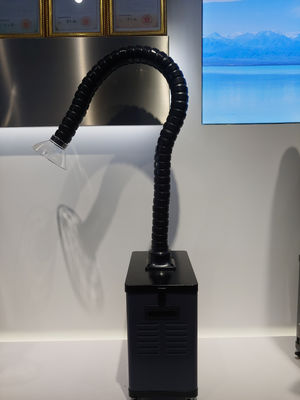

Durable 2000Pa Solder Fume Extractor Universal Wheels 3
