Firm 11kg Solder Fume Extractor Filter With Light Alarm

Firm 11kg Solder Fume Extractor Filter With Light Alarm

  • Firm 11kg Solder Fume Extractor Filter With Light Alarm
  • Firm 11kg Solder Fume Extractor Filter With Light Alarm
  • Firm 11kg Solder Fume Extractor Filter With Light Alarm
  • Firm 11kg Solder Fume Extractor Filter With Light Alarm
Firm 11kg Solder Fume Extractor Filter With Light Alarm
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Weight: 12kg Dimension: 340*265/480mm
Voltage: 110/220 V Application: Hand Welding Laser Marking
Warranty: 2 Years Power: 150w
Filter: 2 Layers Air Flow: 2*143 M3/H
Noise: 62db
High Light:

Firm Solder Fume Extractor Filter

,

11kg Solder Fume Extractor Filter

,

11kg Solder Air Filter

Hand Soldering Laser Marking Smoke Purifier Two Suction Port One For Two Station Durable Mental Frame





Features:





1.Multiple filtration ensures complete purification of harmful smoke and dust

2.Durable mental frame structure,firm and unshaped

3.Compact design machine with 4 universal wheel under,easy to move and storage

4, Multilayer filter design,make sure more thorogh purification

5.Noise canceling design low noise,the volume is about ordinary speech,More quiet workshop.





Instructions:



Power(W) 80
Dimension(mm) 340*265*480
Air Flow(m3/h) 220
Noise(db) <57
Voltage 110/220
No-load speed(r/min) 5800
Wind spped(m/s) 17
Weight(kg) 11
Negative pressure(pa) 1800


Advantages:



1.Multi layer filtration, rapid purification, filter failure sound and light alarm.

2.Low cost basis: as low as 1.85 yuan / day (8 hours / day)

3.wide range of application lasering welding beauty salon,has 4 whells easy to move and opreation4. Multi layer filtration, rapid purification, filter failure sound and light alarm.

5. Independent research and development of hall less brushless DC motor, high efficiency, long life, zero consumables and zero maintenance, support continuous 24-hour use.





FAQ:



Q:What are the application fields of your products?

A:Laser marking, laser welding, laser coding, laser cutting, laser cladding, laser cleaning, grinding, polishing, drilling and so on



Q:How does it work?

A:Physical principle: interception → activated carbon adsorption → clean air through layers of filters



Q:What is the approximate life of the product in continuous operation?

A:The motor life is 40,000 hours (continuous 24 hours) will not be broken, need to consider environmental factors. Usually for 4-5 years it won't be a problem



Q:What are the diameter specifications of smoking pipe?

A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.



Q:What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?

A:Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light,great looking, high temperature resistant, high price.

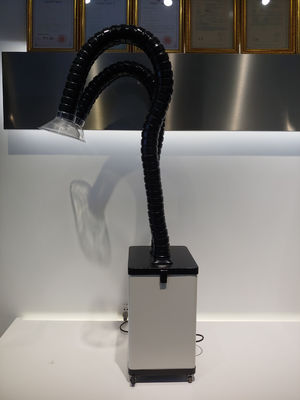

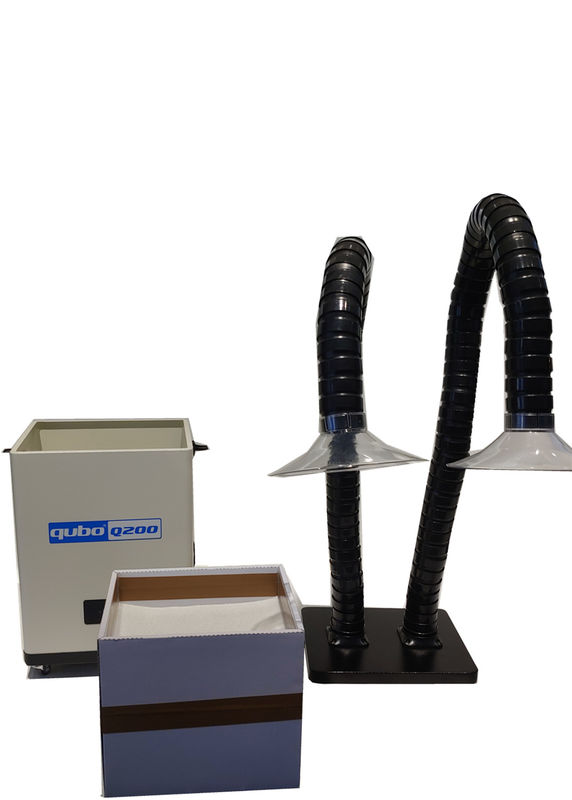

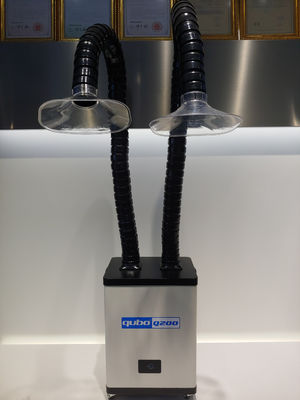

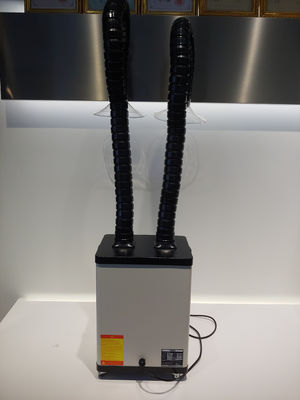

Product part picture:

Firm 11kg Solder Fume Extractor Filter With Light Alarm 0

Firm 11kg Solder Fume Extractor Filter With Light Alarm 1Firm 11kg Solder Fume Extractor Filter With Light Alarm 2
