Two Layers 5800r/Min Solder Fume Extractor Three Air Flow Adjustment

Two Layers 5800r/Min Solder Fume Extractor Three Air Flow Adjustment

  • Two Layers 5800r/Min Solder Fume Extractor Three Air Flow Adjustment
  • Two Layers 5800r/Min Solder Fume Extractor Three Air Flow Adjustment
  • Two Layers 5800r/Min Solder Fume Extractor Three Air Flow Adjustment
Two Layers 5800r/Min Solder Fume Extractor Three Air Flow Adjustment
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: TF-300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Noise: 52~57~59 Db Warranty: Two Years
Voltage: 110/220 V Filter: Two Layers
Power: 35/60/80W Application: Soldering, Welding
Air Flow: 75/100/110 M3/H Dimension: 300*270*300mm
Weight: 4.5kg
High Light:

Two Layers Solder Fume Extractor

,

5800r/Min Solder Fume Extractor

,

5800r/Min Soldering Fume Extractor

Welding Soldering Fume Extractor Three Air Flow Adjustment Max 80w Lightweight Movable Machine





Features:



1.Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)

2.Compact design machine with 4 universal wheel under,easy to move and storage

3.Removabel hook and cover,change the filter and check the filter condition easyier

4.Noise canceling design,quieter working place

5.Multiple filtration ensures complete purification of harmful smoke and dust



Instructions:



Power(W) 35/60/80
Dimension(mm) 300*270*300
Air Flow(m3/h) 75/100/110
Noise(db) <52/57/59
Voltage 110/220
No-load speed(r/min) 5800
Wind speed(M/S) 17
Weight(kg) 4.5
Negative pressure(pa) 1000-2000


Advantages:



1,Brushless DC moter,stable long service life

2.Durable mental frame structure,firm and unshaped

3.Noise canceling design,quieter working place

4.Noise canceling design,quieter working place

5.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation



FAQ:





Q:If the influence of fans and air conditioners is unavoidable, what methods can be used to solve the problem?

A:Use a smoking hood to block the influence of peripheral wind (air flow) on it



Q:How far is the smoke cover from the smoke point of the smoke purification system better?

A:Smoking cover (mouth) with the distance of unborn smoke point is better in 5-15 cm.



Q:Can the filter element be replaced separately?

A:Yes, each layer can be replaced independently



Q:Is it difficult to install the product? Do you need a professional to install it?

A:Small equipment refer to the manual, connected to the power supply can be used. No professional installation is required. Large equipment XL-3000/XL-5000 will be installed by professional personnel on site.





Q:Is the purified air discharged indoors or outdoors?

A:Both indoor and outdoor, according to your requirements, usually indoor, our products are in line with the indoor emission standards.

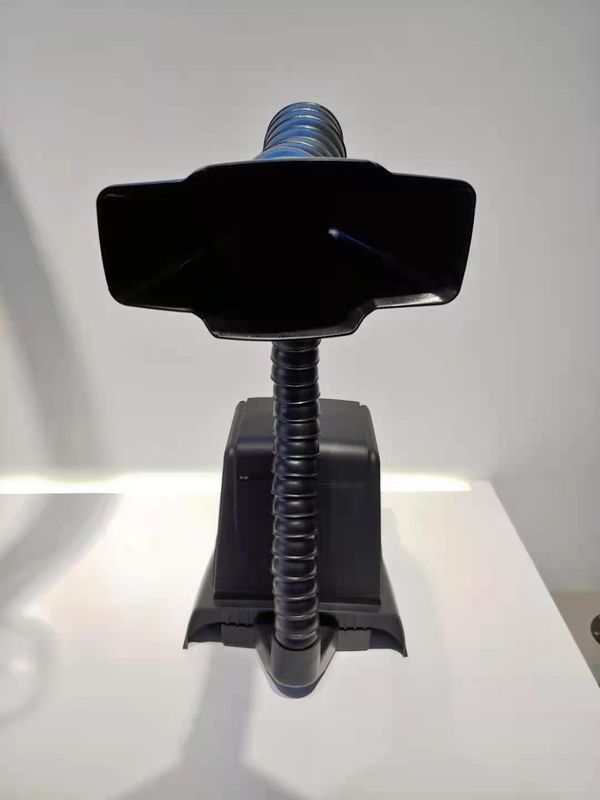

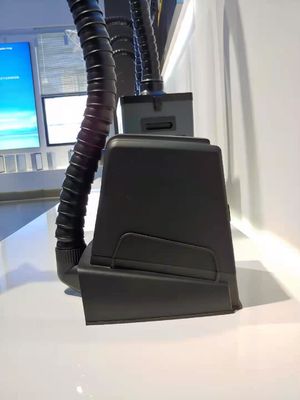

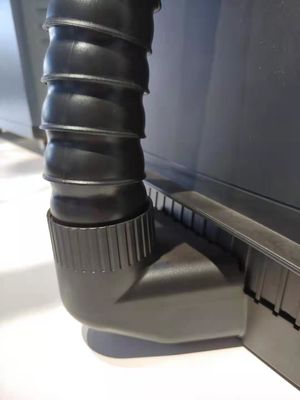

Product part picture:



Two Layers 5800r/Min Solder Fume Extractor Three Air Flow Adjustment 0Two Layers 5800r/Min Solder Fume Extractor Three Air Flow Adjustment 1



Two Layers 5800r/Min Solder Fume Extractor Three Air Flow Adjustment 2Two Layers 5800r/Min Solder Fume Extractor Three Air Flow Adjustment 3
