Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob

Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob

  • Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob
  • Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob
  • Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob
Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: X1002
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Power: 200w Noise: <55 Db
Weight: 13 Kg Application: Welding Heat-gun Handling
Dimensions: 420*245*400mm Filter: 3 Layers
Air Flow: 150*2m3/h
High Light:

11.5m/S Welding Exhaust Fume Extractor

,

Stepless Knob Welding Exhaust Fume Extractor

,

11.5m/S Mobile Welding Fume Extractor

Hand Welding Soldering Fume Extractor two Air inlet portable mental cover Stepless knob



Features:



1.High negative pressure, high flow, small volume, light weight, easy installation, flexible filter replacement.

2.Multi layer filtration, rapid purification, filter failure sound and light alarm.

3.Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)

4.Low cost basis: as low as 1.85 yuan / day (8 hours / day)5. Independent research and development of hall less brushless DC motor, high efficiency, long life, zero consumables and zero maintenance, support continuous 24-hour use.



Instructions:



Power(W) 200
Dimension(mm) 420*245*400
Air Flow(m3/h) 150*2
Noise(db) <55
Voltage 110/220
No-load speed(r/min) 4500
Wind spped(m/s) 11.5*2
Weight(kg) 13
Negative pressure(pa) 2200


Advantages:



1.Removabel hook and cover,replace the filter and check the condition easyier

2.Durable mental frame structure,firm and unshaped

3.Compact design machine with 4 universal wheel under,easy to move and storage

4 Various types of materials make you have more choices to smole hood,silicone hood acrylic hood alloy hood

5. Independent research and development of hall less brushless DC motor, high efficiency, long life, zero consumables and zero maintenance, support continuous 24-hour use.





FAQ









Q:When the filter element needs to be replaced, will it give an alarm?

A:The indicator light of digital display control panel will flash red light and give out alarm sound.



Q:Can the pipe of smoke and dust move back and forth with the laser head?

A:In principle, it can, but it can't if auxiliary gas is needed



Q:Can water cutting match your purifier?

A:No, because the humidity of the gas and dust inhaled by the air inlet is 40% - 80%, too high humidity will cause the filter element to fail quickly and the circuit inside the machine to be damaged.



Q:Can the filter element / collection bag / drum be washed?

A:No, because most particles are insoluble in water



Q:In the case of cutting hard materials, will the small pieces cut be filtered?

A:No, the purifier is equipped with stainless steel fire net, so the small pieces can't enter the interior of the purifier.







Product part picture:

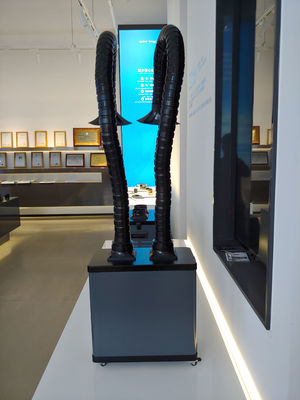

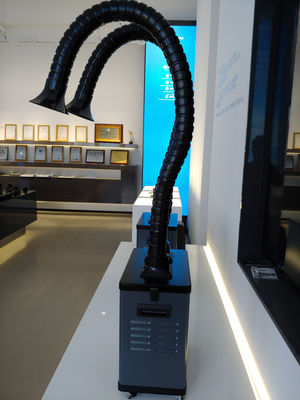

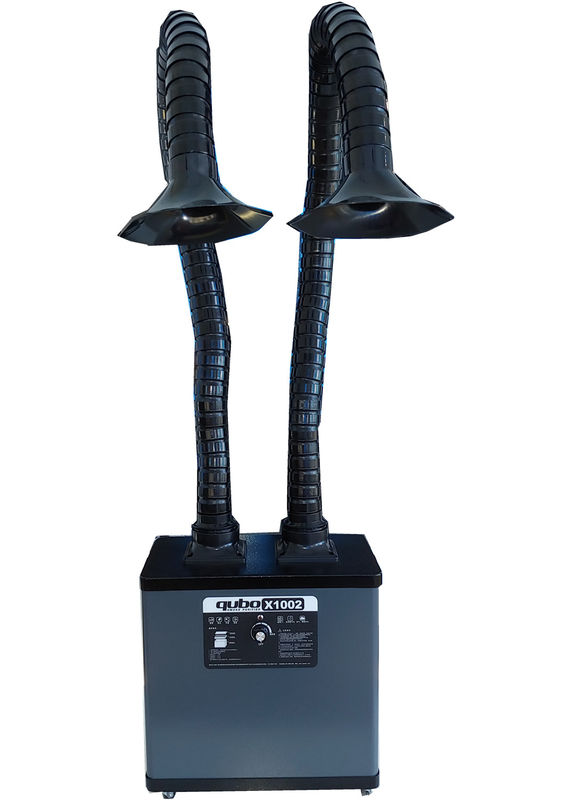

Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob 0Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob 1Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob 2Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob 3Two Air Inlet 11.5m/s Welding Exhaust Fume Extractor Stepless Knob 4
