Microcomputer Chip Control Laser Soldering Fume Extractor 80W

Microcomputer Chip Control Laser Soldering Fume Extractor 80W

Microcomputer Chip Control Laser Soldering Fume Extractor 80W
Microcomputer Chip Control Laser Soldering Fume Extractor 80W
Microcomputer Chip Control Laser Soldering Fume Extractor 80W
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FDM1001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Warranty: 2 Years Color: Customized
Type: Fume Extractor Application: Soldering
Power: 80W Voltage: 110/220 V
Wire Diameter: 1-2 M Weight: 13kgs
High Light:

Microcomputer Chip Control Soldering Fume Extractor


Soldering Fume Extractor 80W


Microcomputer Chip Control Laser Fume Extractor

Soldering Fume Extractor For Laser Marking Engraving Machine With 3 Layers of Filter





1, Metal body structure, strong and durable;

2, Noise reduction design, quiet operation;

3, Four layers-filter design ensures thorough purification;

4, High-quality alloy fan achieves great suction power;

5, With the remote control, control from a distance




Model FDM1001 FDM1002
Filter layers (p) 4 4
Weight (kg) 12.5 14
Dimension(L*W*H) 420*250*410 420*250*410
Air flow (m³/h) 235 2*150
Noise level (db) <52 <55
Power(w) 80 200
Voltage (v) 110/220 110/220


Consumption filters (Calculated according to 8h daily working time)

First layer

Replacement cycle

Pre- Filter

(washable and repeatable )

Second layer

Replacement cycle

Oil absorption Filter

Replacement @1-3 months

Third layer

Replacement cycle

Middle Filter

Replacement @ 3-5 months

Fourth layer

Replacement cycle

High Efficiency Filter (Active Carbon)

Replacement @ 3-6 months

Product instruction:

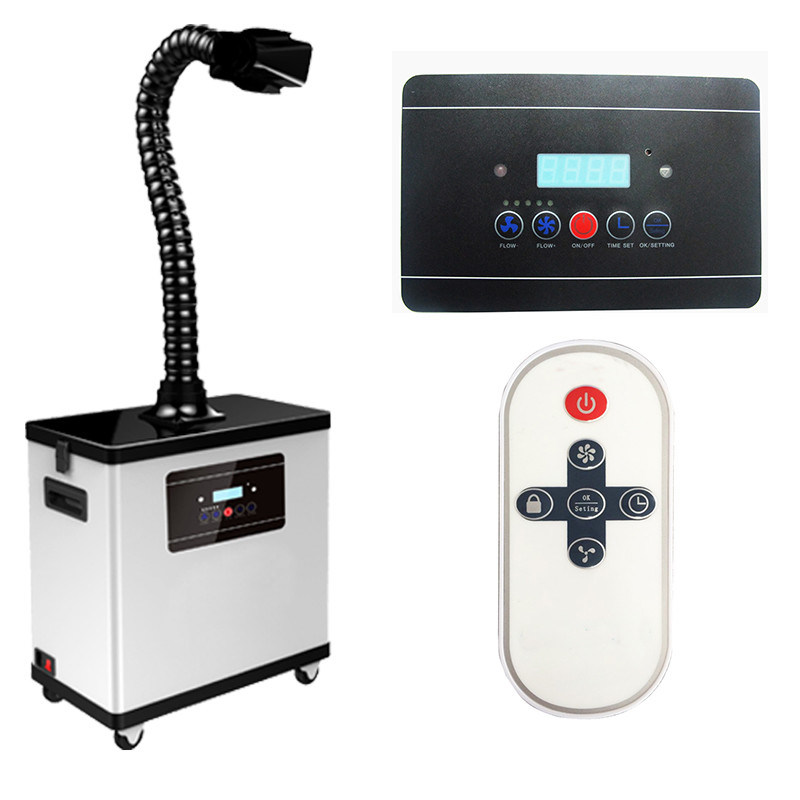

1, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

2, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

3, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;

4, Saving energy and cost, lower noise and larger suction power;

5, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

6, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.




Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price. Whats more, Our product have several layers of filters and special active carbon filter which can highly remove bad smells and

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life. We have 8 years after-sales warranty.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q: Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

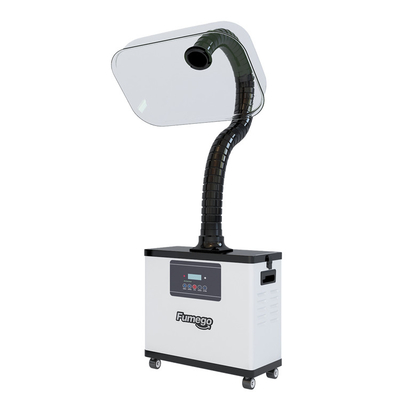

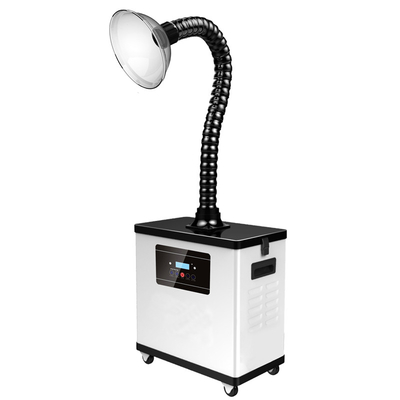

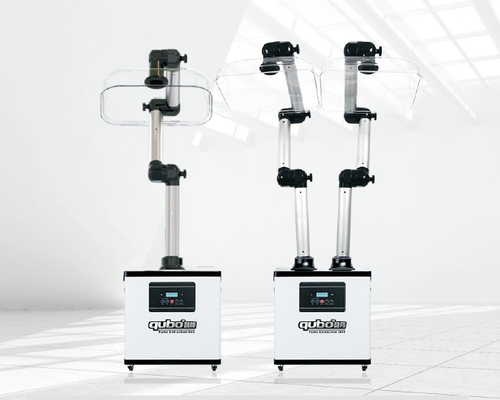

Product picture:


Microcomputer Chip Control Laser Soldering Fume Extractor 80W 0
