Place of Origin: | China |
Brand Name: | Fumego Qubo |
Certification: | CE ROHS |
Model Number: | FDL1002 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Carton box package |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100pcs per week |
Keyword: | Welding Arm Fume Extractor | Power: | 200 W |
---|---|---|---|
Noise: | 55 Db | Warranty: | 2 Years |
Voltage: | 110/220 V | Material: | Alloy Material Mental Shell |
Weight: | 13 KG | Name: | Soldering Fume Extractor |
Type: | Industrial Fume Extractor | Air Flow: | 150M3/H * 2 |
High Light: | 200W Soldering Fume Extractor,Soldering Fume Extractor 55 DB,200 W Laser Fume Extractor |

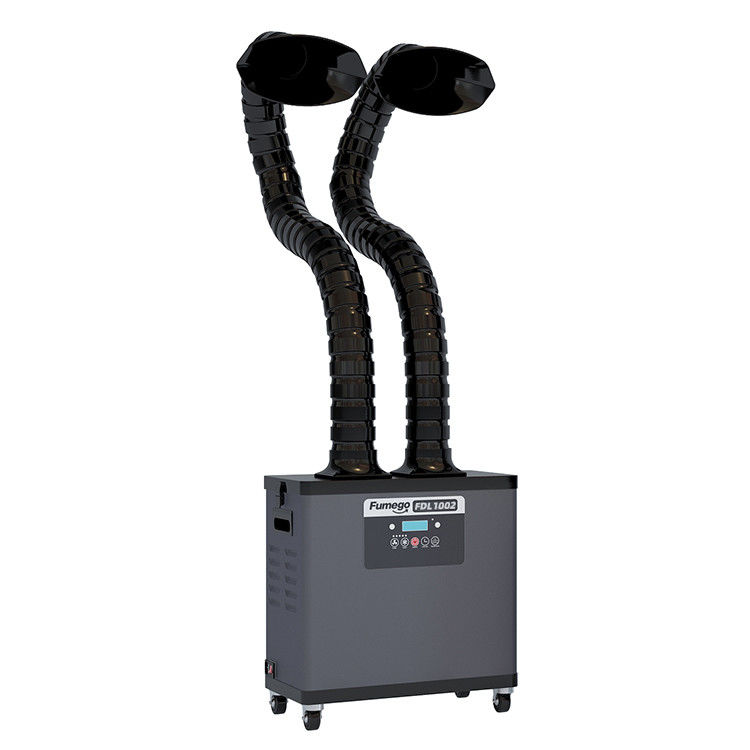

Qubo Soldering Fume Extractor With 2 Suction Pipes For Laser Marking Engraving Machine
Advantages:
1, Imported integrated AC fan, stable performance and longer life;
2, Portable because it assemble with 4 wheels;
3, High negative pressure;
4, The machine is in a very small dimension, never occupying space;
5, No need to assemble, plug and turn it on, start to work;
6, The filter element adopts a return structure and can hold dust on all sides;
7, The fan speed is adjustable, timing function to turn on and off, and remote control;
Specifications:
Model | Fume extractor FDL1002 |
Power | 200 W |
Air flow | 150 m³/h * 2 |
Dimension | 420*245*400 mm |
Voltage | 110/220 V |
Noise | 55 db |
Weight | 13kg |
Filters | 3 layers |
Size and Frequency to replace | |
Pre-filter | 365*180*25 mm 7-60 days |
Middle filter | 360*170*55 mm 3-6 months |
HEPA filter | 385*195*250mm 3-6 months |
Usage | Manual soldering, small Laser machine and Soldering robot |
Instructions:
1, Layers of different filters, clean air fasters and more efficient;
Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.
2, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
3, All mental material shell, durable and sturdy;
4, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.
5, Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution.
6, Using noise reduction structure design, to keep working environment quiet;
FAQ:
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price. Whats more, Our product have several layers of filters and special active carbon filter which can highly remove bad smells and
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Why choose Fumego?
A: Lower using cost and longer machine life. We have 8 years after-sales warranty.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
Q: Do you do OEM?
A: Yes
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.
Q: Why should we use fume extractor?
A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.
Product picture:
