Place of Origin: | China |
Brand Name: | Fumego Qubo |
Certification: | CE ROHS |
Model Number: | TF-300 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Carton box package |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100pcs per week |
Noise: | 52~57~59 Db | Warranty: | Two Years |
---|---|---|---|
Voltage: | 110/220 V | Filter: | Two Layers |
Power: | 35/60/80W | Application: | Soldering, Welding |
Air Flow: | 75/100/110 M3/H | Dimension: | 300*270*300mm |
Weight: | 4.5kg | ||
High Light: | 80W Tabletop Fume Extractor,Microcomputer Chip Control Tabletop Fume Extractor,Tabletop Mini Fume Extractor |
Mini Size 80w Adjustable Two Layers Table Fume Extractor For Hand Soldering
Features:
1. Multilayer filter design,make sure more thorogh purification
2. Compact design machine with 4 universal wheel under,easy to move and storage
3. Removabel hook and cover,change the filter and check the filter condition easyier
4. Soldering mini pot heat gun treatment
5. Brushless DC moter,stable long service life
Instructions:
Power(W) | 35/60/80 |
Dimension(mm) | 300*270*300 |
Air Flow(m3/h) | 75/100/110 |
Noise(db) | <52/57/59 |
Voltage | 110/220 |
No-load speed(r/min) | 5800 |
Wind speed(M/S) | 17 |
Weight(kg) | 4.5 |
Negative pressure(pa) | 1000-2000 |
Advantages:
1, Durable plastic frame structure lightweight and movable
2. Durable mental frame structure,firm and unshaped
3. Intergrated ac fan,high negative pressure
4. Microcomputer chip control, safe and efficient, stable and durable
5. Noise canceling design,quieter working place
FAQ:
Question: what does Fumego Purification Technology Co., Ltd. do?
A: It is a national high-tech enterprise specializing in R & D, manufacturing and sales of environmental air purifier. The main production of smoke filter purifier, Odor Eliminator, air purifier, dust collector and other products.
Q: What are the application areas of the product?
A: In the field of electronic soldering; Laser processing field; Moxibustion ; Our products can handle any place with smoke and smell.
Q: what are the main components of the product?
A: motor, controller, power supply, chassis, smoking tube, smoking hood, filter element, etc
Q: what is the working principle of the smoke filter?
A: physical interception filtration + activated carbon adsorption
Q: What is the difference between smoke filter and air purifier?
A: the principle is the same, but the application fields are different. The design standard of smoke purifier is more rigorous, because the smoke purifier focuses on filtering smoke, dust, harmful gases, etc; And household purifier is focused on filtering air, there is a big difference. But the principle is basically the same, the level are much higher.
Q: will the cost of smoke purifier be lower than that of ducted exhaust fan (direct exhaust exhaust fan)?
A: the daily electricity charge for one station of exhaust fan is 3-5 yuan, and the daily cost of purifier is 1.85 yuan (feedback from Changan Rihua electronics factory and Zhangmutou Bosch laser). If it is a comprehensive consideration, the initial investment cost of smoke purifier is higher, but the comprehensive use cost is cheaper. You can refer to the report of comparison between ducted exhaust fan and smoke filter commissioned by a third party.
Q: What are the advantages of smoke purifier compared with ducted exhaust fan?
A: there are many advantages, such as: (1) clean air quality; (2) energy saving and power saving; (3) easy installation and flexible mobile use, which one needs to be opened; (4) low cost; (5) reduce the occurrence of diseases and major diseases, And health is priceless (6) reduce bad smell (7) reduce dust and other harmful substances (8) reduce noise nuisance (9) reduce fire safety hazards (10) meet the requirements of national environmental protection, can pass the EIA test
Q: how long is the service life of a smoke purifier?
A: the life of the motor is 20000 hours (continuous 24 hours) and it will not break down. Under normal circumstances, it usually can work 8-10years
Q: what is the hourly purification capacity of the smoke purifier? How to calculate it?
A: each model is different (please refer to the parameters of smog device for details)

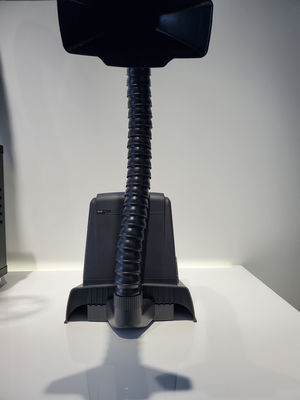

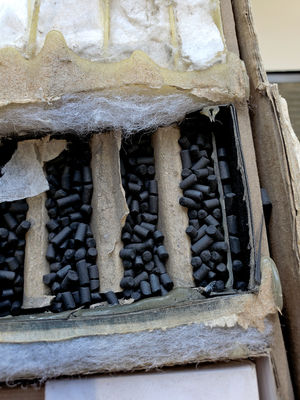

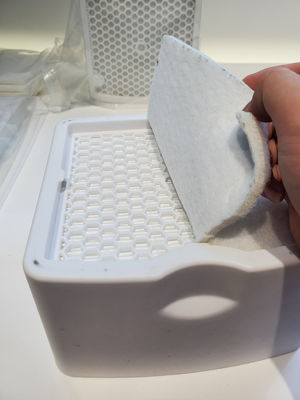

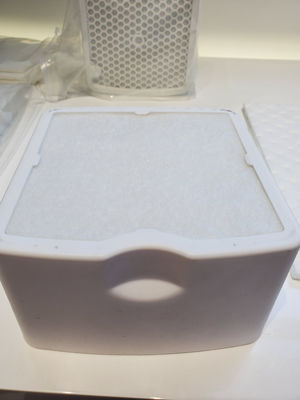

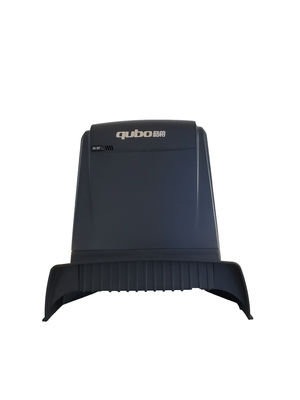

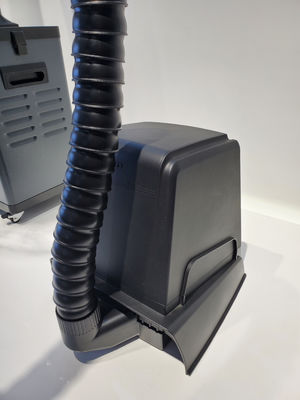

Product part picture:
