| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | Q100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Dimension: | 340*265*480mm | Noise: | 57db |
|---|---|---|---|
| Voltage: | 110/220 V | Filter: | 2 Layers |
| Air Flow: | 220 M3/H | Power: | 80w |
| Weight: | 11kg | Application: | Soldering, Laser Cutting, |
| Warranty: | 2 Years | ||
| High Light: | 1800pa Solder Fume Extractor,Low Noise 57dB Solder Fume Extractor,1800pa Welding Fume Collector |
||
Laser Welding Marking Fume Extractor Durable Mental Frame Structure Replaceable Filters
Features:
1.Rapid purification by multi-layer filtration
2.Universal smoking arm, random orientation positioning
3.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation
4. All three filters can be replaced separately
5.Special alloy impeller, anti-corrosion, stable operation
Instructions:
| Power(W) | 80 |
| Dimension(mm) | 340*265*480 |
| Air Flow(m3/h) | 220 |
| Noise(db) | <57 |
| Voltage | 110/220 |
| No-load speed(r/min) | 5800 |
| Wind spped(m/s) | 17 |
| Weight(kg) | 11 |
| Negative pressure(pa) | 1800 |
Advantages:
1.Multi layer filtration, rapid purification, filter failure sound and light alarm
2.Noise canceling design low noise,only the volume of ordinary speech,More quiet workshop, reduce the surrounding complaints.
3.Portable tube and hood,choice suitable accessories, various specifications tube various materials hood.
4.Durable mental frame structure,firm and unshaped,small footprint
5.Removabel hook and cover,change the filter and check the filter condition easyier
FAQ:
Q:How long is the tube standard configuration?
A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).
Q:Can smoking pipes be shortened or lengthened at will?
A:It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)
Q:What are the diameter specifications of smoking pipe?
A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.
Q:What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?
A:Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light,great looking, high temperature resistant, high price.

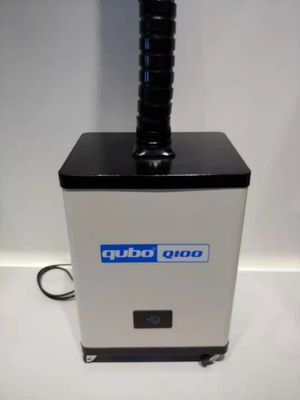

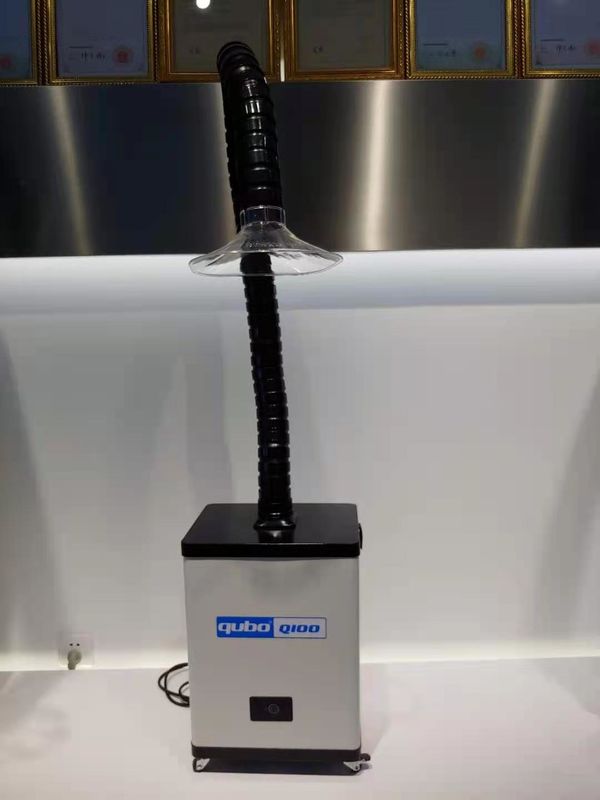

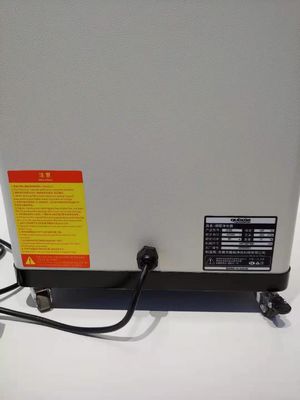

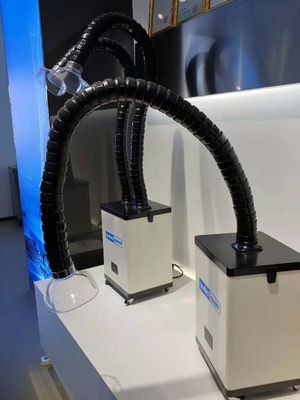

Product part picture:
