| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | Q200 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Application: | Laser Marking Cutting | Weight: | 12kg |
|---|---|---|---|
| Warranty: | 2 Years | Air Flow: | 2*143 M3/H |
| Voltage: | 110/220 V | Noise: | 62db |
| Filter: | 2 Layers | Power: | 150w |
| Dimension: | 340*265/480mm | ||
| High Light: | 150W Solder Smoke Extractor,17m/S Solder Smoke Extractor,17m/S Solder Smoke Filter |
||
Laser Engraving Marking Cutting Fume Extractor Double Suction Tube Durable Mental Frame
Features:
1.Noise canceling design,quieter working place
2.Brushless DC moter,stable long service life
3.Multilayer filter design,make sure more thorogh purification
4,.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation
5,Multiple filtration ensures complete purification of harmful smoke and dust
Instructions:
| Power(W) | 80 |
| Dimension(mm) | 340*265*480 |
| Air Flow(m3/h) | 220 |
| Noise(db) | <57 |
| Voltage | 110/220 |
| No-load speed(r/min) | 5800 |
| Wind spped(m/s) | 17 |
| Weight(kg) | 11 |
| Negative pressure(pa) | 1800 |
Advantages:
1.Multi layer filtration, rapid purification, filter failure sound and light alarm.
2.Low cost basis: as low as 1.85 yuan / day (8 hours / day)
3. Independent research and development of hall less brushless DC motor, high efficiency, long life, zero consumables and zero maintenance, support continuous 24-hour use.
4. High negative pressure, high flow, small volume, light weight, easy installation, flexible filter replacement.
5.Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)
FAQ:
Q:Under what circumstances are returns not allowed?
A:Damaged appearance or packaging, beyond the probation period (usually 3 days) is not allowed to return.
Q:Is it difficult to maintain?
A:Check whether the pipe and interface are sealed, and replace the filter element regularly.
Q:Can it be used in extremely humid or corrosive environment?
A:No, because in a particularly humid environment, moisture or corrosive gas will damage the filter element and the internal components of the machine; but usually in spring, humid weather, such as "southerly days", will not affect the use.
Q:Can it be used in high temperature environment?
A:The high temperature should be divided into instantaneous high temperature and long-term high temperature, the temperature within 60 degrees can be used; the temperature over 60 degrees for a long time is not recommended, because it may lead to fire.
Q:When the filter element needs to be replaced, will it give an alarm?
A:The indicator light of digital display control panel will flash red light and give out alarm sound.

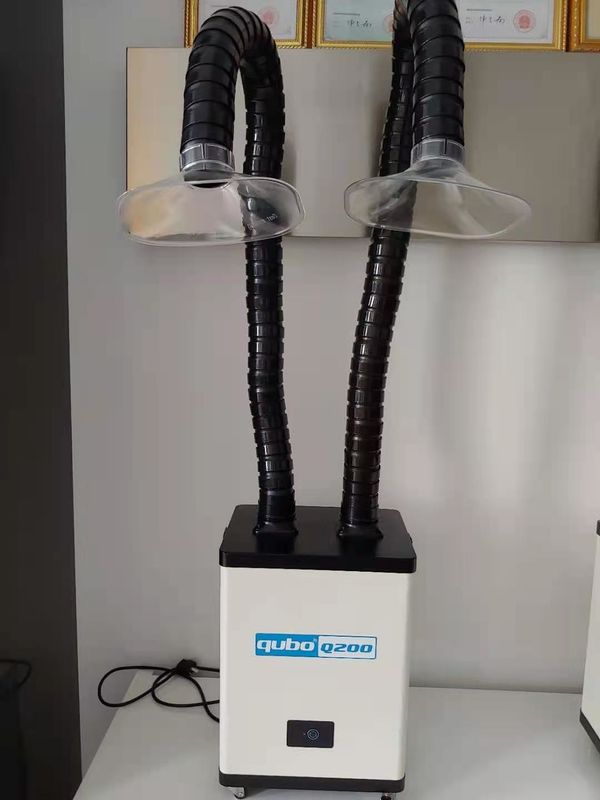

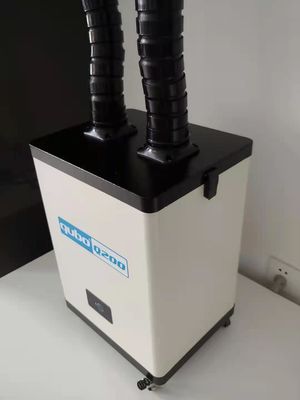

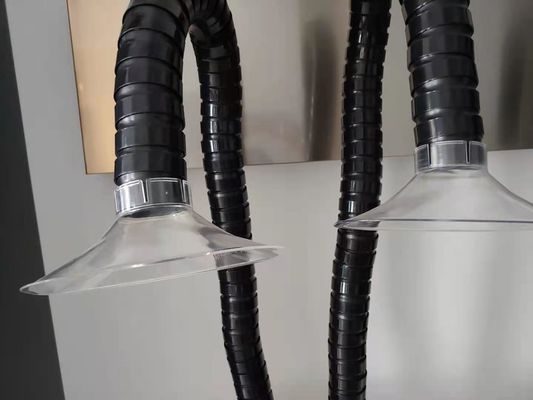

Product part picture:
