300W 2200pa Solder Fume Extractor Mental Shell

300W 2200pa Solder Fume Extractor Mental Shell

  • 300W 2200pa Solder Fume Extractor Mental Shell
  • 300W 2200pa Solder Fume Extractor Mental Shell
  • 300W 2200pa Solder Fume Extractor Mental Shell
300W 2200pa Solder Fume Extractor Mental Shell
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL-400W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, D/A, D/P, L/C
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Filter: 6 Layer Weight: 37 Kg
Voltage: 110/220 V Negative Pressure: 2200 Pa
Noise: 64 Db Air Flow Speed: 10.5*2 M/s
Power: 300W Material: Mental Shell
High Light:

2200pa Solder Fume Extractor


300W Solder Fume Extractor


2200pa Smoke Absorber Machine

Portable Smoke Absorber Machine Small Laser Welding Fume Purifier Extractor





1, Layers of different filters, clean air fasters and more efficient;

Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

2, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;

3, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

4, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

5, Portable because it assemble with 4 wheels;

6, High negative pressure;


Size of Filter (can be customized)


protection net

Primarry filter 365*180*25mm
PP Medium filter 365*175*55mm
Glass fiber filter 365*175*55mm*2

Activated carbon


360*195*250mm *3




Model FL-400W
Filter 6 Layers
Weight 36.7kg



Air Flow 480m³/h
Noise <64dB
Power 300W
Voltage AC 110-220V
No load Speed 6500rpm
Air Speed 10.5*2m/s
Negative pressure 2200Pa
Air inlet port 2*75mm




1, All mental material shell, durable and sturdy;

2, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

3, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;

4, Saving energy and cost, lower noise and larger suction power;

5, The machine is in a very small dimension, never occupying space;

6, No need to assemble, plug and turn it on, start to work;




Q: Where is your factory for fume extractor?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.


Product picture:

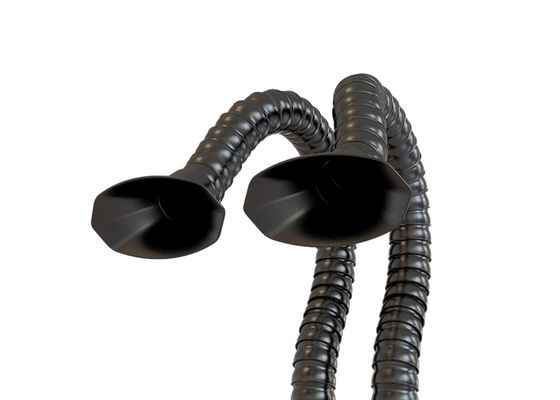

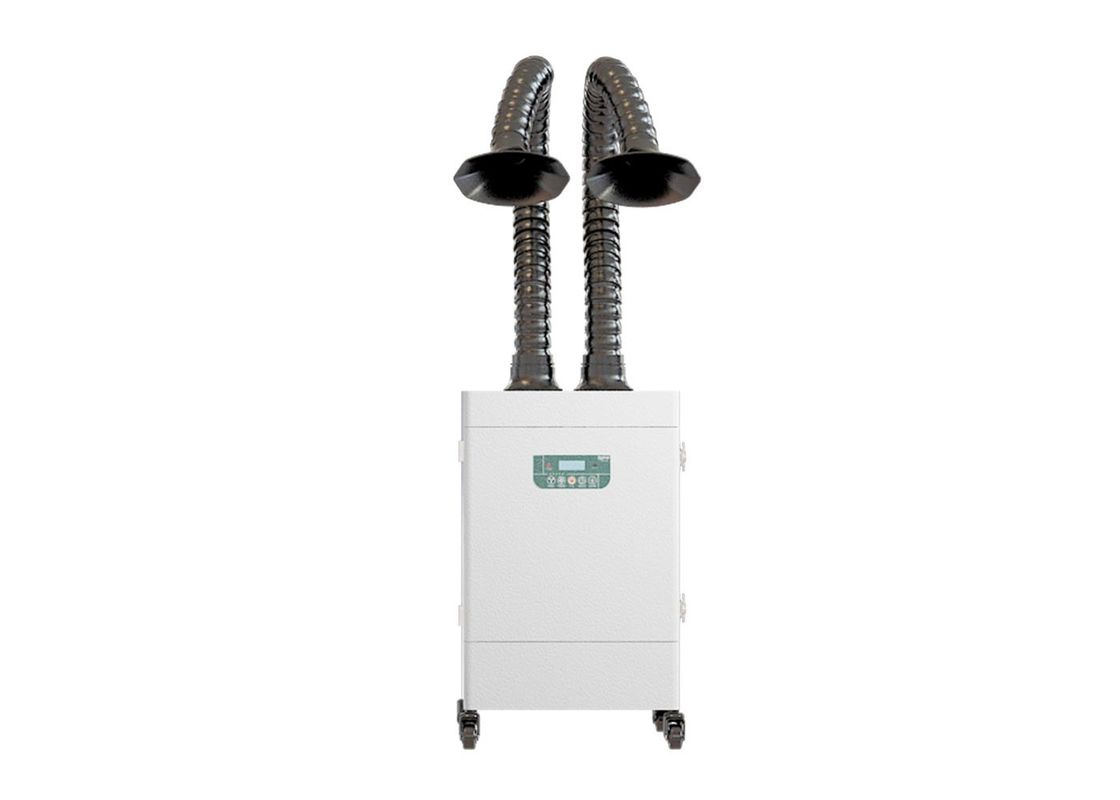

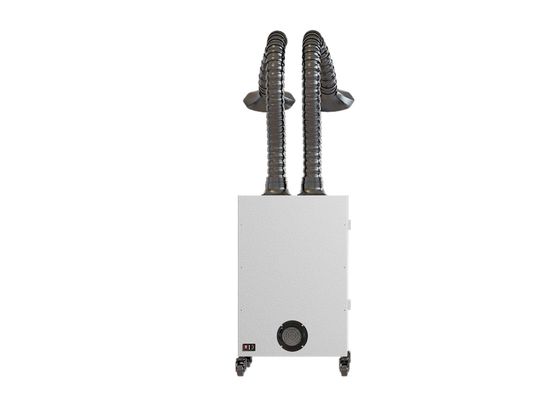

300W 2200pa Solder Fume Extractor Mental Shell 0
