Single Suction Arm 80W Solder Fume Extractor 235m3/h

Single Suction Arm 80W Solder Fume Extractor 235m3/h

Single Suction Arm 80W Solder Fume Extractor 235m3/h
Single Suction Arm 80W Solder Fume Extractor 235m3/h
Single Suction Arm 80W Solder Fume Extractor 235m3/h
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FDL1001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Power: 80W Noise: <52
Warranty: 2 Years Weight: 12 Kg
Application: Manual Soldering Material: Mental Body Shell
Air Volume: 235 M³/h Voltage: 110V/220V
Keyword: Soldering Fume Extractor Color: Grey With Black
High Light:

235m3/H Solder Fume Extractor


80W Solder Fume Extractor


80W Portable Fume Extractor

Portable Fume Extractor Single Suction Arm Laser Soldering Welding Smoke Absorber





1, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

2, Using noise reduction structure design, to keep working environment quiet.

3, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

4, Assembled with DC brushless motor, which will have more stable performance and longer life;

5, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

6, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.




Model Fume extractor FDL1001
Power 80 W
Air flow 235 m³/h
Dimension 420*245*400 mm
Voltage 110/220 V
Noise 52 db
Weight 12 kg
Filters 3 layers
Size and Frequency to replace Size and Frequency to replace
Pre-filter 365*180*25 mm  7-60 days
Middle filter 360*170*55 mm  3-6 months
HEPA filter 385*195*250mm 3-6 months
Usage Manual soldering, small Laser machine




1, Portable because it assemble with 4 wheels;

2, High negative pressure;

3, The machine is in a very small dimension, never occupying space;

4, No need to assemble, plug and turn it on, start to work;

5, The filter element adopts a return structure and can hold dust on all sides;

6, The fan speed is adjustable, timing function to turn on and off, and remote control;




Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube,.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

Q: How long will the machine keep work?

A: At least 8 years.


Product picture:

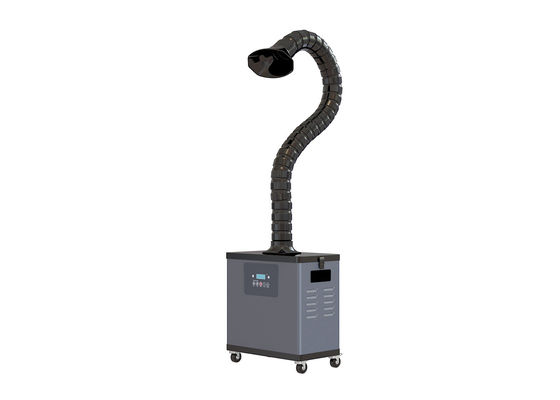

Single Suction Arm 80W Solder Fume Extractor 235m3/h 0

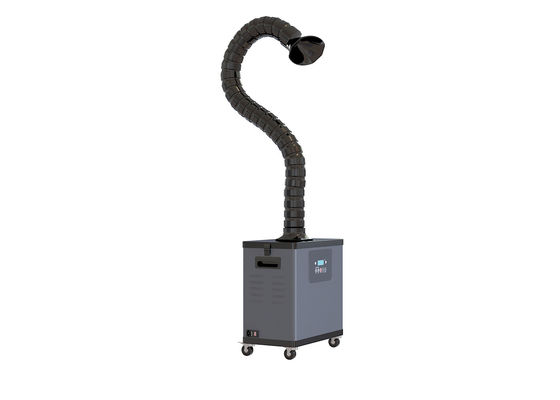

Single Suction Arm 80W Solder Fume Extractor 235m3/h 1
