Home ProductsHEPA Fume Extractor

Observing Window 2500pa HEPA Fume Extractor Openable Cover

Observing Window 2500pa HEPA Fume Extractor Openable Cover

Observing Window 2500pa HEPA Fume Extractor Openable Cover
Observing Window 2500pa HEPA Fume Extractor Openable Cover
Observing Window 2500pa HEPA Fume Extractor Openable Cover
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q480
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Noise: <70 Db Filter: 1 Layer
Application: Polishing Cutting Weight: 42 Kg
Dimensions: 550*415*920 Mm Air Flow: 480m3/h
Power: 350w
High Light:

Observing Window HEPA Fume Extractor


2500pa HEPA Fume Extractor

Polishing Cutting Dust Collector Observing Window Noise Canceling Front Cover Door Durable Portable Machine




1.Rapid purification by multi-layer filtration

2.Universal smoking arm, random orientation positioning

3.Special alloy impeller, anti-corrosion, stable operation

4. Filters can be replaced separately




Power(W)  350w
Dimension(mm) 550*415*920
Air Flow(m3/h) 480
Noise(db) <70
Voltage 110/220
No-load speed(r/min) 4200
Wind spped(m/s) 21
Weight(kg) 42
Negative pressure(pa) 2500



1.Multi layer filtration, rapid purification, filter failure sound and light alarm.

2.Noise canceling design,quieter working place

3.Compact design machine with 4 universal wheel under,easy to move and storage

4, Multilayer filter design,make sure more thorogh purification

5,Brushless DC moter,stable long service life






Q:Under what circumstances are returns not allowed?

A:Damaged appearance or packaging, beyond the probation period (usually 3 days) is not allowed to return.


Q:Is it difficult to maintain?

A:Check whether the pipe and interface are sealed, and replace the filter element regularly.


Q:Can it be used in extremely humid or corrosive environment?

A:No, because in a particularly humid environment, moisture or corrosive gas will damage the filter element and the internal components of the machine; but usually in spring, humid weather, such as "southerly days", will not affect the use.


Q:Can it be used in high temperature environment?

A:The high temperature should be divided into instantaneous high temperature and long-term high temperature, the temperature within 60 degrees can be used; the temperature over 60 degrees for a long time is not recommended, because it may lead to fire.


Q:When the filter element needs to be replaced, will it give an alarm?

A:The indicator light of digital display control panel will flash red light and give out alarm sound.


Q:Can the pipe of smoke and dust move back and forth with the laser head?

A:In principle, it can, but it can't if auxiliary gas is needed


Q:Can water cutting match your purifier?

A:No, because the humidity of the gas and dust inhaled by the air inlet is 40% - 80%, too high humidity will cause the filter element to fail quickly and the circuit inside the machine to be damaged.

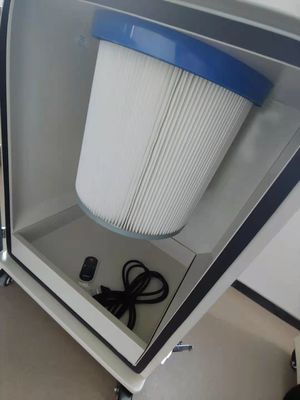

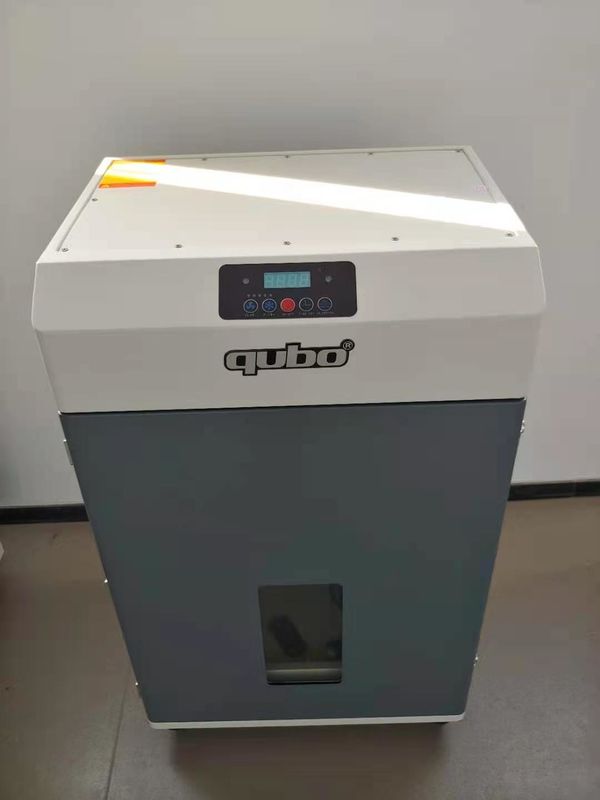

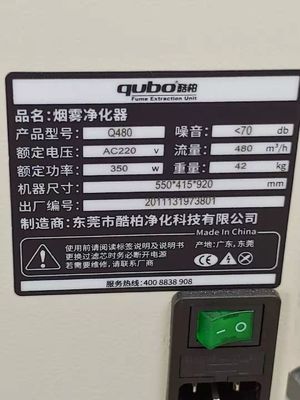

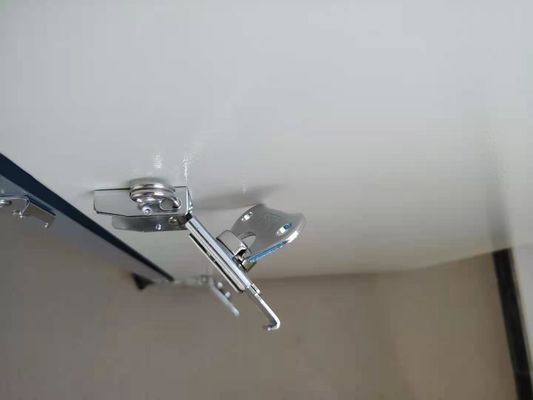

Product part picture:


Observing Window 2500pa HEPA Fume Extractor Openable Cover 0Observing Window 2500pa HEPA Fume Extractor Openable Cover 1Observing Window 2500pa HEPA Fume Extractor Openable Cover 2
