Fumego 4200r/Min Solder Fume Filter With HEPA Filters

Fumego 4200r/Min Solder Fume Filter With HEPA Filters

Fumego 4200r/Min Solder Fume Filter With HEPA Filters
Fumego 4200r/Min Solder Fume Filter With HEPA Filters
Fumego 4200r/Min Solder Fume Filter With HEPA Filters
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Noise: <70 Db Air Flow: 500m3/h
Filter: 8 Layers Dimensions: 550*430*920mm
Warranty: 2 Years Application: Laser Marking Welding
Power: 450w Weight: 60 Kg
High Light:

4200r/Min Solder Fume Filter


HEPA Filters Solder Fume Filter


4200r/Min HEPA Solder Fume Extractor

Fume Extractor For Medium Laser Marking Engraving Soldering Openable Cover With HEPA Filters




1, Special alloy impeller, anti-corrosion, stable operation

2.We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;

3.Compact design machine with 4 universal wheel under,easy to move and storage

4,Universal smoking arm, random orientation positioning

5.9 layers filters can be separate replace,high efficient sterilization




Power(W) 350
Dimension(mm) 550*415*920
Air Flow(m3/h) 450
Noise(db) <70
Voltage 110/220
No-load speed(r/min) 4200
Wind spped(m/s) 19
Weight(kg) 52.5
Negative pressure(pa) 2500



1.High negative pressure, high flow, small volume, light weight, easy installation, flexible filter replacement.

2.Multi layer filtration, rapid purification, filter failure sound and light alarm.

3.Independent research and development of hall less brushless DC motor, high efficiency, long life, zero consumables and zero maintenance, support continuous 24-hour use.

4.Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)

5.Replaceable tube and hood,choice suitable accessories, various specifications tube and materials hood.







Q:Under what circumstances can I return it?

A: the same quality problem has not been solved for more than 4 times, we can return it.


Q:Under what circumstances are returns not allowed?

A:Damaged appearance or packaging, beyond the probation period (usually 3 days) is not allowed to return.


Q:Is it difficult to maintain?

A:Check whether the pipe and interface are sealed, and replace the filter element regularly.


Q:Can it be used in extremely humid or corrosive environment?

A:No, because in a particularly humid environment, moisture or corrosive gas will damage the filter element and the internal components of the machine; but usually in spring, humid weather, such as "southerly days", will not affect the use.


Q:Can it be used in high temperature environment?

A:The high temperature should be divided into instantaneous high temperature and long-term high temperature, the temperature within 60 degrees can be used; the temperature over 60 degrees for a long time is not recommended, because it may lead to fire.


Q:When the filter element needs to be replaced, will it give an alarm?

A:The indicator light of digital display control panel will flash red light and give out alarm sound.

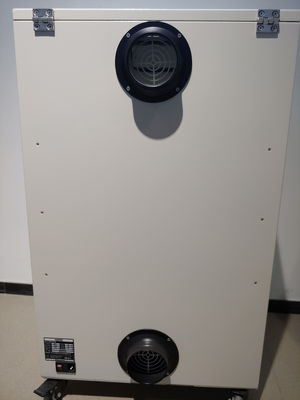

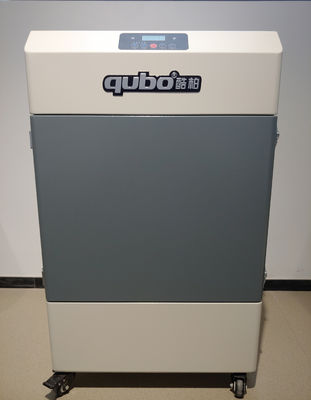

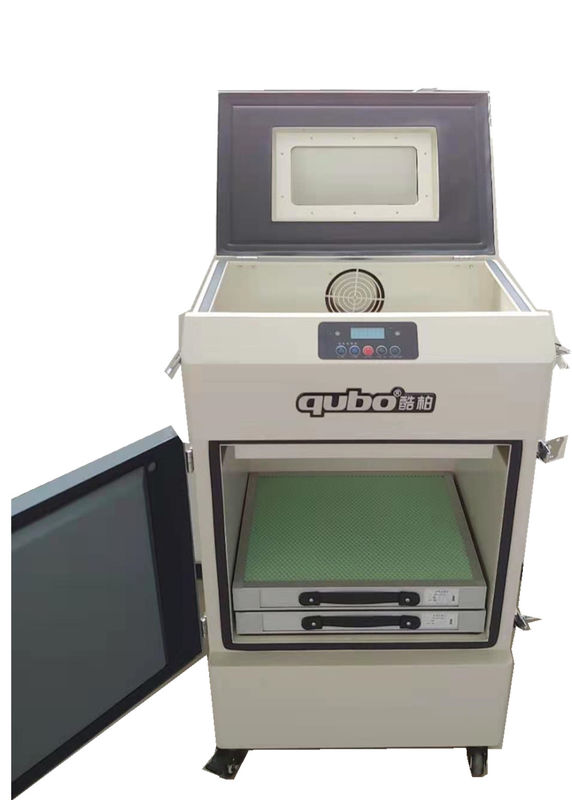

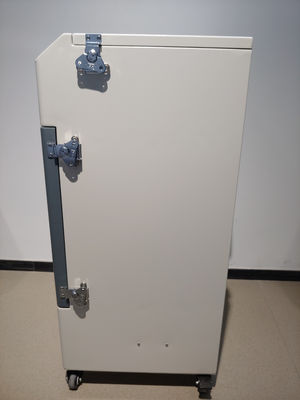

Product part picture:


Fumego 4200r/Min Solder Fume Filter With HEPA Filters 0

Fumego 4200r/Min Solder Fume Filter With HEPA Filters 1

Fumego 4200r/Min Solder Fume Filter With HEPA Filters 2
