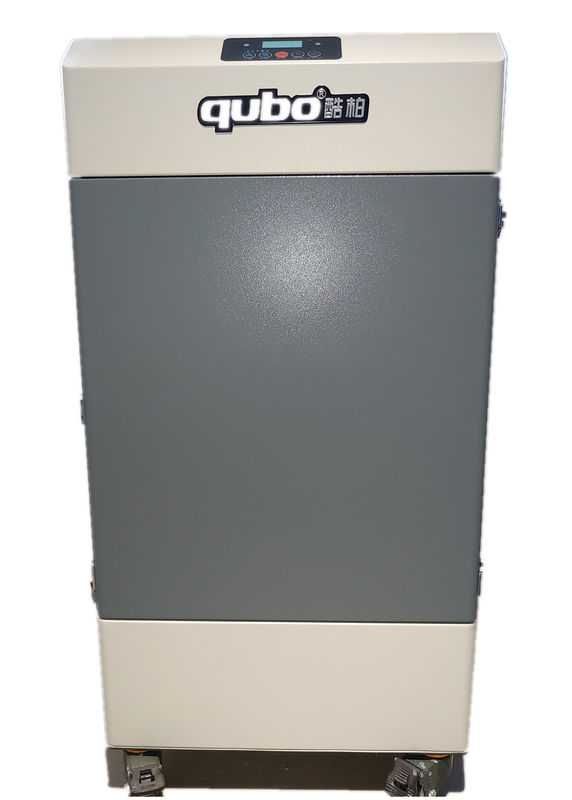

Fumego Air Flow 620m3/H HEPA Fume Extractor 9 Layers

Fumego Air Flow 620m3/H HEPA Fume Extractor 9 Layers

Fumego Air Flow 620m3/H HEPA Fume Extractor 9 Layers
Fumego Air Flow 620m3/H HEPA Fume Extractor 9 Layers
Fumego Air Flow 620m3/H HEPA Fume Extractor 9 Layers
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q570
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Dimensions: 550*430*1060 Mm Filter: 9 Layers
Noise: <75db Weight: 75 Kg
Power: 700w Application: Marking Cutting Engraving
Air Flow: 620m3/h
High Light:

620m3/H HEPA Fume Extractor

,

9 Layers HEPA Fume Extractor

Medium Laser Marking Cutting Engraving Smoke Purifier Durable Mental Cover With Observing Window



Features:



1.9 layers filters can be separate replace,high efficient sterilization make work place safer

2.All filters can be replaced separately

3. Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)

4.Low cost basis: as low as 1.85 yuan / day (8 hours / day)

5.Multi layer filtration, rapid purification, filter failure sound and light alarm.





Instructions:



Power(W)  700w
Dimension(mm) 550*430*1060
Air Flow(m3/h) 620
Noise(db) <75
Voltage 110/220
No-load speed(r/min) 6500
Wind spped(m/s) 27
Weight(kg) 75

Negative pressure(Pa)

3000


Advantages:



1.All three filters can be replaced separately

2.Durable mental frame structure,firm and unshaped

3.Durable mental frame structure,firm and unshaped,small footprint

4.Removabel hook and cover,replace the filter and check the condition easyier

5.Special alloy impeller, anti-corrosion, stable operation









FAQ



Q:What are the diameter specifications of smoking pipe?

A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.



Q:What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?

A:Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light,great looking, high temperature resistant, high price.



Q:Does the size of the pipe affect the effectiveness of smoking?

A:Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.



Q:Is the product influenced by the environment that affects the smoking effect?

A:Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking



Q:If the influence of fans and air conditioners is unavoidable, what methods can be used to solve the problem?

A:Use a smoking hood to block the influence of peripheral wind (air flow) on it

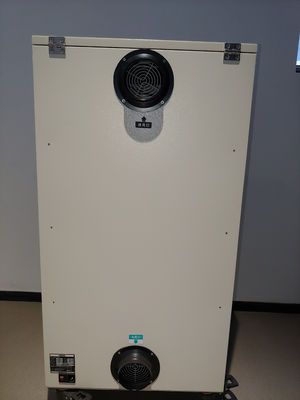

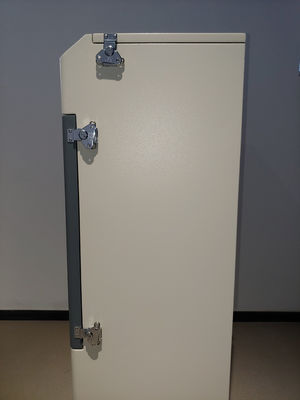

Product part picture:





Fumego Air Flow 620m3/H HEPA Fume Extractor 9 Layers 0



Fumego Air Flow 620m3/H HEPA Fume Extractor 9 Layers 1
