| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | Q100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Noise: | 57db | Filter: | 2 Layers |
|---|---|---|---|
| Voltage: | 110/220 V | Warranty: | 2 Years |
| Weight: | 11kg | Dimension: | 340*265*480mm |
| Application: | Soldering, Laser Cutting, | Air Flow: | 220 M3/H |
| Power: | 80w | ||
| High Light: | 80w HEPA Fume Extractor,Lightweight HEPA Fume Extractor |
||

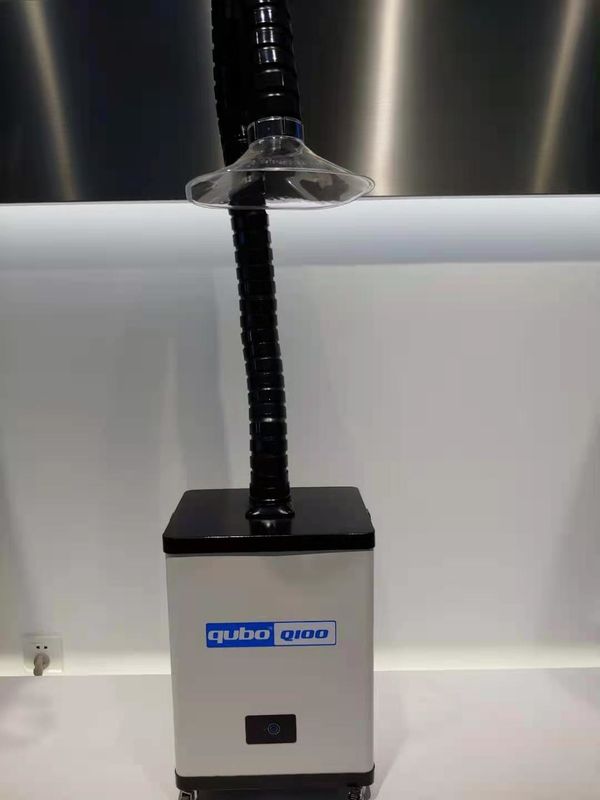

Laser Soldering Cutting Marking Smoke Purifier Portable Arm 80w Great Air Flow Lightweight Machine
Features:
1.Special alloy impeller, anti-corrosion, stable operation
2.Universal smoking arm, random orientation positioning
3. All three filters can be replaced separately
4.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation
5.Rapid purification by multi-layer filtration
Instructions:
| Power(W) | 80 |
| Dimension(mm) | 340*265*480 |
| Air Flow(m3/h) | 220 |
| Noise(db) | <57 |
| Voltage | 110/220 |
| No-load speed(r/min) | 5800 |
| Wind spped(m/s) | 17 |
| Weight(kg) | 11 |
| Negative pressure(pa) | 1800 |
Advantages:
1 Easy to set tp and use, do not need professionl to install, with replaceable filter,save more service life.
2 Self-developed brushless dc motor,no need to change carbon brush,save more power consumpution,able to working 40000hours continuously
3.Portable tube and hood,choice suitable accessories, various specifications tube various materials hood.
4.Durable mental frame structure,firm and unshaped,small footprint
5.Removabel hook and cover,change the filter and check the filter condition easyier
FAQ:
Q:Under what circumstances can I return it?
A: the same quality problem has not been solved for more than 4 times, we can return it.
Q:Under what circumstances are returns not allowed?
A:Damaged appearance or packaging, beyond the probation period (usually 3 days) is not allowed to return.
Q:Is it difficult to maintain?
A:Check whether the pipe and interface are sealed, and replace the filter element regularly.
Q:Can it be used in extremely humid or corrosive environment?
A:No, because in a particularly humid environment, moisture or corrosive gas will damage the filter element and the internal components of the machine; but usually in spring, humid weather, such as "southerly days", will not affect the use.
Q:Can it be used in high temperature environment?
A:The high temperature should be divided into instantaneous high temperature and long-term high temperature, the temperature within 60 degrees can be used; the temperature over 60 degrees for a long time is not recommended, because it may lead to fire.
Q:When the filter element needs to be replaced, will it give an alarm?
A:The indicator light of digital display control panel will flash red light and give out alarm sound.

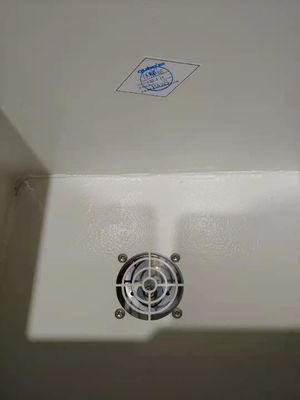

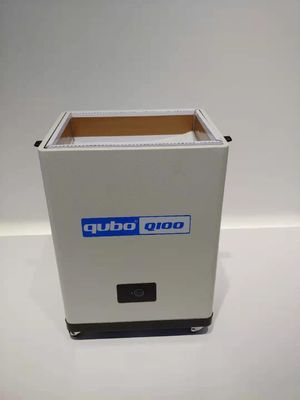

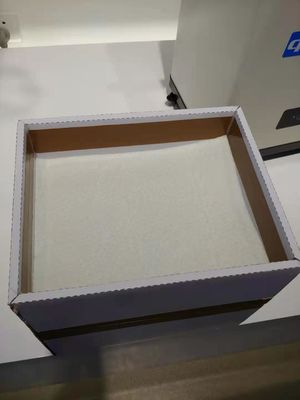

Product part picture:
