330W Bofa Welding Fume Extractor Industrial Mechanical Painting Co2 Laser Cutter

330W Bofa Welding Fume Extractor Industrial Mechanical Painting Co2 Laser Cutter

330W Bofa Welding Fume Extractor Industrial Mechanical Painting Co2 Laser Cutter
330W Bofa Welding Fume Extractor Industrial Mechanical Painting Co2 Laser Cutter
330W Bofa Welding Fume Extractor Industrial Mechanical Painting Co2 Laser Cutter
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Power: 330 W Noise: 59 Db
Warranty: 2 Years Voltage: 220/110 V
Application: Laser Marking, Graving, Welding Material: Metal Shell, Alloy Material
Product Name: Laser Fume Extractor Weight: 36.7 Kg
Air Volume: 450 M³/h Aftersale Service: Online Support Free Parts
High Light:

330W Welding Fume Extractor

,

450m3/h Welding Fume Extractor

,

HEPA H13 Air Filter Purifier

330W Bofa Industrial Mechanical Painting Co2 Laser Cutter Air Filter Purifier Welding Fume Extractor For Sale





Advantages:



1, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

2, Assembled with DC brushless motor, which will have more stable performance and longer life;

3, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

4, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

5, The machine is in a very small dimension, never occupying space;



Specifications:



Model FL-300 FL-500 FL-700
Filter 6 Layers 8 Layers 9 Layers
Weight 36.7kg 60kg 70kg

Dimensions

(L*W*H)

425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 500m³/h 750m³/h 1000m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Negative pressure 2500pa 2500pa 3000pa
Size of Filter (can be customized)

Fireproof

protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter 450*380*50mm 450*380*100mm 450*380*100mm

Activated carbon

filter

450*380*50mm 450*380*50mm*2 450*380*50mm*2


Features:



1, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;

2, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

3, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

4, No need to assemble, plug and turn it on, start to work;

5, The filter element adopts a return structure and can hold dust on all sides;

6, The fan speed is adjustable, timing function to turn on and off, and remote control;



FAQ:



Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price. Whats more, Our product have several layers of filters and special active carbon filter which can highly remove bad smells and

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life. We have 8 years after-sales warranty.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

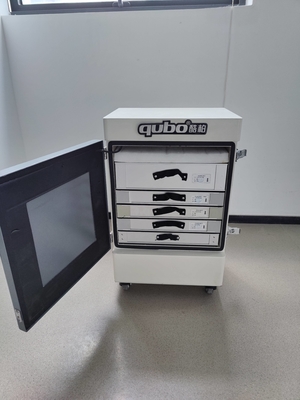

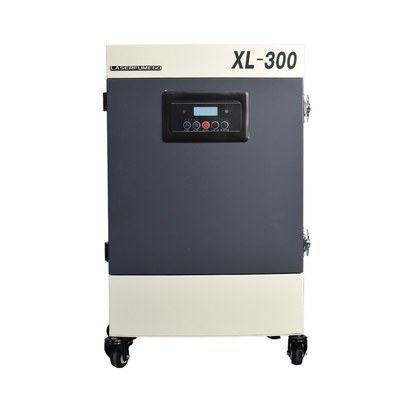

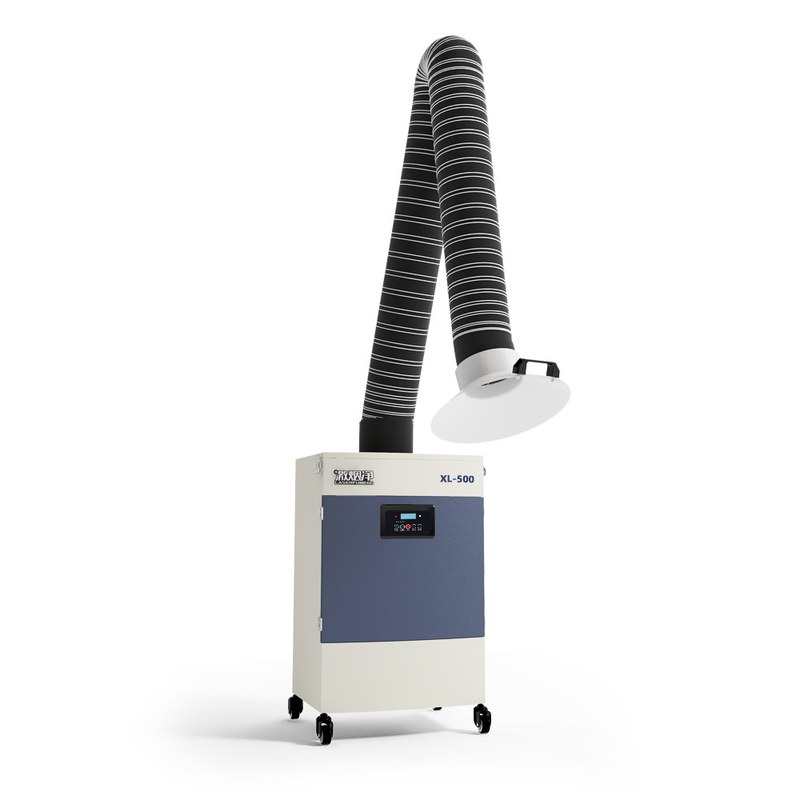

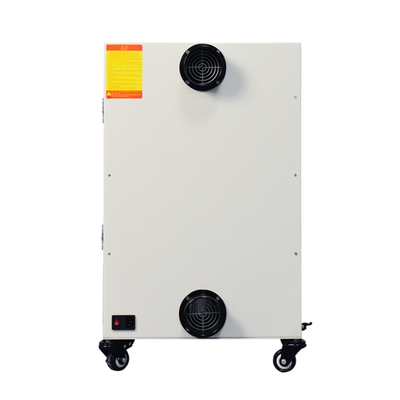

Picture:



330W Bofa Welding Fume Extractor Industrial Mechanical Painting Co2 Laser Cutter 0
