350w Portable 480M3/H Fume Extractor With Organ Filter

350w Portable 480M3/H Fume Extractor With Organ Filter

350w Portable 480M3/H Fume Extractor With Organ Filter
350w Portable 480M3/H Fume Extractor With Organ Filter
350w Portable 480M3/H Fume Extractor With Organ Filter
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL-480
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Voltage: 110/220 V Noise: 70 Db
Application: Soldering, Big Laser Cutting, Welding Plant Material: Mental Shell
Weight: 42kg Dimension: 550*415*920mm
Power: 350W Air Flow: 480 M3/H
Warranty: 2 Years Filter: PET Roller Filter
High Light:

480M3/H Laboratory Fume Extractor

,

ROHS Laboratory Fume Extractor

,

480M3/H Lab Fume Extractor

350w Portable 480M3/H Fume Extractor With Organ Filter



Features:



1,Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

2, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

3,The fume tube can be randomly rotate, and can be fix in any position;

4,Layers of different filters, clean air fasters and more efficient;

5,The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

6, High negative pressure;



Instructions:



Model FL-300 FL-500 FL-700
Filter 3 Layers 5 Layers 6 Layers
Weight 36.7kg 60kg 70kg

Dimensions

(L*W*H)

425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 450m³/h 700m³/h 750m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)

Fireproof

protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter No No 450*380*100mm

Activated carbon

filter

450*380*50mm 450*380*50mm*2 450*380*50mm*2


Advantages:



1, We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

2, Using noise reduction structure design, to keep working environment quiet;

3, It is also a dust collector, bad smell remover, and fire proof;

The fans runs very stable and reliable, very big air flow;

4, The fans material is special alloy, which can avoid corrosion;

We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;



FAQ:



Q:What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?

A:Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light, beautiful, high temperature resistant, high price.



Q:Does the size of the pipe affect the effectiveness of smoking?

A:Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.



Q:Is the product influenced by the environment that affects the smoking effect?

A:Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking





Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.



Q: Do you do OEM?

A: Yes

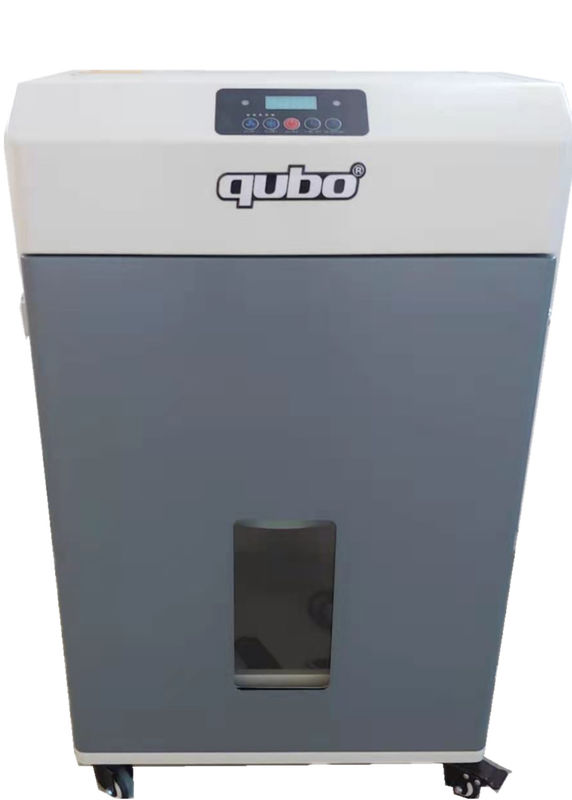

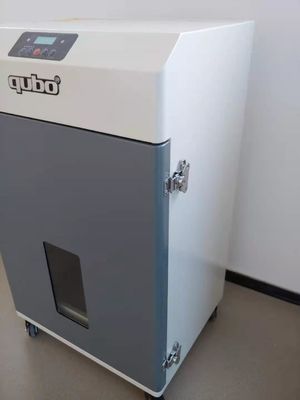

Product part picture:



350w Portable 480M3/H Fume Extractor With Organ Filter 0350w Portable 480M3/H Fume Extractor With Organ Filter 1
