Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking

Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking

  • Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking
  • Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking
  • Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking
  • Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking
Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Voltage: 110/220 V Noise: 57db
Air Flow: 220 M3/H Dimension: 340*265/480mm
Power: 80w Application: Soldering, Big Laser Cutting, Welding
Warranty: 2 Years Filter: 2 Layers
Weight: 11kg
High Light:

340*265*480mm Laboratory Fume Extractor

,

Fumego Laboratory Fume Extractor

,

340*265*480mm Laser Marking Fume Extractor

Laser Marking Weld Fume Extractor Light Weight Noise Canceling Portable Machine



Features:



1, Intergrated ac fan,high negative pressure


2, Replaceable efficient filter


3, Noise canceling design,quieter working place


4, Universal smoking arm,easy to operate


5, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;



Instructions:



Power(W) 80
Dimension(mm) 340*265*480
Air Flow(m3/h) 220
Noise(db) <57
Voltage 110/220
No-load speed(r/min) 5800
Wind spped(m/s) 17
Weight(kg) 11
Negative pressure(pa) 1800


Advantages:



1, All mental material shell, durable and sturdy;
2, The fume tube can be randomly rotate, and can be fix in any position;
We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.
3, Layers of different filters, clean air faster and more efficient;
Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.
4,Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution.
5, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

FAQ:



Q:What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?

A:Smoking cover silica gel, acrylic, aluminum alloy a total of three materials

Q: Do you do OEM?

A: Yes

Q:Is the product influenced by the environment that affects the smoking effect?

A:Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking

Q:Is it difficult to maintain?

A:Check whether the pipe and interface are sealed, and replace the filter element regularly.

Q:Does the size of the pipe affect the effectiveness of smoking?

A:Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.

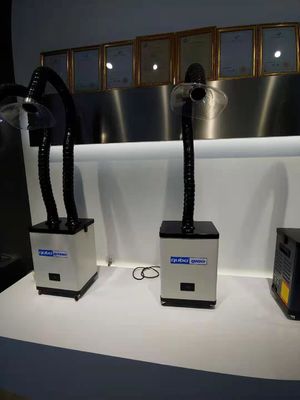

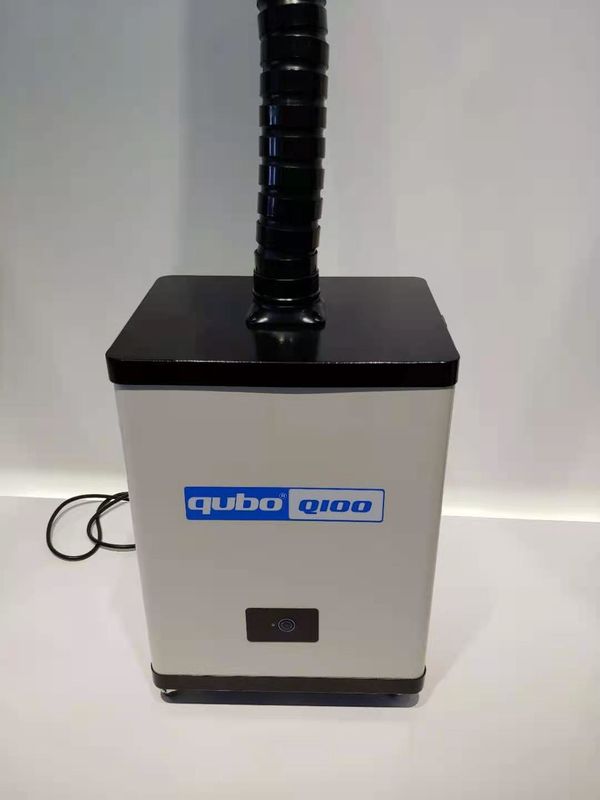

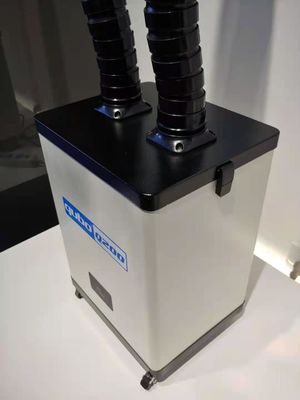

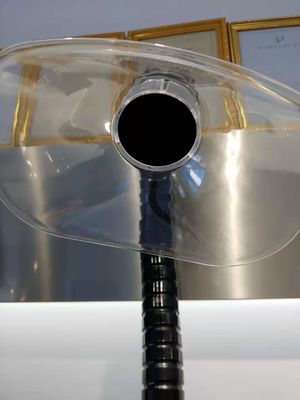

Product part picture:



Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking 0Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking 1Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking 2Light Weight 340*265*480mm Laboratory Fume Extractor For Laser Marking 3
