| Place of Origin: | China |
| Brand Name: | Fumego |
| Certification: | CE ROHS |
| Model Number: | FL350C-1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P |
| Supply Ability: | 100pcs per week |
| Application: | Soldering, Big Laser Cutting, Welding Plant | Weight: | 15 Kg |
|---|---|---|---|
| Filter Efficiency: | 99.97% | After-sales Service: | Online Support |
| Power: | 330W | Noise: | 64 Db |
| Warranty: | 2 Years | Voltage: | 110/220 V |
| High Light: | 2400Pa Portable Welding Extraction Units,6500rpm Portable Welding Extraction Units,6500rpm Welding Fume Extraction Units |
||
Portable Welding Soldering Fume Extractor For Industrial With Double Arm Pure Air
Advantages:
1, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
2, The fume tube can be randomly rotate, and can be fix in any position;
We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.
3, Saving energy and cost, lower noise and larger suction power;
4, Portable because it assemable with 4 wheels;
5, The filter element adopts a return structure and can hold dust on all sides;
Specifications:
| Model | Fume extractor FL350C-1 |
| Power | 330 W |
| Air flow | 350 m³/h |
| Dimension | 400*300*360 mm |
| Voltage | 110/220 V |
| Noise | 63 db |
| Weight | 15 kg |
| Filters | 4 layers |
| Size and Frequency to replace | |
| Pre-filter | 365*180*25 mm 7-60 days |
| Middle filter | 365*175*55 mm 3-6 months |
| HEPA filter | 365*195*250mm 3-6 months |
| Usage | Manual soldering, small Laser machine and Soldering robot |
|
Air flow speed
|
18m/s |
| No load Speed | 6500rpm |
| Negative pressure | 2400Pa |
| Air inlet port | 1*75mm |
Instructions:
1, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.
2, Assembled with DC brushless motor, which will have more stable performance and longer life;
3, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;
4, Portable because it assemable with 4 wheels;
5, High negative pressure;
FAQ:
Q: Where is your fume extractor factory?
A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.
Q: What is your advantage for fume extractor compared with other factory?
A: Lower cost of usage, save power,and more competitive price.
Q: How long is needed for fume extractor manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Why choose Fumego?
A: Lower using cost and longer machine life.

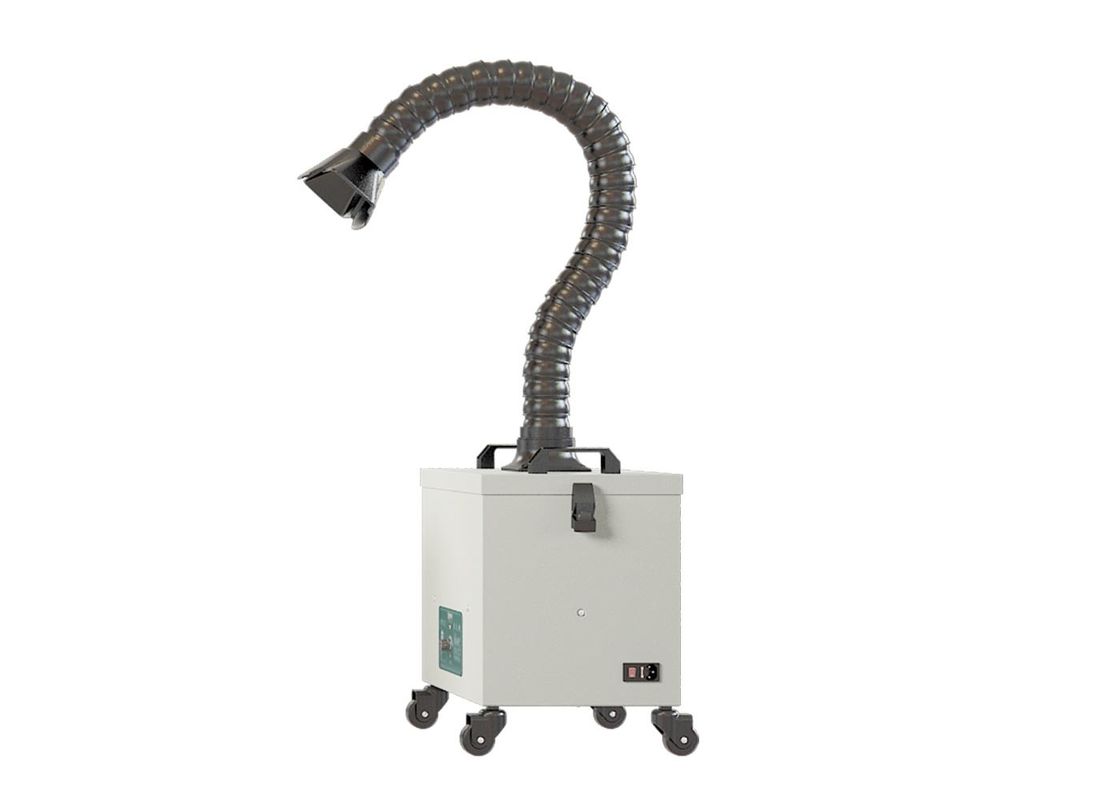

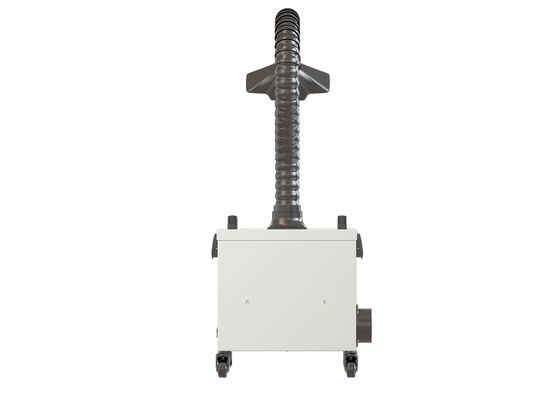

Product picture:
