12kg 150W Small Portable Fume Extractor Alloy Impeller

12kg 150W Small Portable Fume Extractor Alloy Impeller

12kg 150W Small Portable Fume Extractor Alloy Impeller
12kg 150W Small Portable Fume Extractor Alloy Impeller
12kg 150W Small Portable Fume Extractor Alloy Impeller
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Filter: 2 Layers Noise: 62db
Dimension: 340*265/480mm Voltage: 110/220 V
Weight: 12kg Warranty: 2 Years
Application: Welding Laser Marking Air Flow: 2*143 M3/H
Power: 150w
High Light:

150W Small Portable Fume Extractor

,

12kg Small Portable Fume Extractor

,

150W Small Fume Extractor

Fume Extractor For Marking Engraving Portable Lightweight Two Suction Arms Universal Wheels Under



Features:



1.Rapid purification by multi-layer filtration

2.Universal smoking arm, random orientation positioning

3.Special alloy impeller, anti-corrosion, stable operation

4, Multilayer filter design,make sure more thorogh purification



Instructions:



Power(W) 150
Dimension(mm) 340*265*480
Air Flow(m3/h) 220
Noise(db) <57
Voltage 110/220
No-load speed(r/min) 5800
Wind spped(m/s) 17
Weight(kg) 11
Negative pressure(pa) 1800


Advantages:



1.Multi layer filtration, rapid purification, filter failure sound and light alarm.

2.Low cost basis: as low as 1.85 yuan / day (8 hours / day)

3. Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)

4, Multilayer filter design,make sure more thorogh purification

5,Brushless DC moter,stable long service life





FAQ:





Q:Can it be used in extremely humid or corrosive environment?

A:No, because in a particularly humid environment, moisture or corrosive gas will damage the filter element and the internal components of the machine; but usually in spring, humid weather, such as "southerly days", will not affect the use.



Q:Can it be used in high temperature environment?

A:The high temperature should be divided into instantaneous high temperature and long-term high temperature, the temperature within 60 degrees can be used; the temperature over 60 degrees for a long time is not recommended, because it may lead to fire.



Q:When the filter element needs to be replaced, will it give an alarm?

A:The indicator light of digital display control panel will flash red light and give out alarm sound.



Q:Can the pipe of smoke and dust move back and forth with the laser head?

A:In principle, it can, but it can't if auxiliary gas is needed



Q:Can water cutting match your purifier?

A:No, because the humidity of the gas and dust inhaled by the air inlet is 40% - 80%, too high humidity will cause the filter element to fail quickly and the circuit inside the machine to be damaged.

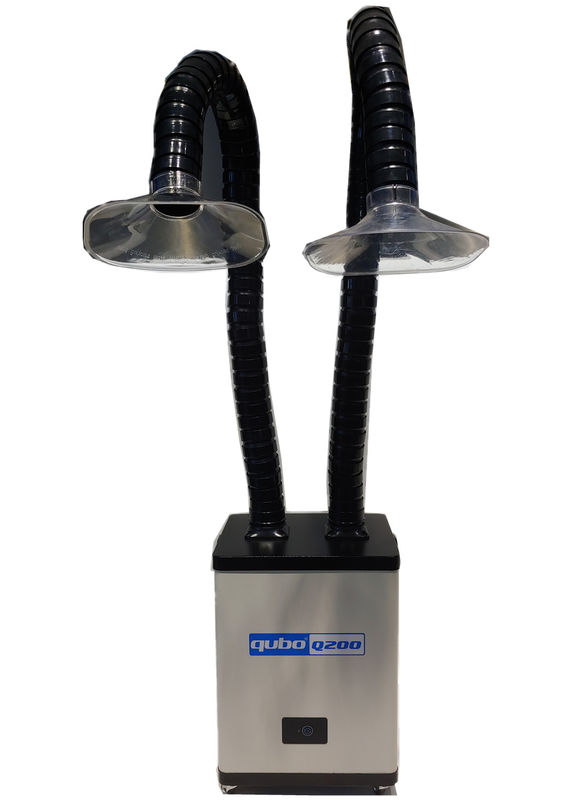

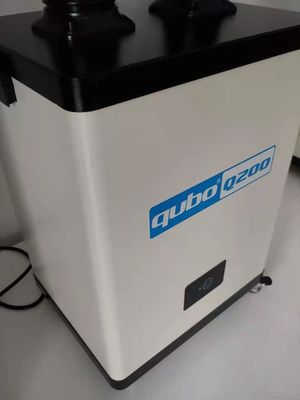

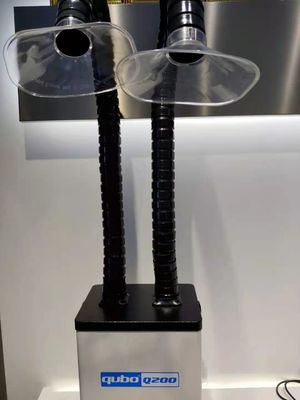

Product part picture:



12kg 150W Small Portable Fume Extractor Alloy Impeller 012kg 150W Small Portable Fume Extractor Alloy Impeller 112kg 150W Small Portable Fume Extractor Alloy Impeller 2
