| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | dX1002 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Weight: | 13 Kg | Filter: | 3 Layers |
|---|---|---|---|
| Power: | 200w | Application: | Welding Heat-gun Handling |
| Noise: | <55 Db | Dimensions: | 420*245*400mm |
| Air Flow: | 150*2m3/h | ||
| High Light: | 200W Laboratory Fume Extractor,Universal Wheels Laboratory Fume Extractor,200W Fume Extraction Unit |
||
Hand Welding Soldering Fume Purifiers Double Suction Arms Dark Mental Cover Universal Wheels Under
Features:
1.Rapid purification by multi-layer filtration
2.Universal smoking arm, random orientation positioning
3.Special alloy impeller, anti-corrosion, stable operation
4.All three filters can be replaced separately
Instructions:
| Power(W) | 200 |
| Dimension(mm) | 420*245*400 |
| Air Flow(m3/h) | 150*2 |
| Noise(db) | <55 |
| Voltage | 110/220 |
| No-load speed(r/min) | 4500 |
| Wind spped(m/s) | 11.5*2 |
| Weight(kg) | 13 |
| Negative pressure(pa) | 2200 |
Advantages:
1.Noise canceling design low noise,the volume is about ordinary speech,More quiet workshop.
2.Replaceable tube and hood,choice suitable accessories, various specifications tube and materials hood.
3.Durable mental frame structure,firm and unshaped
4.Compact design machine with 4 universal wheel under,easy to move and storage
5.Removabel hook and cover,replace the filter and check the condition easyier
FAQ
Q:Does the size of the pipe affect the effectiveness of smoking?
A:Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.
Q:Is the product influenced by the environment that affects the smoking effect?
A:Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking
Q:If the influence of fans and air conditioners is unavoidable, what methods can be used to solve the problem?
A:Use a smoking hood to block the influence of peripheral wind (air flow) on it
Q:How far is the smoke cover from the smoke point of the smoke purification system better?
A:Smoking cover (mouth) with the distance of unborn smoke point is better in 5-15 cm.
.

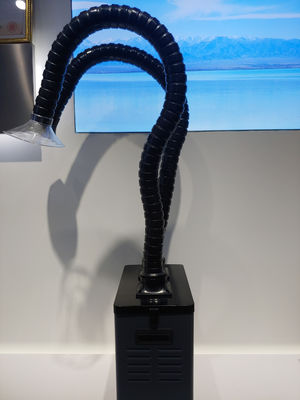

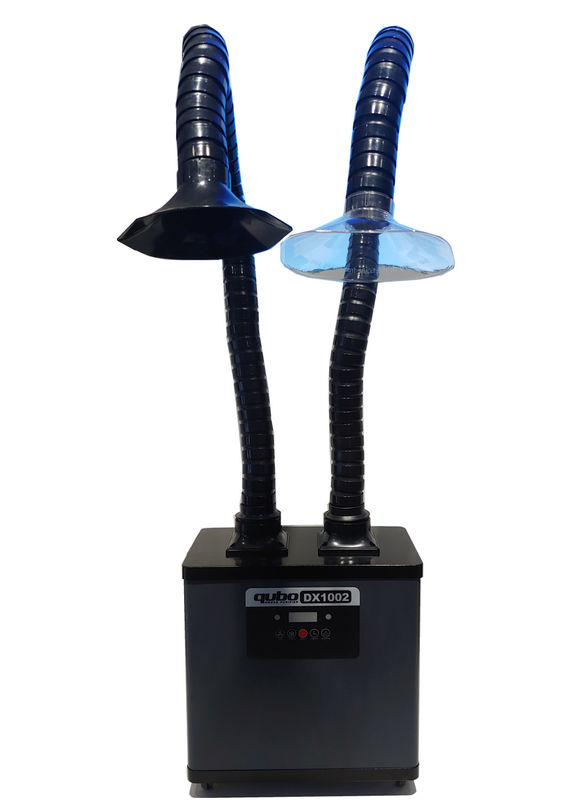

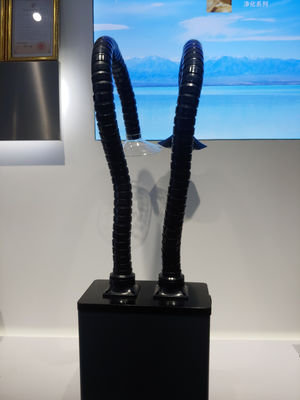

Product part picture:
