Lightweight Welding Air Purifier 200w Welding Fume Removal

Lightweight Welding Air Purifier 200w Welding Fume Removal

  • Lightweight Welding Air Purifier 200w Welding Fume Removal
  • Lightweight Welding Air Purifier 200w Welding Fume Removal
  • Lightweight Welding Air Purifier 200w Welding Fume Removal
Lightweight Welding Air Purifier 200w Welding Fume Removal
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: X1002
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Power: 200w Dimensions: 420*245*400mm
Filter: 3 Layers Application: Welding Heat-gun Handling
Weight: 13 Kg Noise: <55 Db
Air Flow: 150*2m3/h
High Light:

Lightweight Welding Air Purifier

,

200w Welding Air Purifier

,

200w Welding Fume Removal

Hand Welding Min-Pot Heat-Gun Handling Fume Purifier Lightweight Portable Machine



Features:

1,Brushless DC moter,stable long service life

2, Multilayer filter design,make sure more thorogh purification

3.Multiple filtration ensures complete purification of harmful smoke and dust

4.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation

5.Noise canceling design,quieter working place



Specification:



Power(W) 200
Dimension(mm) 420*245*400
Air Flow(m3/h) 150*2
Noise(db) <55
Voltage 110/220
No-load speed(r/min) 4500
Wind spped(m/s) 11.5*2
Weight(kg) 13
Negative pressure(pa) 2200


Advantages:



1.Compact design machine with 4 universal wheel under,easy to move and storage

2.Durable mental frame structure,firm and unshaped

3.Noise canceling design low noise,the volume is about ordinary speech,More quiet workshop

4.Removabel hook and cover,replace the filter and check the condition easyier

5.Replaceable tube and hood,choice suitable accessories, various specifications tube and materials hood.





FAQ



Q:What are the diameter specifications of smoking pipe?

A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.



Q:What are the application fields of your products?

A:Laser marking, laser welding, laser coding, laser cutting, laser cladding, laser cleaning, grinding, polishing, drilling and so on



Q:How long is the tube standard configuration?

A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).



Q:What is the approximate life of the product in continuous operation?

A:The motor life is 40,000 hours (continuous 24 hours) will not be broken, need to consider environmental factors. Usually for 4-5 years it won't be a problem



Q:How does it work?

A:Physical principle: interception → activated carbon adsorption → clean air through layers of filters



Q:Can smoking pipes be shortened or lengthened at will?

A:It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)

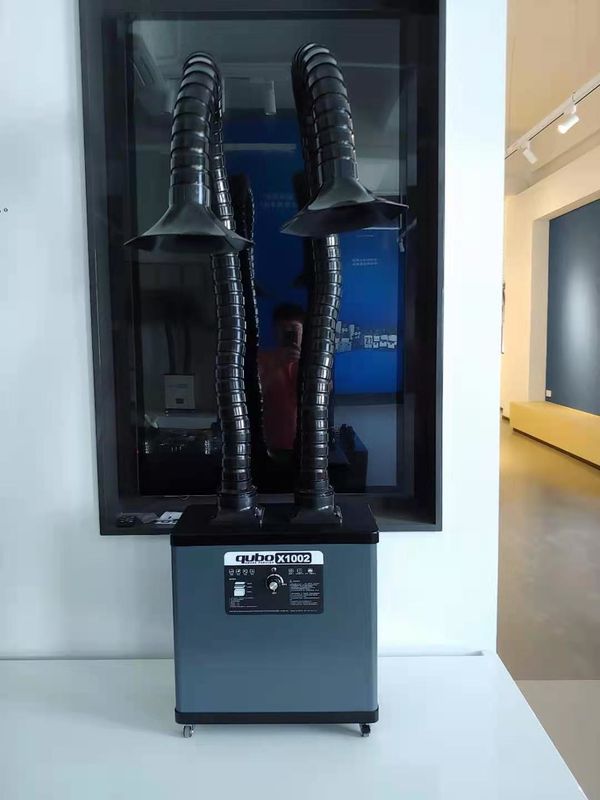

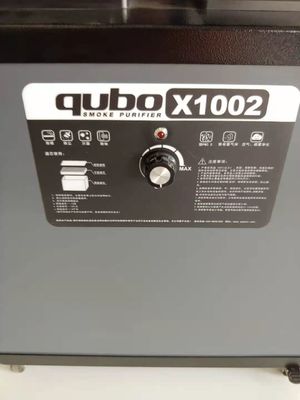

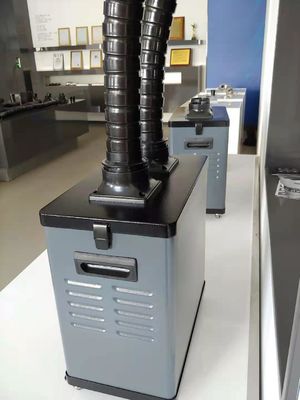

Product part picture:



Lightweight Welding Air Purifier 200w Welding Fume Removal 0Lightweight Welding Air Purifier 200w Welding Fume Removal 1Lightweight Welding Air Purifier 200w Welding Fume Removal 2Lightweight Welding Air Purifier 200w Welding Fume Removal 3
