| Place of Origin: | China |
| Brand Name: | Fumego |
| Certification: | CE ROHS |
| Model Number: | FL350C-1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, L/C, D/A, D/P |
| Supply Ability: | 100pcs per week |
| Noise: | 64 Db | Warranty: | 2 Years |
|---|---|---|---|
| Voltage: | 110/220 V | Application: | Soldering, Big Laser Cutting, Welding Plant |
| Weight: | 15 Kg | Filter Efficiency: | 99.97% |
| After-sales Service: | Online Support | Power: | 330W |
| High Light: | 330W Laboratory Fume Extractor,2400Pa Laboratory Fume Extractor,330W Soldering Fume Extractors |
||
Welding Smoke Absorber Portable Single Suction Arm Soldering Fume Extractors
Features:
1, The fan speed is adjustable, timing function to turn on and off, and remote control;
2, Portable because it assemable with 4 wheels;
3, Saving energy and cost, lower noise and larger suction power;
4, The fume tube can be randomly rotate, and can be fix in any position;
We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.
5, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
Specifications:
| Model | Fume extractor FL350C-1 |
| Power | 330 W |
| Air flow | 350 m³/h |
| Dimension | 400*300*360 mm |
| Voltage | 110/220 V |
| Noise | 63 db |
| Weight | 15 kg |
| Filters | 4 layers |
| Size and Frequency to replace | |
| Pre-filter | 365*180*25 mm 7-60 days |
| Middle filter | 365*175*55 mm 3-6 months |
| HEPA filter | 365*195*250mm 3-6 months |
| Usage | Manual soldering, small Laser machine and Soldering robot |
|
Air flow speed
|
18m/s |
| No load Speed | 6500rpm |
| Negative pressure | 2400Pa |
| Air inlet port | 1*75mm |
Advantages:
1, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.
2, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem happened if the machine is out of work.
3, Imported integrated AC fan, stable performance and longer life;
4, The fan speed is adjustable, timing function to turn on and off, and remote control;
5, High negative pressure;
6, The machine is in a very small dimension, never occupying space.
FAQ:
Q: Where is your factory?
A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.
Q: What is the difference between fume extractor and air purifier?
A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price.
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Why choose Fumego?
A: Lower using cost and longer machine life.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

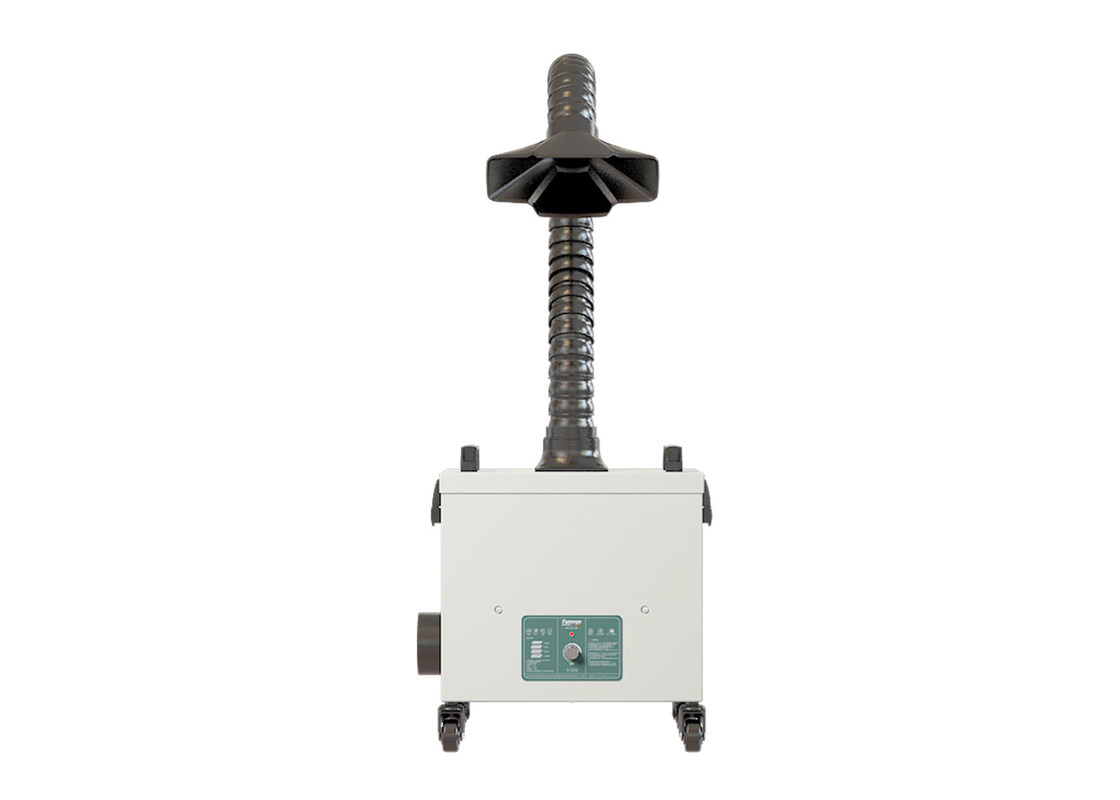

Product picture:
