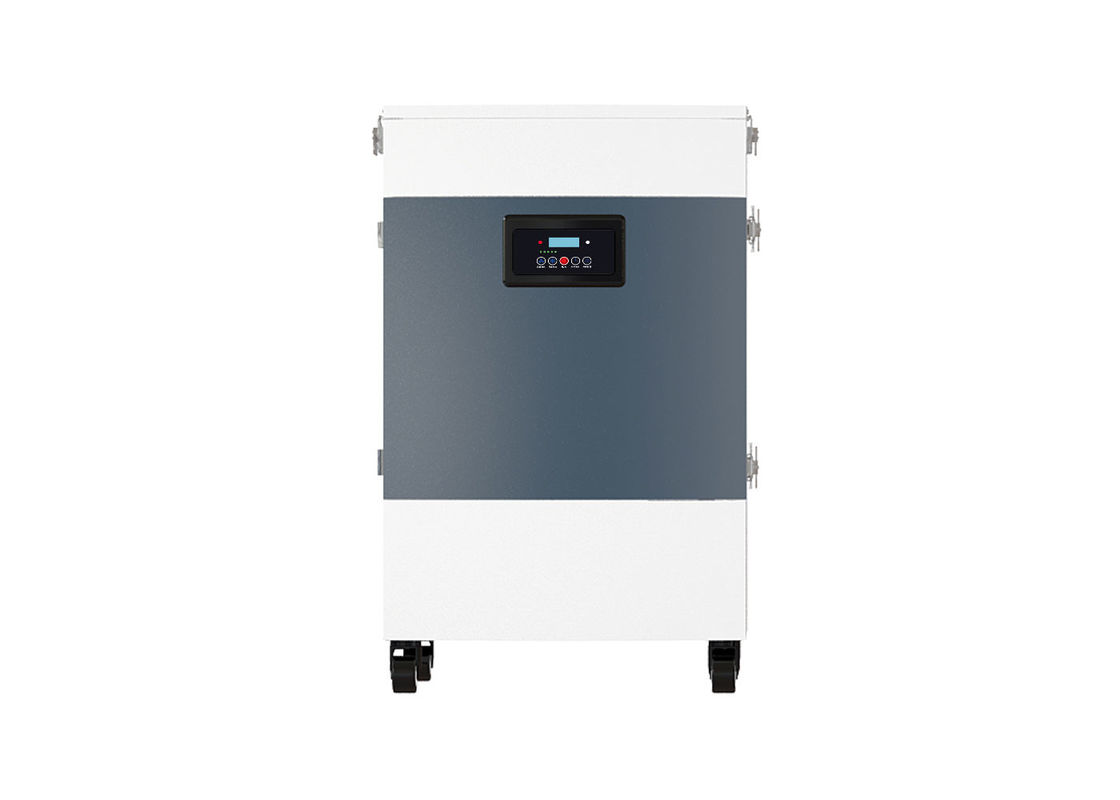

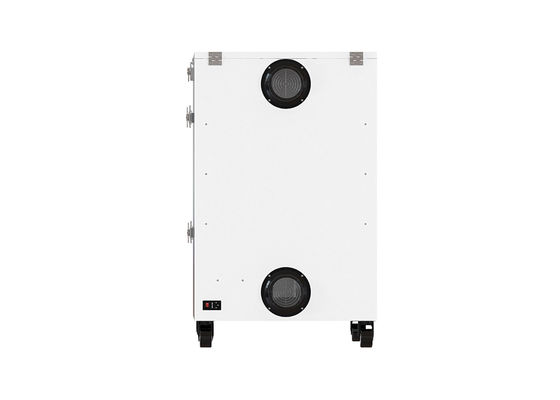

5 Layers 500W Laboratory Fume Extractor Air Dust Filter

5 Layers 500W Laboratory Fume Extractor Air Dust Filter

5 Layers 500W Laboratory Fume Extractor Air Dust Filter
5 Layers 500W Laboratory Fume Extractor Air Dust Filter
5 Layers 500W Laboratory Fume Extractor Air Dust Filter
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL-500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Material: Mental Shell Power: 500W
Filter: 5 Layer Weight: 60kg
Voltage: 110/220 V Noise: 70 Db
Air Flow: 700 M3/H Dimension: 550*440*885mm
High Light:

500W Laboratory Fume Extractor

,

700M3/H Laboratory Fume Extractor

,

500W Air Dust Filter

Laser Machine Fume Extractor Air Dust Filter Cleaner With 500W Suction Power





Features:



Model FL-300 FL-500 FL-700
Filter 3 Layers 5 Layers 6 Layers
Weight 36.7kg 60kg 70kg

Dimensions

(L*W*H)

425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 450m³/h 700m³/h 750m³/h
Noise <59dB <70dB <75dB
Power 330W 500W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)

Fireproof

protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter No No 450*380*100mm

Activated carbon

filter

450*380*50mm 450*380*50mm*2 450*380*50mm*2



Instructions:



1, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

2, Assembled with DC brushless motor, which will have more stable performance and longer life;

3, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

4, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

5, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow.

6, Saving energy and cost, lower noise and larger suction power;


Advantages:



1,The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

2, Imported integrated AC fan, stable performance and longer life;

3, Portable because it assemble with 4 wheels;

4, High negative pressure;

5, The machine is in a very small dimension, never occupying space;



FAQ:



Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.



Product part picture:



5 Layers 500W Laboratory Fume Extractor Air Dust Filter 0
