| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | FL700II |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Warranty: | 5 Years | Filter: | Integrated Filter Set |
|---|---|---|---|
| Noise: | <70 Db | Dimensions: | 550*430*1060mm |
| Power: | 750w | Application: | Laser Cutting Welding Cleaning Machine |
| Air Flow: | 1000m3/h | Weight: | 75kg |
| Advantage: | Fire Explosion Proof | Dust Collect Bag: | Big Capacity |
| High Light: | CO2 Laser Cutting Dust Collector,2KW Laser Cutting Dust Collector,Mobile HEPA Fume Extractor |
||

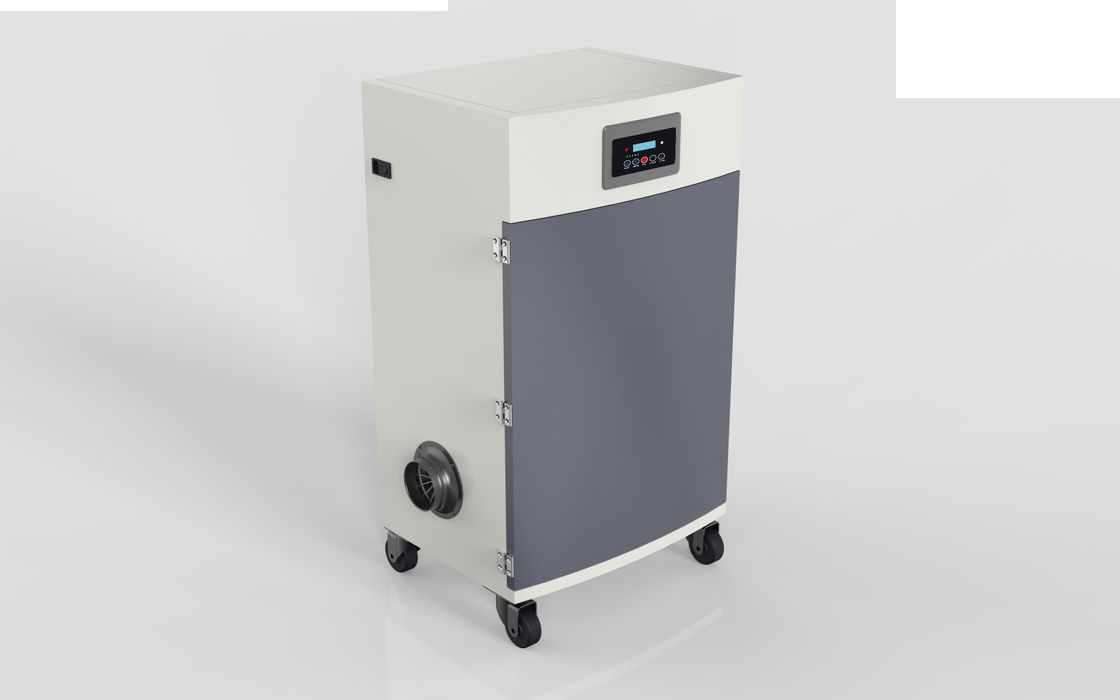

Willdone 2KW Mobile Co2 Laser Welding Cutter Engraver Powerful Dust Collector Portable Paint Exhaust HEPA Fume Extractor
Features:
Usage description:The fume extractor mainly use for remove smoke, dust
and odor generated during laser equipment processing.Improve product
hygiene and cleanliness, reduce product defect rate, and clearly observe
laser focus.
Environmental Evaluation:Our products have passed the European CE
safety certification, and the purification effect has been tested and
confirmed by the American PONY international professional testing
institution. The purified air can be discharged directly indoors or in the
atmosphere
Usage field:Laser marking, laser beauty, laser laser, laser engraving, laser
peeling, laser cutting, laser welding, laser cladding and so on
Instructions:
| Model | FL-500II | FL-700II |
| Filter | 8 Layers | 9 Layers |
| Weight | 60kg | 70kg |
|
Dimensions (L*W*H) |
550*440*885mm | 550*440*1035mm |
| Air Flow | 750m³/h | 1000m³/h |
| Noise | <70dB | <75dB |
| Power | 450W | 700W |
| Voltage | AC 110-220V | AC 110-220V |
| Size of Filter (can be customized) | ||
|

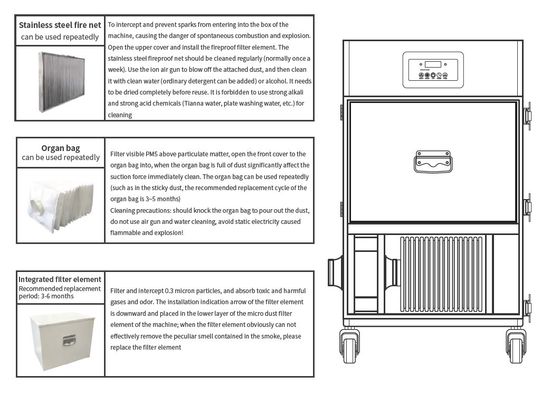

Fireproof protection net |
415*335*25mm | 415*335*25mm |
| Primarry filter | 450*380*100mm | 450*380*100mm |
| PP Medium filter | 450*380*50mm | 450*380*50mm |
| Glass fiber filter | 450*380*100mm | 450*380*100mm |
|
Activated carbon filter |
450*380*50mm*2 | 450*380*50mm*2 |
Advantages:
1, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.
2, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem happened if the machine is out of work.
3, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow;
4, Saving energy and cost, lower noise and larger suction power;

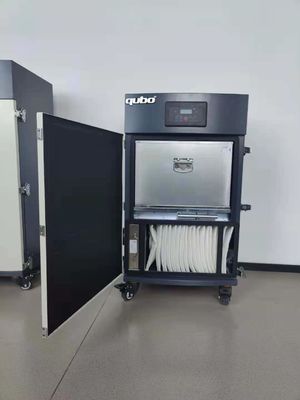

5, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;
6, It is also a dust collector, bad smell remover, and fire proof;
We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.
FAQ
Q: Where is your factory?
A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.
Q: What is the difference between fume extractor and air purifier?
A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.
Q: Why choose Fumego?
A: Lower using cost and longer machine life. We have 8 years after-sales warranty.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
Q: Do you do OEM?
A: Yes
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price. Whats more, Our product have several layers of filters and special active carbon filter which can highly remove bad smells and
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection every week.
