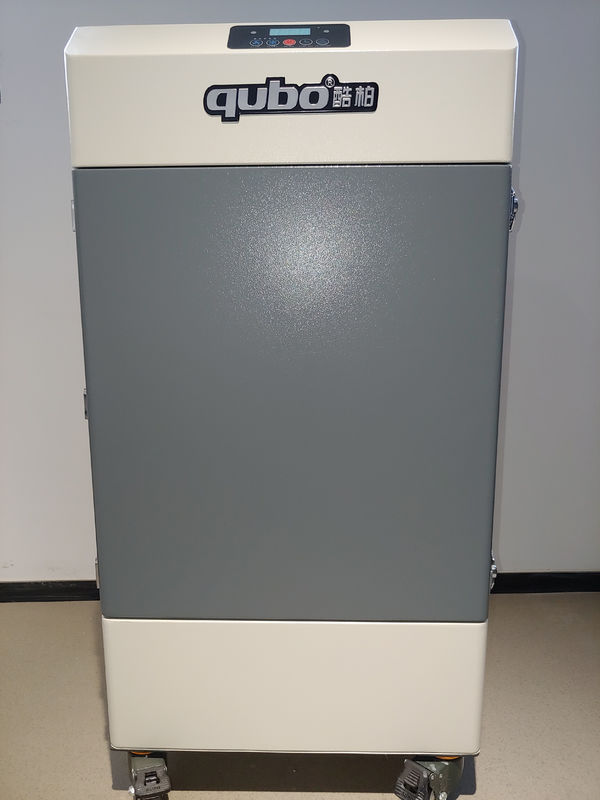

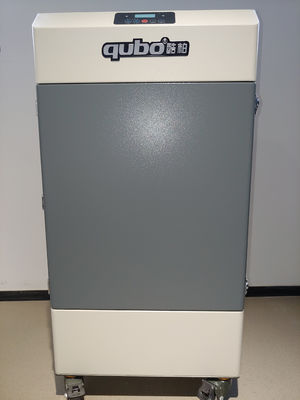

9 Layers 3000Pa Laser Fume Extractor for Fiber Laser

9 Layers 3000Pa Laser Fume Extractor for Fiber Laser

9 Layers 3000Pa Laser Fume Extractor for Fiber Laser
9 Layers 3000Pa Laser Fume Extractor for Fiber Laser
9 Layers 3000Pa Laser Fume Extractor for Fiber Laser
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q570
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Air Flow: 620m3/h Application: Marking Cutting Engraving
Filter: 9 Layers Weight: 75 Kg
Power: 700w Noise: <75db
Dimensions: 550*430*1060 Mm
High Light:

3000Pa Laser Fume Extractor

,

9 Layers Laser Fume Extractor

,

3000Pa Fiber Laser Fume Extractor

Medium Laser Marking Cutting Engraving Smoke Purifier Durable Mental Cover With Observing Window



Features:



1.Multi layer filtration, rapid purification, filter failure sound and light alarm.

2.Low cost basis: as low as 1.85 yuan / day (8 hours / day)

3. Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)

4.All filters can be replaced separately

5.9 layers filters can be separate replace,high efficient sterilization make work place safer





Instructions:



Power(W)  700w
Dimension(mm) 550*430*1060
Air Flow(m3/h) 620
Noise(db) <75
Voltage 110/220
No-load speed(r/min) 6500
Wind spped(m/s) 27
Weight(kg) 75

Negative pressure(Pa)

3000


Advantages:



1.Removabel hook and cover,replace the filter and check the condition easyier

2.Durable mental frame structure,firm and unshaped

3.Special alloy impeller, anti-corrosion, stable operation

4.All three filters can be replaced separately

5.Durable mental frame structure,firm and unshaped,small footprint









FAQ



Q:Does the size of the pipe affect the effectiveness of smoking?

A:Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.



Q:Is the product influenced by the environment that affects the smoking effect?

A:Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking



Q:If the influence of fans and air conditioners is unavoidable, what methods can be used to solve the problem?

A:Use a smoking hood to block the influence of peripheral wind (air flow) on it



Q:How far is the smoke cover from the smoke point of the smoke purification system better?

A:Smoking cover (mouth) with the distance of unborn smoke point is better in 5-15 cm.



Q:Can the filter element be replaced separately?

A:Yes, each layer can be replaced independently

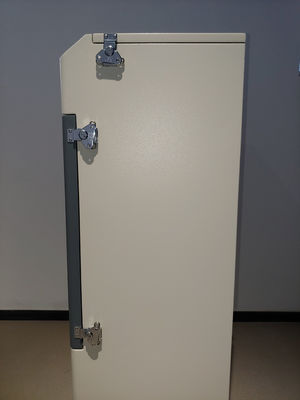

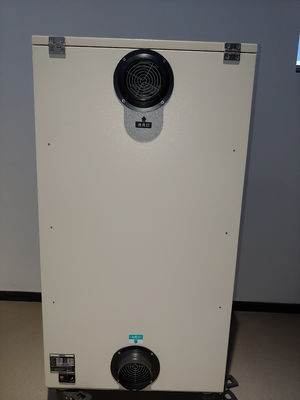

Product part picture:



9 Layers 3000Pa Laser Fume Extractor for Fiber Laser 09 Layers 3000Pa Laser Fume Extractor for Fiber Laser 19 Layers 3000Pa Laser Fume Extractor for Fiber Laser 2
