| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | FL500II |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Filter: | 8 Layers | Noise: | <70 Db |
|---|---|---|---|
| Dimensions: | 550*430*920mm | Power: | 550w |
| Application: | Laser Marking Welding Cleaning Equipment | Air Flow: | 700m3/h |
| Weight: | 60kg | Warrenty: | 3 Years |
| High Light: | Microcomputer Control Dust Collector Machine,450W Dust Collector Machine,Microcomputer Control Dust Collector Equipment |
||
Industrial Portable Powder Dust Collector Machine For Woodworking 4500cfm Bag House With One integrated Filter
Features:
Usage description:The fume extractor mainly use for remove smoke, dust and odor generated during laser equipment processing.Improve product hygiene and cleanliness, reduce product defect rate, and clearly observe laser focus. Environmental Evaluation:Our products have passed the European CE safety certification, and the purification effect has been tested and confirmed by the American PONY international professional testing institution. The purified air can be discharged directly indoors or in theatmosphere.
Usage field:Laser marking, laser beauty, laser laser, laser engraving, laser peeling, laser cutting, laser welding, laser cladding and so on
Instructions:
| Model | FL-500II | FL-700II |
| Filter | 8 Layers | 9 Layers |
| Weight | 60kg | 70kg |
|
Dimensions (L*W*H) |
550*440*885mm | 550*440*1035mm |
| Air Flow | 750m³/h | 1000m³/h |
| Noise | <70dB | <75dB |
| Power | 450W | 700W |
| Voltage | AC 110-220V | AC 110-220V |
| Size of Filter (can be customized) | ||
|
Fireproof protection net |
415*335*25mm | 415*335*25mm |
| Primarry filter | 450*380*100mm | 450*380*100mm |
| PP Medium filter | 450*380*50mm | 450*380*50mm |
| Glass fiber filter | 450*380*100mm | 450*380*100mm |
|
Activated carbon filter |
450*380*50mm*2 | 450*380*50mm*2 |
Advantages:
1, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.
2, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem happened if the machine is out of work.
3, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow;
4, Saving energy and cost, lower noise and larger suction power;
5, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;
6, It is also a dust collector, bad smell remover, and fire proof;
We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.
Introduce:
Panel lock button
When the machine is working, press this button, all the function on the operation panel of the
machine will be locked. Press this button again or disconnect the power supply of the machine
and restart the machine it can be removed.
Set button
When the machine enters the alarm state and the buzzer sounds, press this button once to
disactivate the buzzer sound. When the alarm is not entered, this key is used to inquire the total
running time of the whole machine.
Timer shutdown button
When the machine is running, press this button to display HXXX on the digital tube display
screen, and then press the wind speed increase or decrease to adjust the timing off. When setting
the timing, press the timing button to adjust the shift of the number of times, ten, and hundreds
of digits. After setting, press OK/ Set button to confirm the end of the timing device. XXX
represents the number of hours the machine runs regularly, with a maximum of 300 hours and a
minimum of 1 hour. After setting, press the timing key to check the remaining time of the timing.
Digital tube display long display HXXX, such as H005 represents 5 hours after the automatic
shutdown, set the time to H000, can cancel the timing.

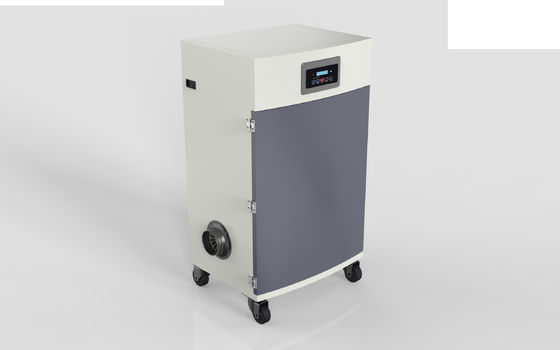

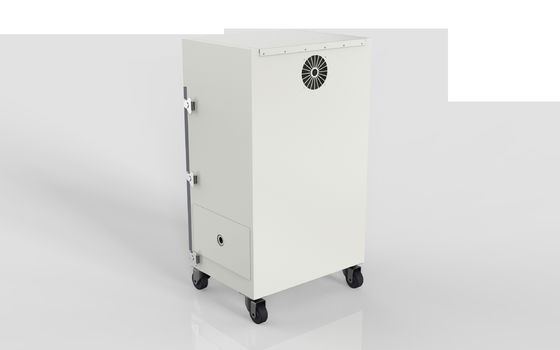

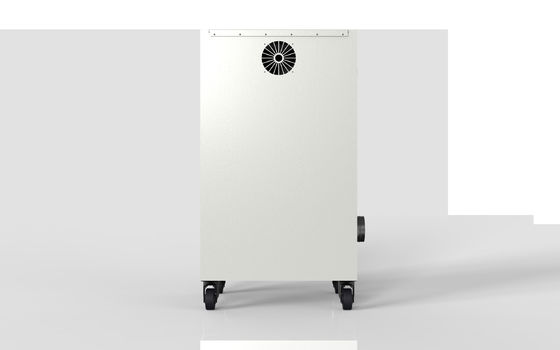

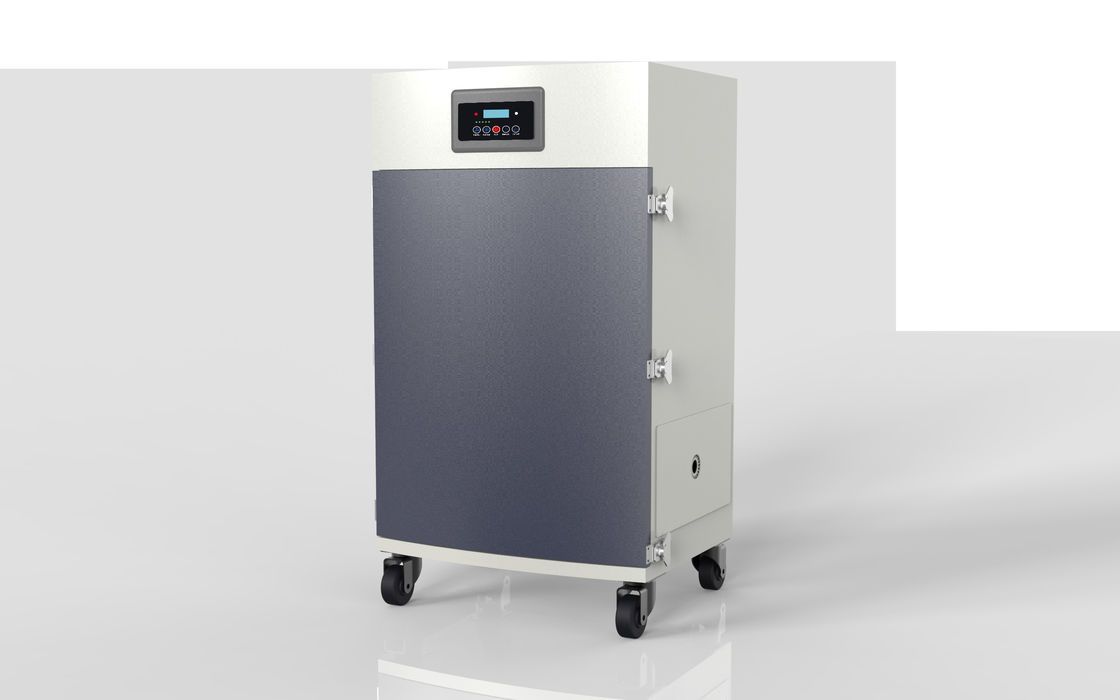

Product part picture:
