Lightweight 11kg HEPA Fume Extractor 80W Laser Marking Fume Extractor

Lightweight 11kg HEPA Fume Extractor 80W Laser Marking Fume Extractor

Lightweight 11kg HEPA Fume Extractor 80W Laser Marking Fume Extractor
Lightweight 11kg HEPA Fume Extractor 80W Laser Marking Fume Extractor
Lightweight 11kg HEPA Fume Extractor 80W Laser Marking Fume Extractor
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Power: 80w Voltage: 110/220 V
Warranty: 2 Years Dimension: 340*265*480mm
Weight: 11kg Noise: 57db
Air Flow: 220 M3/H Filter: 2 Layers
Application: Soldering, Laser Cutting,
High Light:

11kg Laser Marking Fume Extractor

,

80W Laser Marking Fume Extractor

,

Lightweight HEPA Fume Extractor

Laser Soldering Cutting Marking Smoke Purifier Portable Arm 80w Great Air Flow Lightweight Machine





Features:



1.Rapid purification by multi-layer filtration

2.All three filters can be replaced separately

3.Universal smoking arm, random orientation positioning

4.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation

5.Special alloy impeller, anti-corrosion, stable operation





Instructions:



Power(W) 80
Dimension(mm) 340*265*480
Air Flow(m3/h) 220
Noise(db) <57
Voltage 110/220
No-load speed(r/min) 5800
Wind spped(m/s) 17
Weight(kg) 11
Negative pressure(pa) 1800


Advantages:





1Portable tube and hood,choice suitable accessories, various specifications tube various materials hood.

2 Self-developed brushless dc motor,no need to change carbon brush,save more power consumpution,able to working 40000hours continuously

3.Easy to set tp and use, do not need professionl to install, with replaceable filter,save more service life.
4.Removabel hook and cover,change the filter and check the filter condition easyier

5.Durable mental frame structure,firm and unshaped,small footprint





FAQ:



Q:Can smoking pipes be shortened or lengthened at will?

A:It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)





Q:What are the diameter specifications of smoking pipe?

A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.



Q:What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?

A:Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light,great looking, high temperature resistant, high price.



Q:Does the size of the pipe affect the effectiveness of smoking?

A:Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.



Q:Is the product influenced by the environment that affects the smoking effect?

A:Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking



Q:If the influence of fans and air conditioners is unavoidable, what methods can be used to solve the problem?

A:Use a smoking hood to block the influence of peripheral wind (air flow) on it



Q:How far is the smoke cover from the smoke point of the smoke purification system better?

A:Smoking cover (mouth) with the distance of unborn smoke point is better in 5-15 cm.



Product part picture:

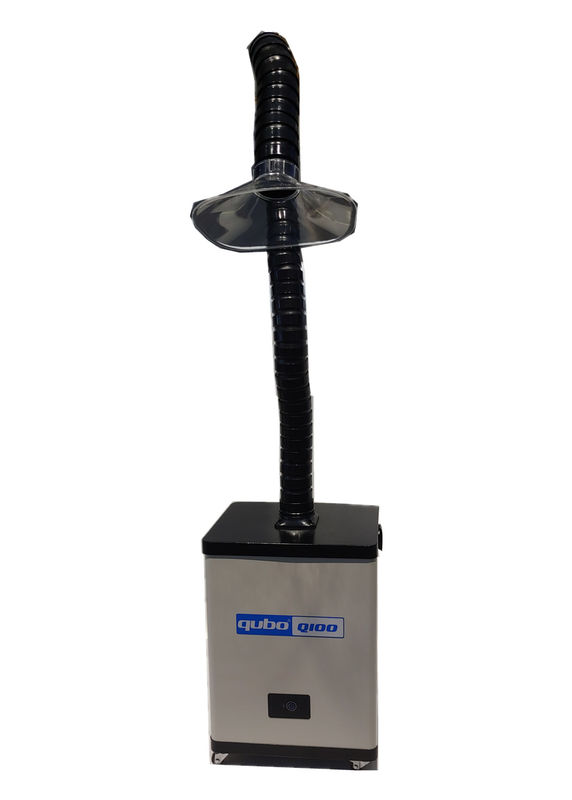

Lightweight 11kg HEPA Fume Extractor 80W Laser Marking Fume Extractor 0

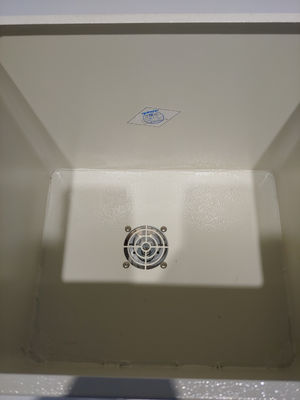

Lightweight 11kg HEPA Fume Extractor 80W Laser Marking Fume Extractor 1

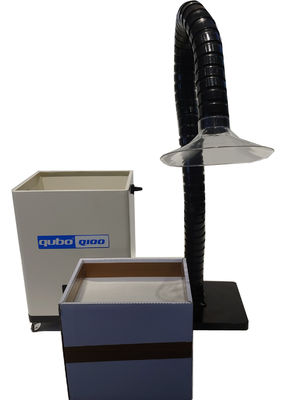

Lightweight 11kg HEPA Fume Extractor 80W Laser Marking Fume Extractor 2
