| Place of Origin: | China |
| Brand Name: | Fumego |
| Certification: | CE ROHS |
| Model Number: | FL350C-1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| After-sales Service Provided: | Online Support | Power: | 330W |
|---|---|---|---|
| Noise: | 64 Db | Warranty: | 2 Years |
| Voltage: | 110/220 V | Application: | Soldering, Big Laser Cutting, Welding Plant |
| Weight: | 15 Kg | Filter Efficiency: | 99.97% |
| High Light: | 4 Layers Filters Mobile Fume Extractor,Customizable Mobile Fume Extractor,Customizable Smoke Fume Extractor |
||
Laser Fume Purifier Extractor Customizable 4 Layers Filters Smoke Absorber
Instruction:
1, Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way;
2, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
3, All mental material shell, durable and sturdy;
4, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.
5, Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution;
6, Using noise reduction structure design, to keep working environment quiet;
Specifications:
| Model | Fume extractor FL350C-1 |
| Power | 330 W |
| Air flow | 350 m³/h |
| Dimension | 400*300*360 mm |
| Voltage | 110/220 V |
| Noise | 63 db |
| Weight | 15 kg |
| Filters | 4 layers |
| Size and Frequency to replace | |
| Pre-filter | 365*180*25 mm 7-60 days |
| Middle filter | 365*175*55 mm 3-6 months |
| HEPA filter | 365*195*250mm 3-6 months |
| Usage | Manual soldering, small Laser machine and Soldering robot |
|
Air flow speed
|
18m/s |
| No load Speed | 6500rpm |
| Negative pressure | 2400Pa |
| Air inlet port | 1*75mm |
Features:
1, Assembled with DC brushless motor, which will have more stable performance and longer life;
2, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.
3, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem happened if the machine is out of work.
4, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow.
5, Saving energy and cost, lower noise and larger suction power;
6, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;
FAQ:
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Why choose Fumego?
A: Lower using cost and longer machine life.
Q: What should we do if the suction power can’t clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
Q: Do you do OEM?
A: Yes
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.
Q: Why should we use fume extractor?
A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.
Q:Is it easy to purchase the accessories for the machine?
A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.
Q: How long will the machine keep work?
A: At least 8 years.

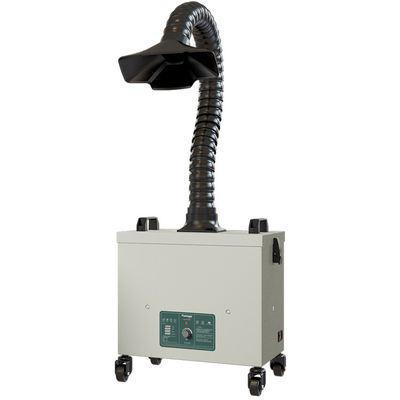

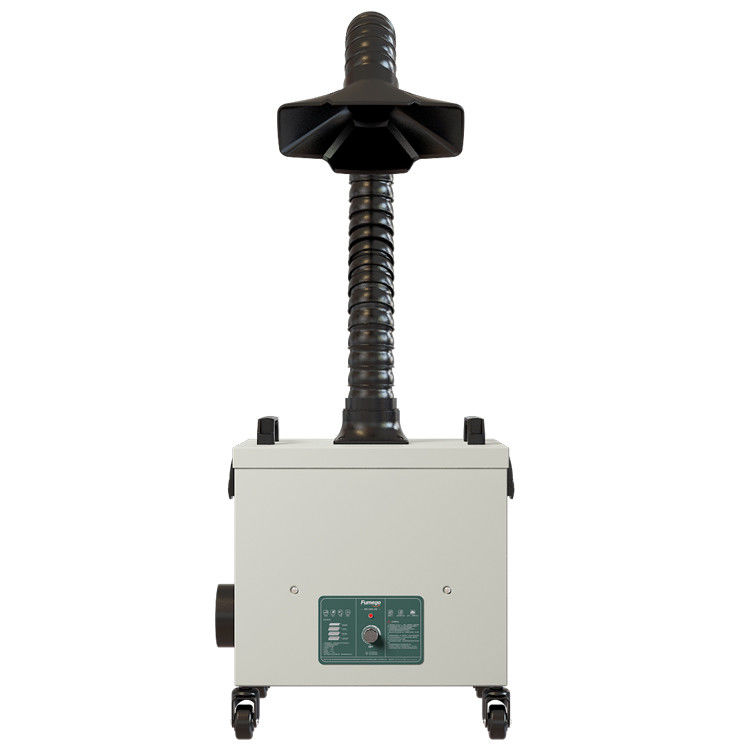

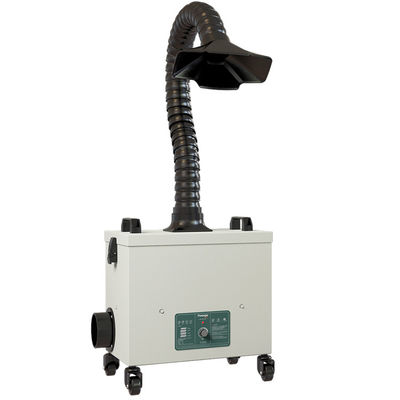

Product picture:
