Fumego Qubo Laser Dust Collector With Big Capacity Dust Collecting Bag And Observing Window

Fumego Qubo Laser Dust Collector With Big Capacity Dust Collecting Bag And Observing Window

Fumego Qubo Laser Dust Collector With Big Capacity Dust Collecting Bag And Observing Window
Fumego Qubo Laser Dust Collector With Big Capacity Dust Collecting Bag And Observing Window
Fumego Qubo Laser Dust Collector With Big Capacity Dust Collecting Bag And Observing Window
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q480
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Noise: <70 Db Application: Polishing Cutting
Power: 350w Air Flow: 480m3/h
Weight: 42 Kg Filter: 1 Layer
Dimensions: 550*415*920 Mm
High Light:

Fumego Qubo Laser Fume Extractor

,

550*415*920mm Laser Fume Extractor

Laser Polishing Cutting Dust Collector Micro Computer Control Digital Display With Observing Window



Features:



1.Noise canceling design,quieter working place

2.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation

3, Multilayer filter design,make sure more thorogh purification

4,Brushless DC moter,stable long service life

5.Special alloy impeller, anti-corrosion, stable operation



Instructions:



Power(W)  350w
Dimension(mm) 550*415*920
Air Flow(m3/h) 480
Noise(db) <70
Voltage 110/220
No-load speed(r/min) 4200
Wind spped(m/s) 21
Weight(kg) 42
Negative pressure(pa) 2500


Advantages:



1.Removabel hook and cover,change the filter and check the filter condition easyier

2.Durable mental frame structure,firm and unshaped,small footprint

3.Compact design machine with 4 universal wheel under,easy to move and storage

4.Replaceable tube and hood,choice suitable accessories, various specifications tube various materials hood.

5.Noise canceling design low noise,only the volume of ordinary speech,More quiet workshop, reduce the surrounding complaints.







FAQ

Q:How does it work?

A:Physical principle: interception → activated carbon adsorption → clean air through layers of filters



Q:What is the approximate life of the product in continuous operation?

A:The motor life is 40,000 hours (continuous 24 hours) will not be broken, need to consider environmental factors. Usually for 4-5 years it won't be a problem



Q:How long is the tube standard configuration?

A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).



Q:Can smoking pipes be shortened or lengthened at will?

A:It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)





Q:What are the diameter specifications of smoking pipe?

A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.

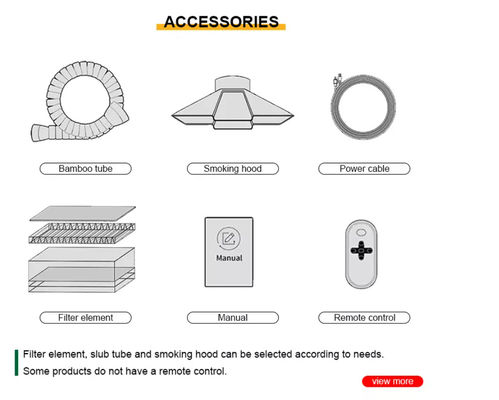

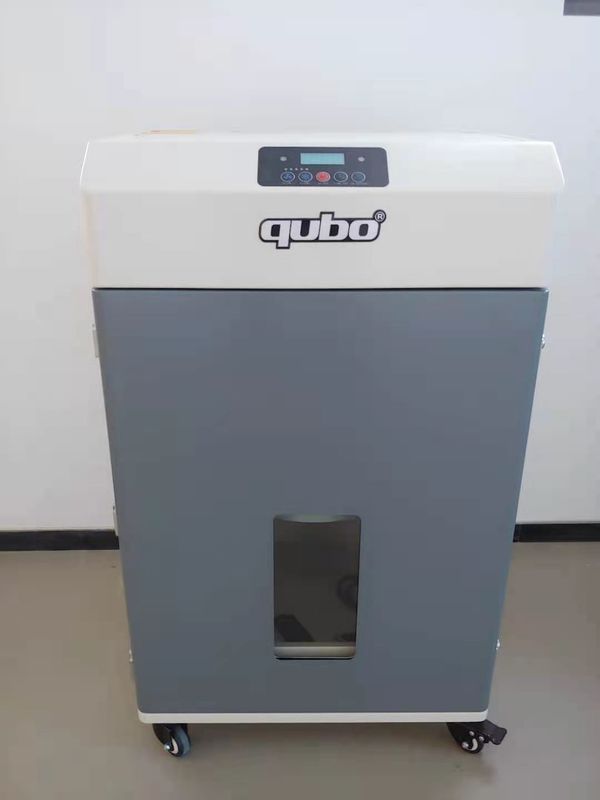

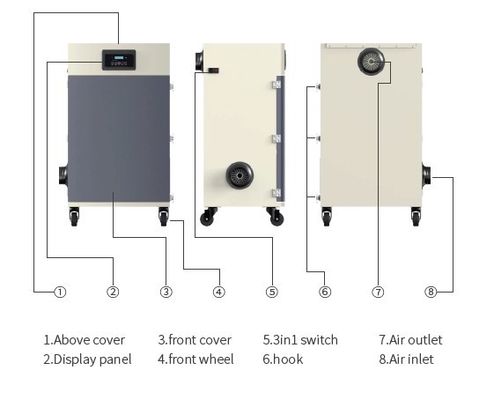

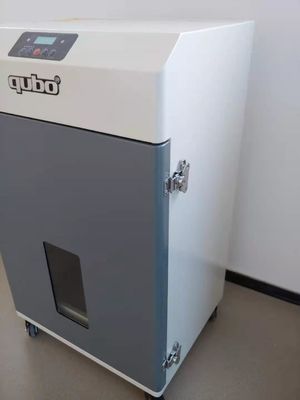

Product part picture:



Fumego Qubo Laser Dust Collector With Big Capacity Dust Collecting Bag And Observing Window 0Fumego Qubo Laser Dust Collector With Big Capacity Dust Collecting Bag And Observing Window 1Fumego Qubo Laser Dust Collector With Big Capacity Dust Collecting Bag And Observing Window 2
