Place of Origin: | China |
Brand Name: | Fumego Qubo |
Certification: | CE ROHS |
Model Number: | Q570 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Carton box package |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100pcs per week |
Dimensions: | 550*430*1060 Mm | Air Flow: | 620m3/h |
---|---|---|---|
Application: | Marking Cutting Engraving | Noise: | <75db |
Filter: | 9 Layers | Weight: | 75 Kg |
Power: | 700w | ||
High Light: | 3000Pa Portable Fume Extraction,6500r/min Portable Fume Extraction,3000Pa Laser Air Purifier |
Laser Marking Cutting Engraving Fume Extractor For Medium Machine With Observing Window
Features:
1.Rapid purification by multi-layer filtration
2.Universal smoking arm, random orientation positioning
3.Special alloy impeller, anti-corrosion, stable operation
4.All three filters can be replaced separately
5.9 layers filters can be separate replace,high efficient sterilization make work place safer
Instructions:
Power(W) | 700w |
Dimension(mm) | 550*430*1060 |
Air Flow(m3/h) | 620 |
Noise(db) | <75 |
Voltage | 110/220 |
No-load speed(r/min) | 6500 |
Wind spped(m/s) | 27 |
Weight(kg) | 75 |
Negative pressure(Pa) |
3000 |
Advantages:
1.Portable tube and hood,choice suitable accessories, various specifications tube various materials hood.
2.Noise canceling design low noise,only the volume of ordinary speech,More quiet workshop, reduce the surrounding complaints.
3.Compact design machine with 4 universal wheel under,easy to move and storage
4.Removabel hook and cover,change the filter and check the filter condition easyier
5.Durable mental frame structure,firm and unshaped,small footprint
FAQ
Q:Under what circumstances can I return it?
A: the same quality problem has not been solved for more than 4 times, we can return it.
Q:Under what circumstances are returns not allowed?
A:Damaged appearance or packaging, beyond the probation period (usually 3 days) is not allowed to return.
Q:Is it difficult to maintain?
A:Check whether the pipe and interface are sealed, and replace the filter element regularly.
Q:Can it be used in extremely humid or corrosive environment?
A:No, because in a particularly humid environment, moisture or corrosive gas will damage the filter element and the internal components of the machine; but usually in spring, humid weather, such as "southerly days", will not affect the use.
Q:Can it be used in high temperature environment?
A:The high temperature should be divided into instantaneous high temperature and long-term high temperature, the temperature within 60 degrees can be used; the temperature over 60 degrees for a long time is not recommended, because it may lead to fire.
Q:When the filter element needs to be replaced, will it give an alarm?
A:The indicator light of digital display control panel will flash red light and give out alarm sound.
Q:Can the pipe of smoke and dust move back and forth with the laser head?
A:In principle, it can, but it can't if auxiliary gas is needed

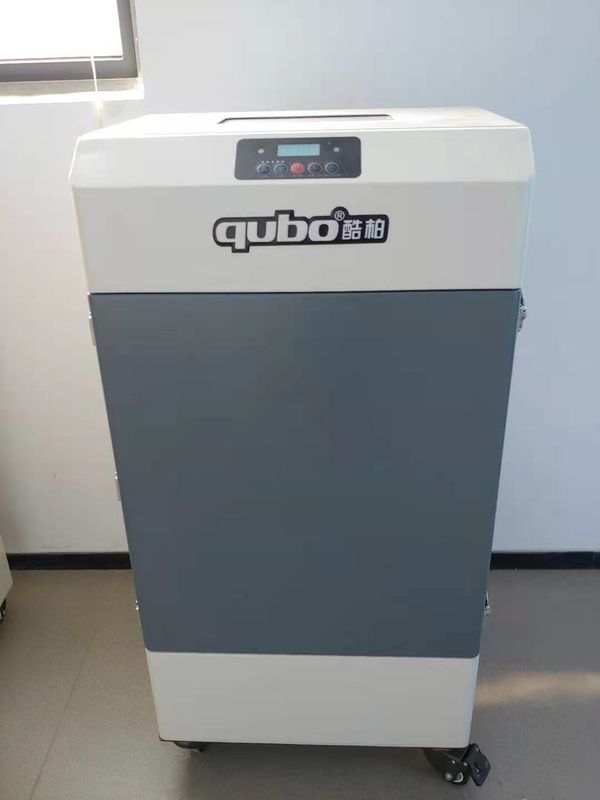

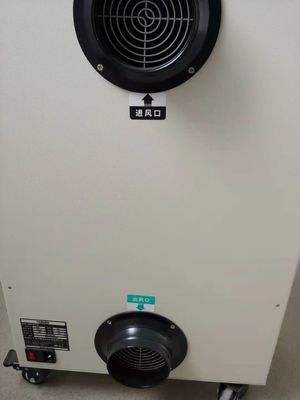

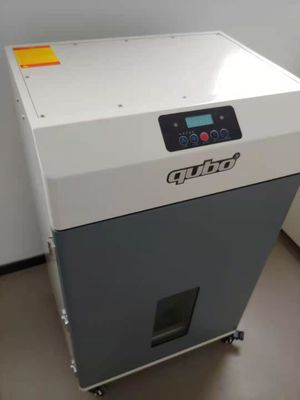

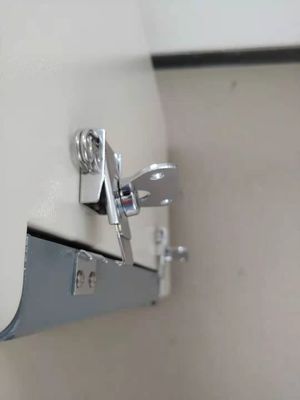

Product part picture:
