700W 620m3/H Laser Fume Extractor Medium Size

700W 620m3/H Laser Fume Extractor Medium Size

700W 620m3/H Laser Fume Extractor Medium Size
700W 620m3/H Laser Fume Extractor Medium Size
700W 620m3/H Laser Fume Extractor Medium Size
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q570
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Weight: 75 Kg Air Flow: 620m3/h
Dimensions: 550*430*1060 Mm Filter: 9 Layers
Noise: <75db Power: 700w
Application: Marking Cutting Engraving
High Light:

620m3/H Laser Fume Extractor


700W Laser Fume Extractor


620m3/H Laser Fume Filter

Medium Laser Marking Cutting Large Tin Furnace Fume Extractor Medium Size 1 For 10 Station




1.Durable mental frame structure

2.Multiple filtration design,rapid purification

3.Long service life, low cost, continuous 24-hour work, can use 40000 hours

4. High negative pressure, high flow, small volume, light weight, easy installation, flexible filter replacement.

5.9 layers filters can be separate replace,high efficient sterilization make work place safer





Power(W)  700w
Dimension(mm) 550*430*1060
Air Flow(m3/h) 620
Noise(db) <75
Voltage 110/220
No-load speed(r/min) 6500
Wind spped(m/s) 27
Weight(kg) 75

Negative pressure(Pa)




1.Multiple filtration ensures complete purification of harmful smoke and dust

2.Noise canceling design,quieter working place

3.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation

4, Multilayer filter design,make sure more thorogh purification
5,Brushless DC moter,stable long service life







Q:Does the size of the pipe affect the effectiveness of smoking?

A:Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.


Q:Is the product influenced by the environment that affects the smoking effect?

A:Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking


Q:If the influence of fans and air conditioners is unavoidable, what methods can be used to solve the problem?

A:Use a smoking hood to block the influence of peripheral wind (air flow) on it


Q:How far is the smoke cover from the smoke point of the smoke purification system better?

A:Smoking cover (mouth) with the distance of unborn smoke point is better in 5-15 cm.


Q:Can the filter element be replaced separately?

A:Yes, each layer can be replaced independently


Q:Is it difficult to install the product? Do you need a professional to install it?

A:Small equipment refer to the manual, connected to the power supply can be used. No professional installation is required. Large equipment XL-3000/XL-5000 will be installed by professional personnel on site.

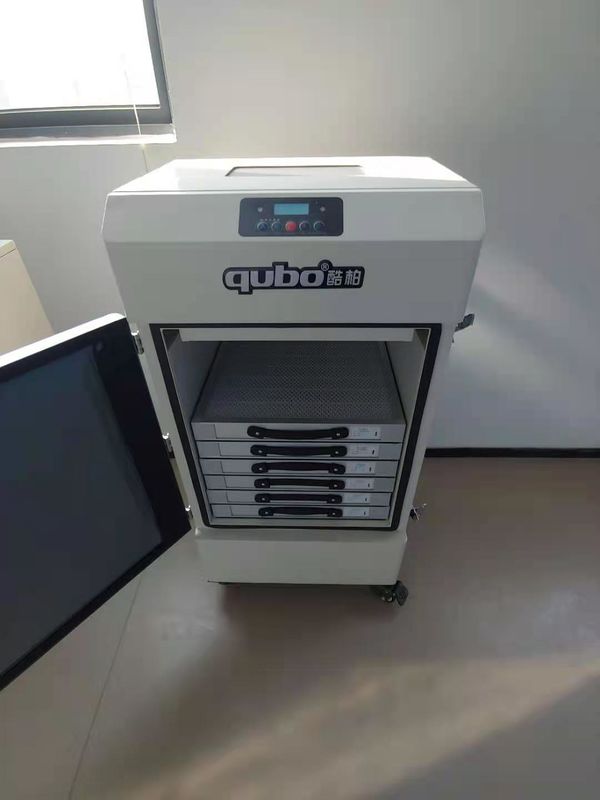

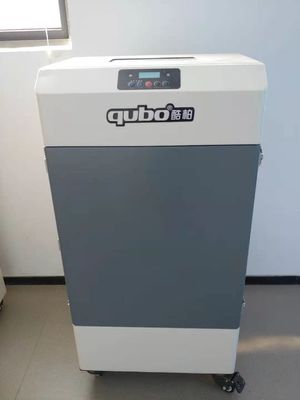

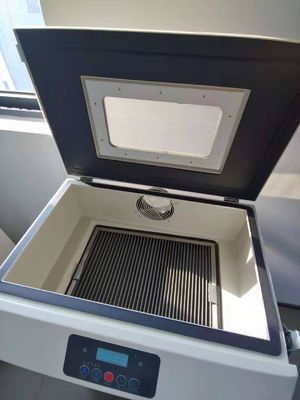

Product part picture:


700W 620m3/H Laser Fume Extractor Medium Size 0700W 620m3/H Laser Fume Extractor Medium Size 1700W 620m3/H Laser Fume Extractor Medium Size 2
