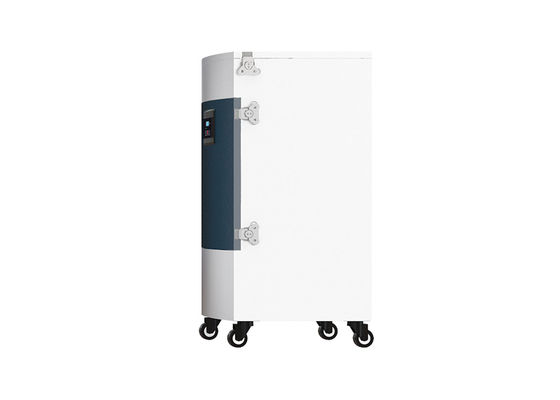

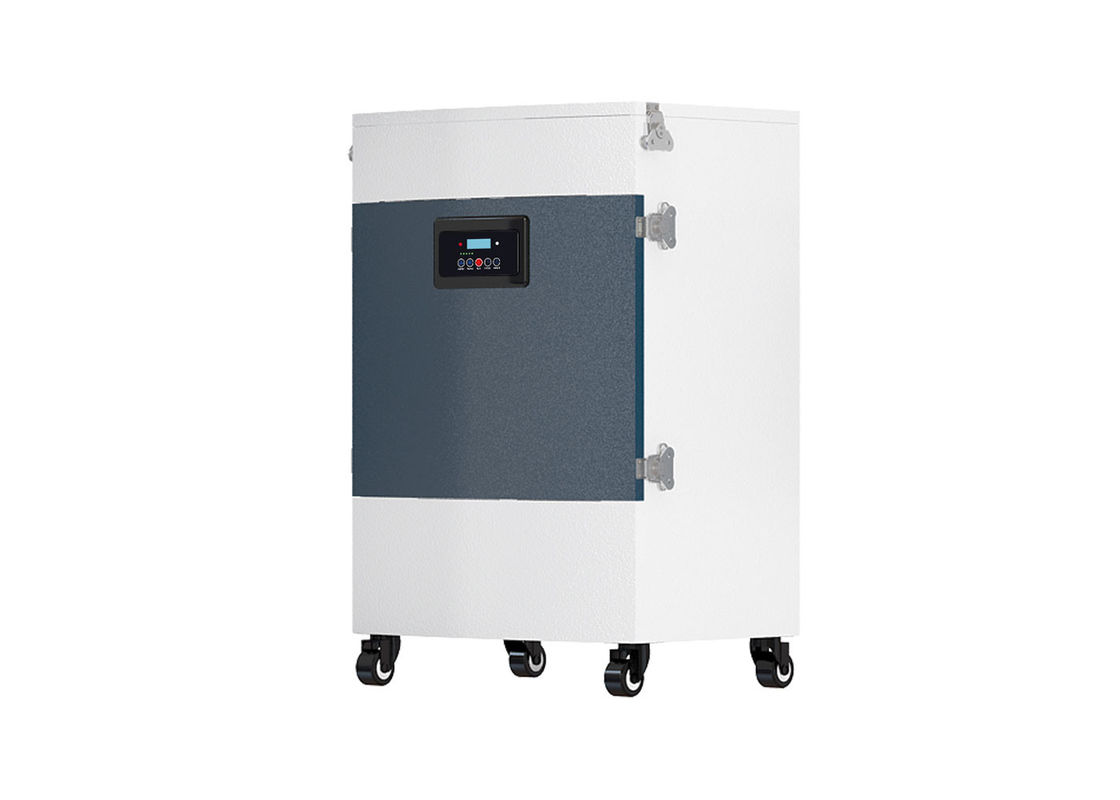

5 Layers 450w Explosion Proof Dust Collector Cable Connect

5 Layers 450w Explosion Proof Dust Collector Cable Connect

5 Layers 450w Explosion Proof Dust Collector Cable Connect
5 Layers 450w Explosion Proof Dust Collector Cable Connect
5 Layers 450w Explosion Proof Dust Collector Cable Connect
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL-500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Noise: 70 Db Air Flow: 700 M3/H
Dimension: 550*440*885mm Power: 450 W
Application: Soldering, Big Laser Cutting, Welding Plant Material: Mental Shell
Warranty: 2 Years Filter: 5 Layers
Weight: 60kg Voltage: 110/220 V
High Light:

450W Explosion Proof Dust Collector


ROHS Explosion Proof Dust Collector

Co2 Laser Air Extractor Fume filter Laser Smoke Evacuator





1,The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

2, Imported integrated AC fan, stable performance and longer life;

3, Portable because it assemble with 4 wheels;

4, High negative pressure;

5, The machine is in a very small dimension, never occupying space;

6, No need to assemble, plug and turn it on, start to work;

7, The filter element adopts a return structure and can hold dust on all sides;




Model FL-300 FL-500 FL-700
Filter 3 Layers 5 Layers 6 Layers
Weight 36.7kg 60kg 70kg



425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 450m³/h 700m³/h 750m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)


protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter No No 450*380*100mm

Activated carbon


450*380*50mm 450*380*50mm*2 450*380*50mm*2



1, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

2, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

3, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

4, Layers of different filters, clean air fasters and more efficient;

Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.




Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

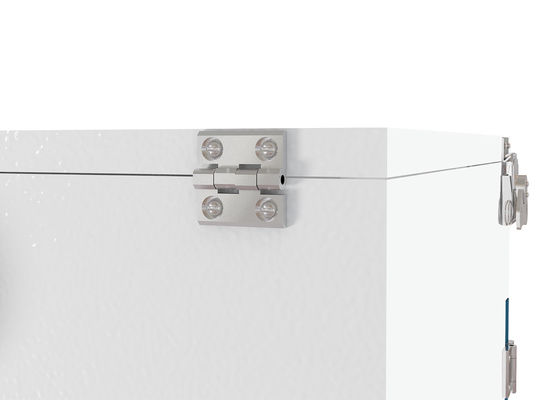

Product part picture:


5 Layers 450w Explosion Proof Dust Collector Cable Connect 0
