Double Suction Arm ROHS Laser Cutting Fume Extractor Movable

Double Suction Arm ROHS Laser Cutting Fume Extractor Movable

Double Suction Arm ROHS Laser Cutting Fume Extractor Movable
Double Suction Arm ROHS Laser Cutting Fume Extractor Movable
Double Suction Arm ROHS Laser Cutting Fume Extractor Movable
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: Q200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Air Flow: 2*143m3/h Certificate: CE ROHS
Voltage: 110/220 V Warranty: 2 Years
Noise: <62 Weight: 12kg
Color: Customized Power: 80 W
Usage: Laser Marking Welding
Highlight:

ROHS Laser Cutting Fume Extractor

,

Fumego Laser Cutting Fume Extractor

,

ROHS Laser Dust Collector

Laser Cutting Marking Fume Purifier Double Suction Arm Replace Tube Lightweight Movable



Features:

1 Easy to set tp and use, do not need professionl to install, with replaceable filter,save more service life.

2 Various types of materials make you have more choices to smole hood,silicone hood acrylic hood alloy hood.

3 Self-developed brushless dc motor,no need to change carbon brush,save more power consumpution,able to working 40000hours continuously

4 wide use asering welding beauty salon,has 4 whells easy to move and opreation.

5 2 layers filters can be separate replace,high efficient sterilization make work place safer.



Specifications:



Model Q200
Power 150W
Air flow 143*2m³/h
Dimension 340*265*480mm
Voltage 110/220 V
Noise 62db
Weight 12kg
Filters 2 layers
Size and Frequency to replace Size and Frequency to replace
Pre-filter 270*210*9mm  7-60 days
HEPA filter 295*235*265mm  3-6 months
 Negative pressure 2000pa
Application Dental Aerosol extractor, hospital and beauty parlor



Product instruction:



1, Multilayer filter design,make sure more thorogh purification

2, The filter element adopts a return structure and can hold dust on all sides;

3, Universal smoking arm,easy operation

4, Activated carbon deodorization sterilization



FAQ:



Q:What is the approximate life of the product in continuous operation?

A:The motor life is 40,000 hours (continuous 24 hours) will not be broken, need to consider environmental factors. Usually for 4-5 years it won't be a problem



Q:How long is the tube standard configuration?

A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).



Q:Can smoking pipes be shortened or lengthened at will?

A:It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)





Q:What are the diameter specifications of smoking pipe?

A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.



Q:What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?

A:Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light, beautiful, high temperature resistant, high price.

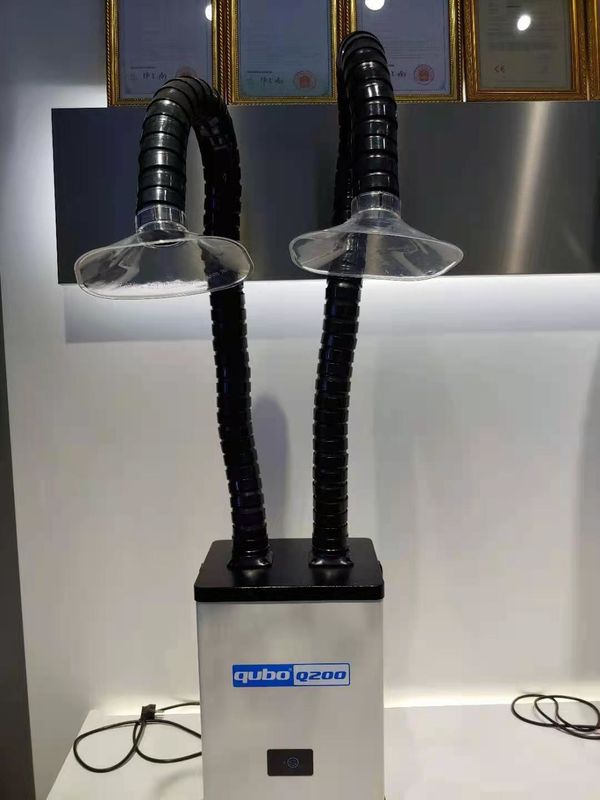

Product picture:



Double Suction Arm ROHS Laser Cutting Fume Extractor Movable 0Double Suction Arm ROHS Laser Cutting Fume Extractor Movable 1





Double Suction Arm ROHS Laser Cutting Fume Extractor Movable 2Double Suction Arm ROHS Laser Cutting Fume Extractor Movable 3Double Suction Arm ROHS Laser Cutting Fume Extractor Movable 4
