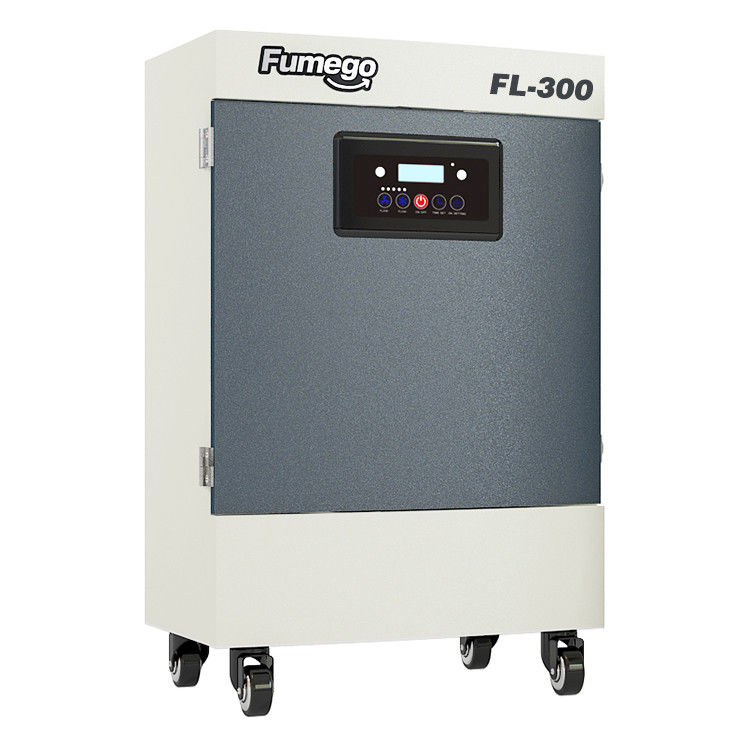

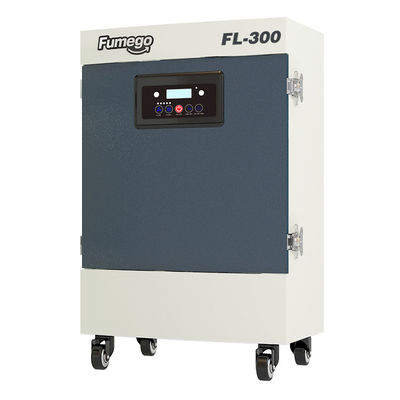

High Power 1.5kw Air Fume Extractor For Industrial Production Line

High Power 1.5kw Air Fume Extractor For Industrial Production Line

High Power 1.5kw Air Fume Extractor For Industrial Production Line
High Power 1.5kw Air Fume Extractor For Industrial Production Line
High Power 1.5kw Air Fume Extractor For Industrial Production Line
Product Details:
Place of Origin: CHINA
Brand Name: Fumego
Certification: CE PONY ISO
Model Number: FL-300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 500-800
Packaging Details: Wood box
Delivery Time: 10-15
Supply Ability: 5000 units per month
Contact Now
Detailed Product Description
Material: Stainless Power: 1.5kw
Application: Laser Cutting Soldering Marking Keyword: Laser Cutting Machine Air Filter
Noise: 65dB Color: White And Grey
Material: Metal+Plastic Certification: CE
High Light:

1.5kw Air Fume Extractor

,

0.6 MPa Air Fume Extractor

,

1.5kw Fume Extractor Laser

High Power Laser Fume Extractor For Industrial Production Line





Product Advantages



1. The structure of house is compact, reasonable and optimized.

2. Auto cleaning is convenient, it makes sure that the production process is continuous and high efficiency.

3. The dust bin is sealed, it is convenient to collect the dust and dismount the dust bucket.

4. PLC text screen controls operating system, it is convenient and automated.

5. Selecting imported polyester material and adding PTFE on the surface of filtering medium, it comes true

high filtering precision and filtration efficiency of 99.9%.



6. CE and RoHS certification is available. The filter cartridge has the test report.



7. Application for small power laser metal and stone cutting dust, thin plasma steel pipe cutting fume.



Description



Air Volume 3000 ± 100 M³ / H
Treatment of Air Flow 2400m3/H
Motor Power 1.5kw
Voltage 3*380V/50Hz or 3*220V/60Hz
Filter Area 20m³
Filter Medium Polyester +PTFE
Compressed Air 0.5~0.6 MPa
Cleaning Way Automatic Cleaning
Noise ≤72±5dB(a)
Weight 225±10kgs
Dimensions(Excluding Suction Arm) 720×700×1745mm



Operation place:


Applied to fixed stations, training school, welding room or insufficient room on ground, it can be fixed on walls or pillars.

Structural composition:


Mainly consist of :versatile fume extraction arm( We can equip this purifier with 5m,6m extension pole arms via 3M steel structure radial arm on the bottom of purifier except for normal 2m, 3m, 4m ones, then equip requested flexible fume extraction arm) high temperature resistance vacuum hose, exhaust hood with volume damper, fire proof high efficiency filter cartridge, new Korean castors with brake apparatus, flue dust drawer, fan, imported motor, electric cabinet and so on.



FAQ:


Q : Do you have after-sale service?
A : yes, we have perfect after-sale service for the products' all life.
Q : Where is your factory?
A: We are in Qingdao city,Shandong province,China.
Q: Are you a manufacturer or a trading company
A: We are manufacturer.
Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
