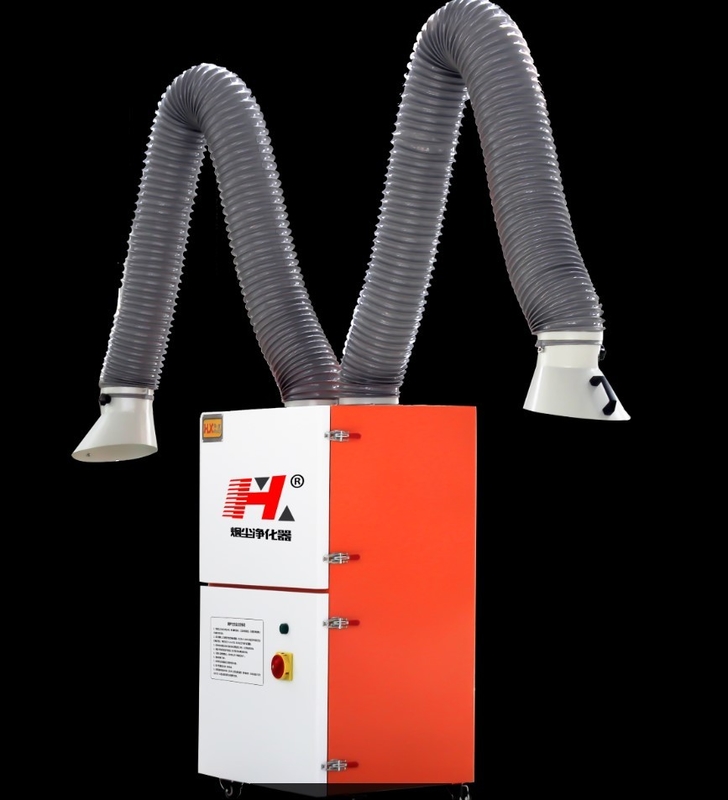

Microcomputer Chip Control Welding Fume Extractor With Two Suction Pipes

Microcomputer Chip Control Welding Fume Extractor With Two Suction Pipes

  • Microcomputer Chip Control Welding Fume Extractor With Two Suction Pipes
Microcomputer Chip Control Welding Fume Extractor With Two Suction Pipes
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE FCC ROHS
Model Number: T1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1000
Packaging Details: Wooden package
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Features: With One Self Cleaning System Cylinder Filter Power: 2200W
Material: Mental Shell Air Flow: 3000 M3/H
Dimension: 50*65*110 Usage: Welding Fume Dust
High Light:

Two Pipes Welding Fume Extractor


Microcomputer Chip Control Welding Fume Extractor


Microcomputer Chip Control Welding Dust Collector

Cheap Welding Fume Extractor Dust Collector With Two Suction Pipes





1, Layers of different filters, clean air fasters and more efficient;

Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

2, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;

3, All mental material shell, durable and sturdy;

4, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

5, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

6, Using noise reduction structure design, to keep working environment quiet;

7, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

8, Assembled with DC brushless motor, which will have more stable performance and longer life;

9, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

10, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

11, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;

12, Saving energy and cost, lower noise and larger suction power;

13, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

14, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.


Model FL-1200 FL-1500 FL-2000
Filter 4Layers 4Layers 4Layers
Weight 146kg 155kg 155kg



750*565*1535mm 750*565*1535mm 750*565*1535mm
Air Flow 800m³/h 1200m³/h 1500m³/h
Noise <67dB <70dB <75dB
Power 900W 1300W 2000W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)

Fire proof

protection net

660*523*50(mm) 660*523*50(mm) 660*523*50(mm)
2nd Layer Bag pocket (22 layers) 550*430mm 550*430mm 550*430mm
PP Medium filter 660*523*120mm 660*523*120mm 660*523*120mm
Glass fiber filter No No No

Activated carbon


660*523*100mm 660*523*100mm 660*523*100mm




Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price. Whats more, Our product have several layers of filters and special active carbon filter which can highly remove bad smells and

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life. We have 8 years after-sales warranty.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.
