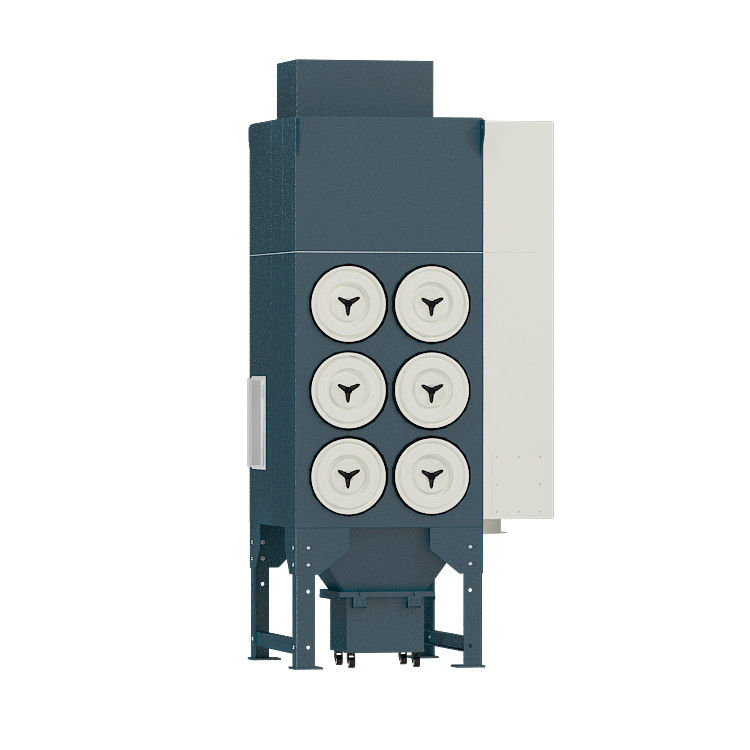

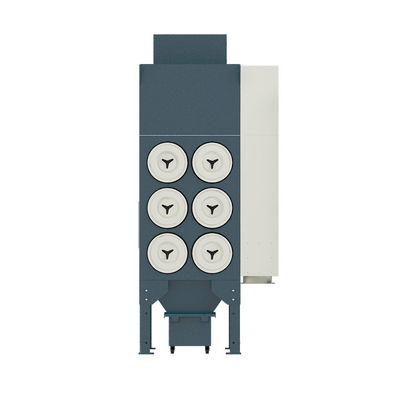

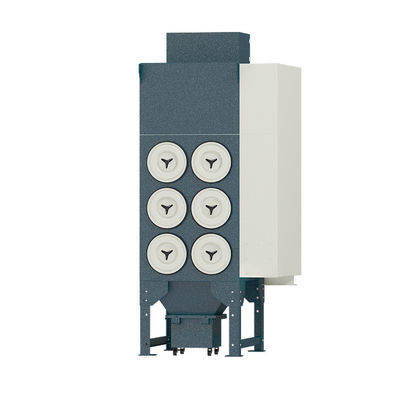

7500W Pulse Back Blowing Laser Dust Collector For Woodworking

7500W Pulse Back Blowing Laser Dust Collector For Woodworking

7500W Pulse Back Blowing Laser Dust Collector For Woodworking
7500W Pulse Back Blowing Laser Dust Collector For Woodworking
7500W Pulse Back Blowing Laser Dust Collector For Woodworking
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL5000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 10pcs per week
Contact Now
Detailed Product Description
Voltage: 380V/ 50 HZ Noise: 76 Db
Weight: 880 Kg Air Volume: 5000 M³/h
Keyword: HNP Power: 7500W
Type: Dust Collector Warrenty: 3 Years
Usage: Laser Equipment Woodworking Polishing Area System: Pulse Jet Self-cleaning System
High Light:

7500W Laser Dust Collector


Pulse Back Blowing Laser Dust Collector


7500W Woodworking Dust Collector

High Power Laser Dust Collector With 6 Cylinder Filter And Active Carbon Filter



Application: Explosion Risk Dust Extractor




Pulse back blowing function

High quality, long life, high negative pressure

Large flow rate, long service life of filter element and good filtering effect

Field of application:

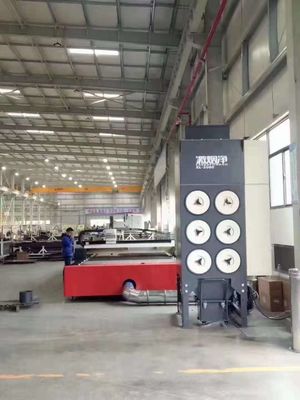

Medium and large laser cutting, medium and large laser welding

Product function:

Metal frame body structure, durable

Pulse back blowing function, longer service life of filter element

table and reliable operation, large suction air flow

Dust collection and filtration, fume filtering

Active carbon deodorization,

Flame retardant filter cartridge




Power(w) 7500



Air Flow(m3/h) 7500
Noise level (db) <76
Voltage(v) AC380V/220/50Hz/60hz 3phse
No load sped(r/min) 2950
Single port speed(m/s) 18
Weight(kg) 880
Negative Pressure(pa)



Consumption filters

(P)filter layers 7

inner machine

Replace time

Flame retardant carltridges *6
324*213*660 3-6 months

inner machine

Replace time

Active carbon filters

660*523*200mm 6-12 months




1, The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

2, It is also a dust collector, bad smell remover, and fire proof;

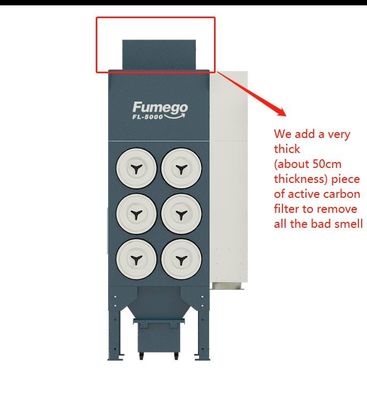

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

3, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

4, Using noise reduction structure design, to keep working environment quiet;

5, It can be used for fumes comes out from 3-4 Laser equipment in the same time.




Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price. Whats more, Our product have several layers of filters and special active carbon filter which can highly remove bad smells and

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life. We have 8 years after-sales warranty.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.
