UV Lamp Deodorization 3000 M3/H Laser Dust Collector For Soldering

UV Lamp Deodorization 3000 M3/H Laser Dust Collector For Soldering

UV Lamp Deodorization 3000 M3/H Laser Dust Collector For Soldering
UV Lamp Deodorization 3000 M3/H Laser Dust Collector For Soldering
UV Lamp Deodorization 3000 M3/H Laser Dust Collector For Soldering
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL-F2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 10pcs per week
Contact Now
Detailed Product Description
Air Flow: 3000 M³/h Color: Grey And White
Type: Industrial Power Supply: 380 V 50 HZ
Weight: 540 Kg Application: Soldering, Big Laser Cutting, Welding Plant
Warranty: 2 Years Noise: 70 Db
Power: 2200 W Keyword: Pulse Jet Belowing Self-Cleaning System
High Light:

3000 M3/H Laser Dust Collector


UV Lamp Deodorization Laser Dust Collector


UV Lamp Deodorization Soldering Fume Extractor

Explosion Dust Collector With Two Cylinder Self-cleaning Pulse Jet Back Belowing System





Product features:

Pulse back blowing function

High quality, long life, high negative pressure

Large flow rate, long service life of filter element and good filtering effect


Field of application:

Medium and large laser cutting, medium and large laser welding, polishing


Product function:

Metal frame body structure, durable

Pulse back blowing function, longer service life of filter element

Stable and reliable operation, large suction air flow

Dust collection and filtration, fume filtering

Active carbon deodorization, UV lamp deodorization and sterilization

Flame retardant filter cartridge ,UV lamp




Power(w) 2200



Air Flow(m3/h) 3000
Noise level (db) <70
Voltage(v) AC380V/220/50Hz/60hz 3phse
No load sped(r/min) 2950
Single port speed(m/s) 17
Weight(kg) 540
Negative Pressure(pa) 2600

Consumption filters

(P)filter layers 4

inner machine

Replace time

Flame retardant carltridges *2
320*240*600 6-12 months

inner machine

Replace time

Active carbon filters

592*541*45mm 12-24 months

inner machine

Replace time

UV Light *3



Application: Big soldering and laser cutting machine.

UV lamps: 3 pcs 100W UV lamps, more than 9000 hours life time.




1, The machine have back blowing system, which can easily clean dust on the filters;

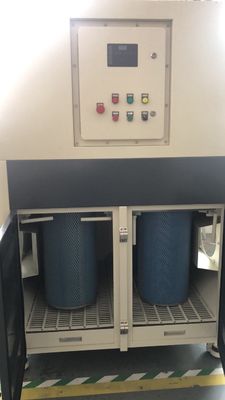

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

2, Imported integrated AC fan, stable performance and longer life;

3, Portable because it assemble with 4 wheels;

4, High negative pressure;

5, The machine is in a very small dimension, never occupying space;

6, No need to assemble, plug and turn it on, start to work;

7, The filter element adopts a return structure and can hold dust on all sides;

8, The fan speed is adjustable, timing function to turn on and off, and remote control;




Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price. Whats more, Our product have several layers of filters and special active carbon filter which can highly remove bad smells and

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life. We have 8 years after-sales warranty.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: How long will the machine keep work?

A: At least 8 years.
