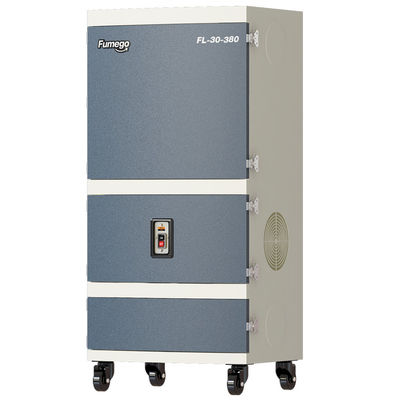

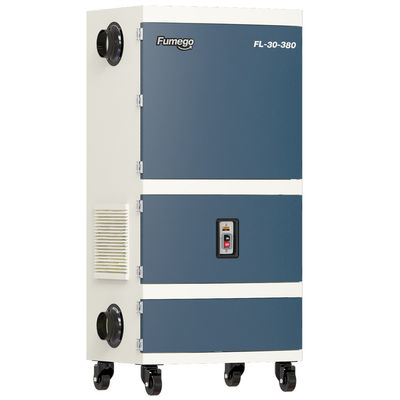

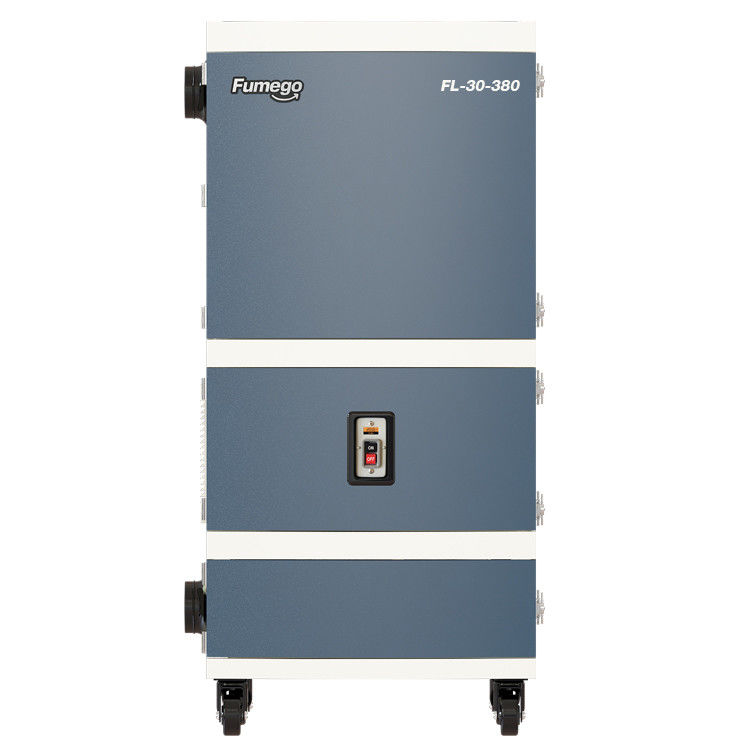

SMT Laser Fume Extractor With 3000PA High Negative Pressure

SMT Laser Fume Extractor With 3000PA High Negative Pressure

SMT Laser Fume Extractor With 3000PA High Negative Pressure
SMT Laser Fume Extractor With 3000PA High Negative Pressure
SMT Laser Fume Extractor With 3000PA High Negative Pressure
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL-22-380
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 10pcs per week
Contact Now
Detailed Product Description
Application: SMT, Wave-soldering, Big Laser Cutting, Welding Plant Noise: 57 Db
Voltage: 110/220 V Material: Alloy Material Mental Shell
Weight: 130 KG Type: Industrial Fume Extractor
Air Volume: 380 M³/h Keyword: HNP 22kpa
Power: 2200W Warrenty: 3 Years
High Light:

SMT Laser Fume Extractor


3000PA High Negative Pressure Fume Extractor


SMT Dust Fume Extractor

Laser Fume Extractor with 3000PA High Negative Pressure For Dust Collector​





1, Portable because it assemble with 4 wheels;

2, High negative pressure;

3, The machine is in a very small dimension, never occupying space;

4, No need to assemble, plug and turn it on, start to work;

5, The filter element adopts a return structure and can hold dust on all sides;

6, The fan speed is adjustable, timing function to turn on and off, and remote control;




Model FL-22-300 FL-30-380
Filter 4 Layers 4 Layers
Weight 130kg 130kg



600*480*1270mm 600*480*1270mm
Air Flow 275m³/h 390m³/h
Noise <57dB <58dB
Power 1.5KW 2.2KW
Negative Pressure 22kpa 30kpa
Voltage AC 110-220V AC 220-380V
Size of Filter (can be customized)


protection net

450*420*80 (mm) 450*420*80 (mm)
Bag / pocket filter(22 layers) 420*230mm 420*230mm
HEPA filter 450*420*100mm 450*420*100mm

Activated carbon


450*420*120mm 450*420*120mm

Application: Automatic industrialization, laser cutting, marking, welding.




1, Layers of different filters, clean air fasters and more efficient;

Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

2, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;

3, All mental material shell, durable and sturdy;

4, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

5, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

6, Using noise reduction structure design, to keep working environment quiet;

7, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

8, Assembled with DC brushless motor, which will have more stable performance and longer life;

9, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

10, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

11, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;

12, Saving energy and cost, lower noise and larger suction power;

13, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

14, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.




Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price. Whats more, Our product have several layers of filters and special active carbon filter which can highly remove bad smells and

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life. We have 8 years after-sales warranty.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes
