Place of Origin: | China |
Brand Name: | Fumego |
Certification: | CE ROHS |
Model Number: | FL3000 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Carton box package |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100pcs per week |
Noise: | 76 Db | Voltage: | 380V/ 50 HZ |
---|---|---|---|
Application: | SMT, Wave-soldering, Big Laser Cutting, Welding Plant | Warranty: | 2 Years |
Weight: | 760KG | Keyword: | HNP |
Air Volume: | 3000 M³/h | Power Supply: | 5500W |
Type: | Industrial | After Sales Service: | Online Service |
High Light: | 5500W Dust Fume Extractor,3000 M3/H Dust Fume Extractor,4 Cylinder Self Cleaning Fume Extractor |

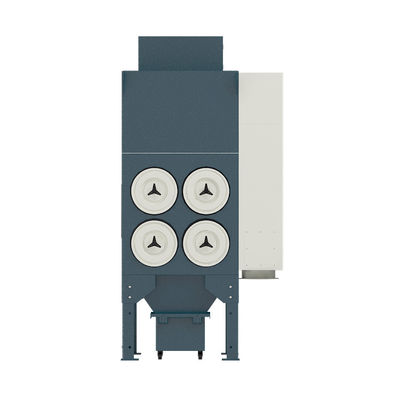

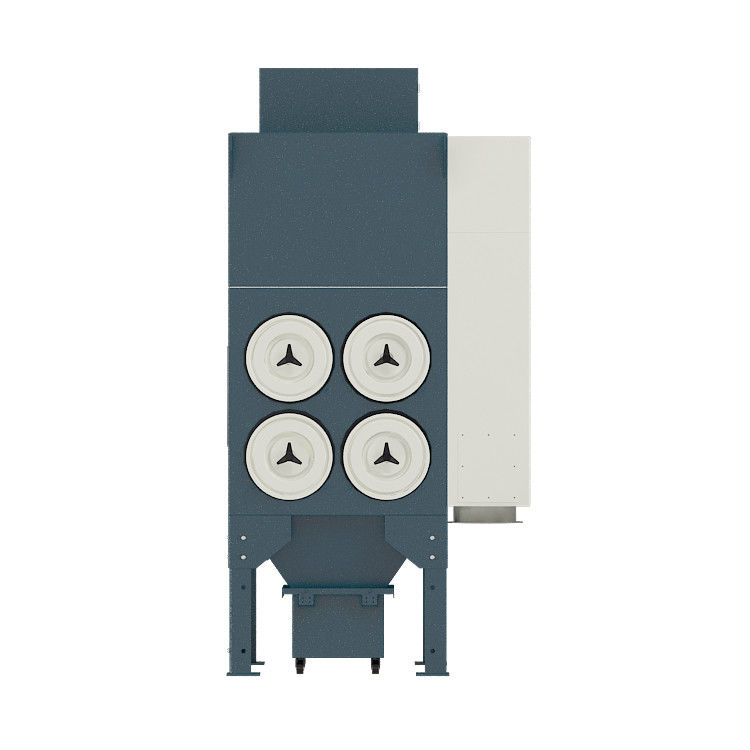

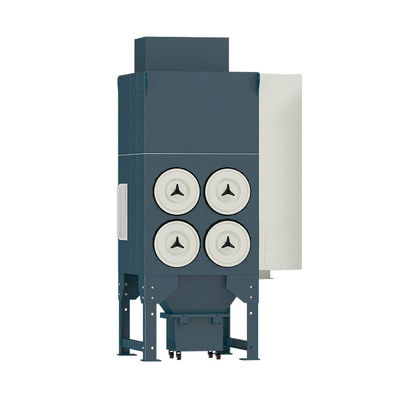

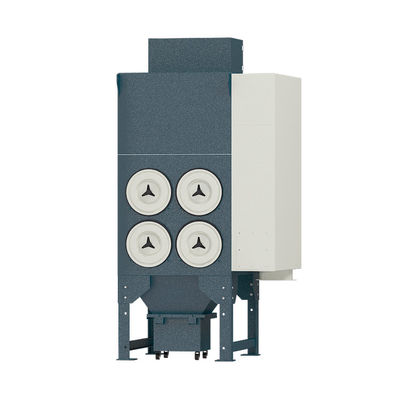

5500W Laser Dust Fume Extractor With 4 Cylinder Self-Cleaning System
Advantages:
1, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;
2, It is also a dust collector, bad smell remover, and fire proof;
We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.
3,The machine have back blowing system, which can easily clean dust on the filters;
Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.
4, Imported integrated AC fan, stable performance and longer life;
5, Portable because it assemble with 4 wheels;
6, High negative pressure;
7, The machine is in a very small dimension, never occupying space;
8, No need to assemble, plug and turn it on, start to work;
Specifications:
Power(w) | 5500 |
Dimension mm(l*w*h) |
1400*1280*2600mm |
Air Flow(m3/h) | 3000 |
Noise level (db) | <76 |
Voltage(v) | AC380V/220/50Hz/60hz 3phse |
No load sped(r/min) | 2950 |
Single port speed(m/s) | 12 |
Weight(kg) | 760 |
Negative Pressure(pa) | 3000 |
|
Consumption filters
(P)filter layers | 5 |
inner machine Replace time |
Flame retardant carltridges *4 324*213*660 3-6 months |
inner machine Replace time |
Active carbon filters 660*523*200mm 6-12 months |
Instruction:
Product features:
Pulse back blowing function
High quality, long life, high negative pressure
Large flow rate, long service life of filter element and good filtering effect
Field of application:
Medium and large laser cutting, medium and large laser welding
Product function:
Metal frame body structure, durable
Pulse back blowing function, longer service life of filter element
Stable and reliable operation, large suction air flow
Dust collection and filtration, fume filtering
Active carbon deodorization,
Flame retardant filter cartridge
FAQ:
Q: Why choose Fumego?
A: Lower using cost and longer machine life. We have 8 years after-sales warranty.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
Q: Do you do OEM?
A: Yes
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.
Q: Why should we use fume extractor?
A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.
Q:Is it easy to purchase the accessories for the machine?
A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.
Q: How long will the machine keep work?
A: At least 8 years.
