6000M3/H Explosion Proof Dust Collector 7500W For Laser Woodworking Equipment

6000M3/H Explosion Proof Dust Collector 7500W For Laser Woodworking Equipment

6000M3/H Explosion Proof Dust Collector 7500W For Laser Woodworking Equipment
6000M3/H Explosion Proof Dust Collector 7500W For Laser Woodworking Equipment
6000M3/H Explosion Proof Dust Collector 7500W For Laser Woodworking Equipment
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL5000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 10pcs per week
Contact Now
Detailed Product Description
Application: Dust And Power Situation Voltage: 380V/ 50 HZ
Noise: 76 Db Weight: 880 Kg
Air Volume: 5000 M³/h Keyword: HNP
System: Pulse Jet Cleaning System Power: 7500W
Type: Dust Collector Warrenty: 3 Years
High Light:

6000M3/H Explosion Proof Dust Collector

,

7500W Explosion Proof Dust Collector

,

6000M3/H Woodworking Dust Collector

Explosion Proof Dust Collector With Auto Cleaning System Cylinder Filters For Laser Woodworking Equipment





Application: Woodworking situation, Power dust situation and big Laser equipment usage.



Instruction:



1,The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

2, Imported integrated AC fan, stable performance and longer life;

3, Portable because it assemble with 4 wheels;

4, High negative pressure;

5, The machine is in a very small dimension, never occupying space;

6, No need to assemble, plug and turn it on, start to work;

7, The filter element adopts a return structure and can hold dust on all sides;

8, The fan speed is adjustable, timing function to turn on and off, and remote control;



Specifications:



Model Dust Collector FL5000
Dimension 1400*1280*3245 mm
Voltage 380V 50HZ
Power 7500W
Air flow 6000 m³/h
Weight 880 kg
Noise 76 db
Filters 7 layers
Filters layers Size and Frequency to replace
Fire and explosion proof 6 layers 324*213*660 mm  3-6 months
HEPA and active carbon filter 660*523*200 mm  6-12 months
Air speed 18 m/s
HNP 3000 pa





Features:



1, Using noise reduction structure design, to keep working environment quiet;

2, The fume tube can be randomly rotate, and can be fix in any position;

  We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

3, Assembled with DC brushless motor, which will have more stable performance and longer life;

4, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

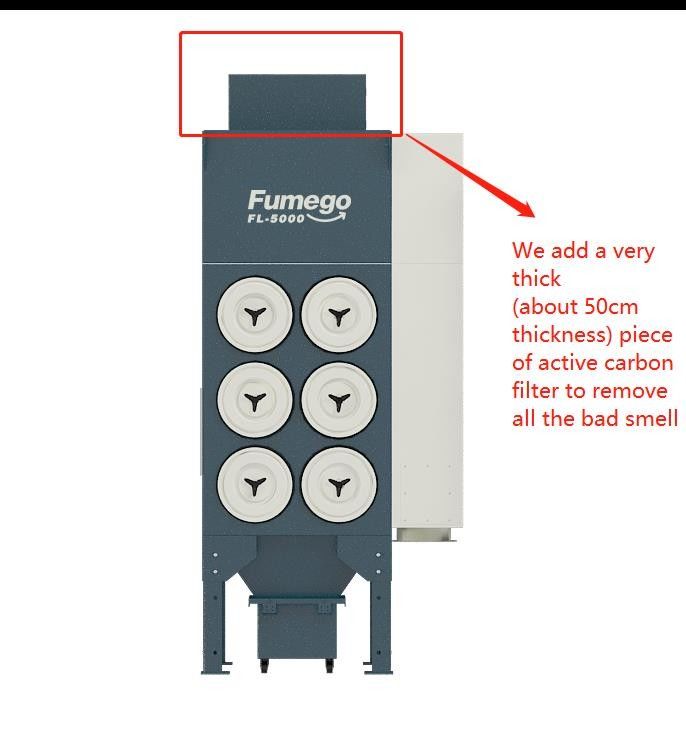

5, It have assemble with a very thick active carbon filters which can highly remove bad smells and harmful gas.



FAQ:



Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price. Whats more, Our product have several layers of filters and special active carbon filter which can highly remove bad smells and

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life. We have 8 years after-sales warranty.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

Q: How long will the machine keep work?

A: At least 8 years.



Pictures:

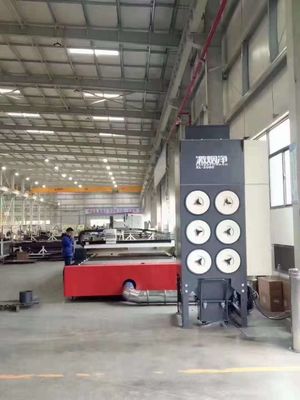

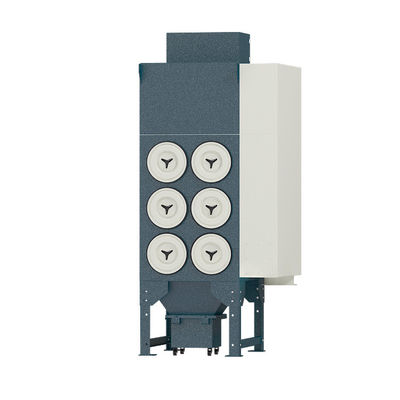

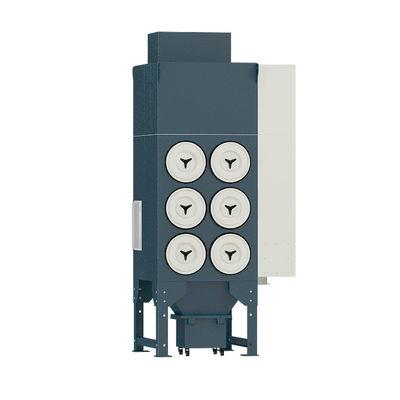

6000M3/H Explosion Proof Dust Collector 7500W For Laser Woodworking Equipment 0
