Microcomputer Control 500W SS Laser Cutting Fume Extractor

Microcomputer Control 500W SS Laser Cutting Fume Extractor

Microcomputer Control 500W SS Laser Cutting Fume Extractor
Microcomputer Control 500W SS Laser Cutting Fume Extractor
Microcomputer Control 500W SS Laser Cutting Fume Extractor
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: XL500M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Weight: 80 Kg Warranty: 5 Years
Filter: 8 Layers Noise: <70 Db
Dimensions: 550*430*920mm Power: 500w
Application: Laser Cutting Welding Cleaning Machine Air Flow: 700m3/h
High Light:

500W Laser Cutting Fume Extractor

,

Microcomputer Control Laser Cutting Fume Extractor

,

Microcomputer Control Laser Marking Fume Extractor

500W Stainless Steel Anti-corrosion Fume Extractor For Laser Cutting Welding Machine



Features:



1, The shell is stainless steel material, which is Anti-corrosion and can be used in lab for acid fumes;

2, Layers of different filters, clean air fasters and more efficient;

    Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

3, Our machine can maximize to use the filters;

    We are using different layers filters to collect different size level of pollution.

4, The fume tube can be randomly rotate, and can be fix in any position;

    We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

5, Microcomputer chip control, digital display, and remote control;

    Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.



Instructions:



Model FL-300 FL-500 FL-700
Filter 6 Layers 8 Layers 9 Layers
Weight 36.7kg 60kg 70kg

Dimensions

(L*W*H)

425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 500m³/h 750m³/h 1000m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)

Fireproof

protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter 450*380*50mm 450*380*100mm 450*380*100mm

Activated carbon

filter

450*380*50mm 450*380*50mm*2 450*380*50mm*2



Advantages:



1, It is also a dust collector, bad smell remover, and fire proof;

    We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

2, The machine is in a very small dimension, never occupying space;

3, No need to assemble, plug and turn it on, start to work;

4, All mental material shell, durable and sturdy;

5, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.



FAQ



Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

Q: How long will the machine keep work?

A: At least 8 years.

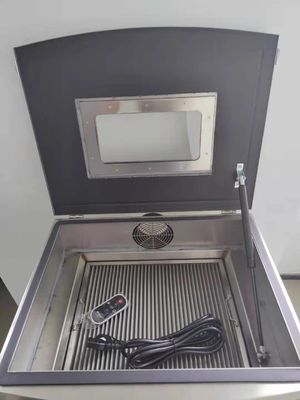

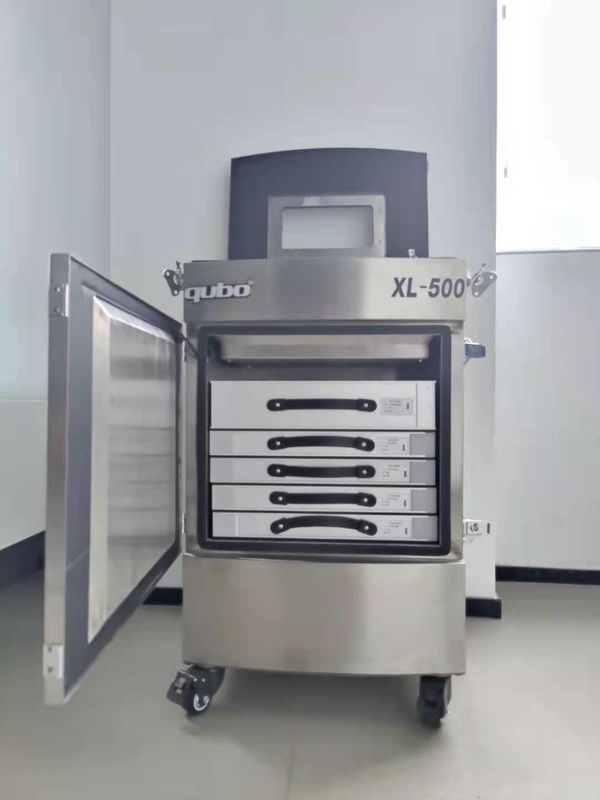

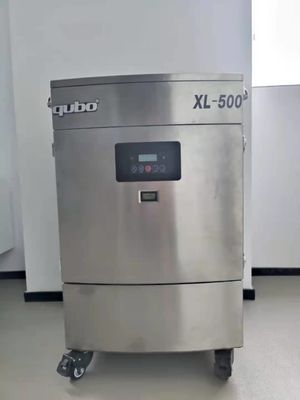

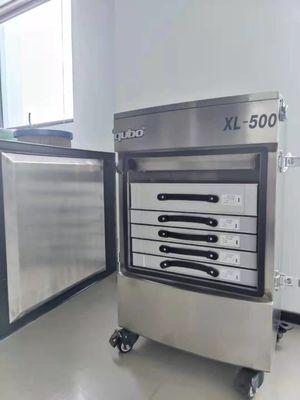

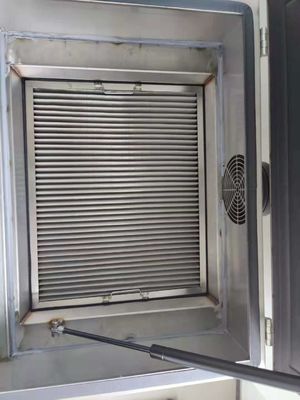

Product part picture:



Microcomputer Control 500W SS Laser Cutting Fume Extractor 0

Microcomputer Control 500W SS Laser Cutting Fume Extractor 1

Microcomputer Control 500W SS Laser Cutting Fume Extractor 2
