750W Mobile Fume Extractor 1000M3/H For Laser Cutting Machine

750W Mobile Fume Extractor 1000M3/H For Laser Cutting Machine

750W Mobile Fume Extractor 1000M3/H For Laser Cutting Machine
750W Mobile Fume Extractor 1000M3/H For Laser Cutting Machine
750W Mobile Fume Extractor 1000M3/H For Laser Cutting Machine
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL700II
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Weight: 75 Kg Warranty: 5 Years
Filter: 9 Layers Noise: <70 Db
Dimensions: 550*430*1060mm Power: 750w
Application: Laser Cutting Welding Cleaning Machine Air Flow: 1000m3/h
High Light:

750W Mobile Fume Extractor

,

1000M3/H Mobile Fume Extractor

,

1000M3/H Laser Cutting Fume Extractor

High Power 750W Fume Extractor With 1000M3/H Air Flow For Laser Cutting Welding Cleaning Machine



Features:



1, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

2, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

3, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

4, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

5, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;



Instructions:



Model FL-500II FL-700II
Filter 8 Layers 9 Layers
Weight 60kg 70kg

Dimensions

(L*W*H)

550*440*885mm 550*440*1035mm
Air Flow 750m³/h 1000m³/h
Noise <70dB <75dB
Power 450W 700W
Voltage AC 110-220V AC 110-220V
Size of Filter (can be customized)

Fireproof

protection net

415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm
Glass fiber filter 450*380*100mm 450*380*100mm

Activated carbon

filter

450*380*50mm*2 450*380*50mm*2


Advantages:



1, Higher negative pressure then FL-500 model.

2, Imported motor from Germany and Longer machine life;

3, Improved the layers of filters into a intergrated filter, better filter rate and higher efficiency;

4, Change the air inlet into the bottom of the machine and air outlet in the top backside;

5, Assemble with big capacity dust collect bag, which can highly save filter change cost;



FAQ



Q: What is your advantages?

A: All our models have explosion and fire proof function certificate, and we have more than 8 years warrenty for the main body and motor.

Q: Do you have agent in other country?

A: Yes, we have many sale agent and distributor all over the world, and we have subsidiary in France and a big warehouse there.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

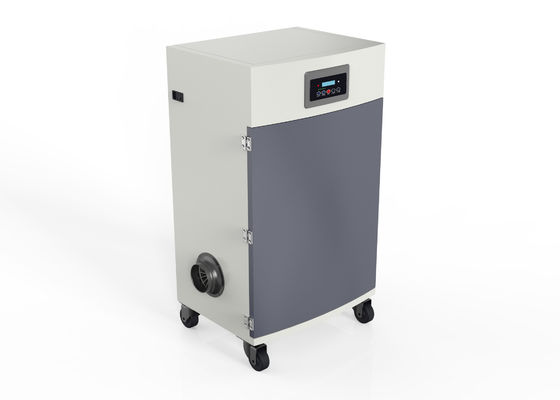

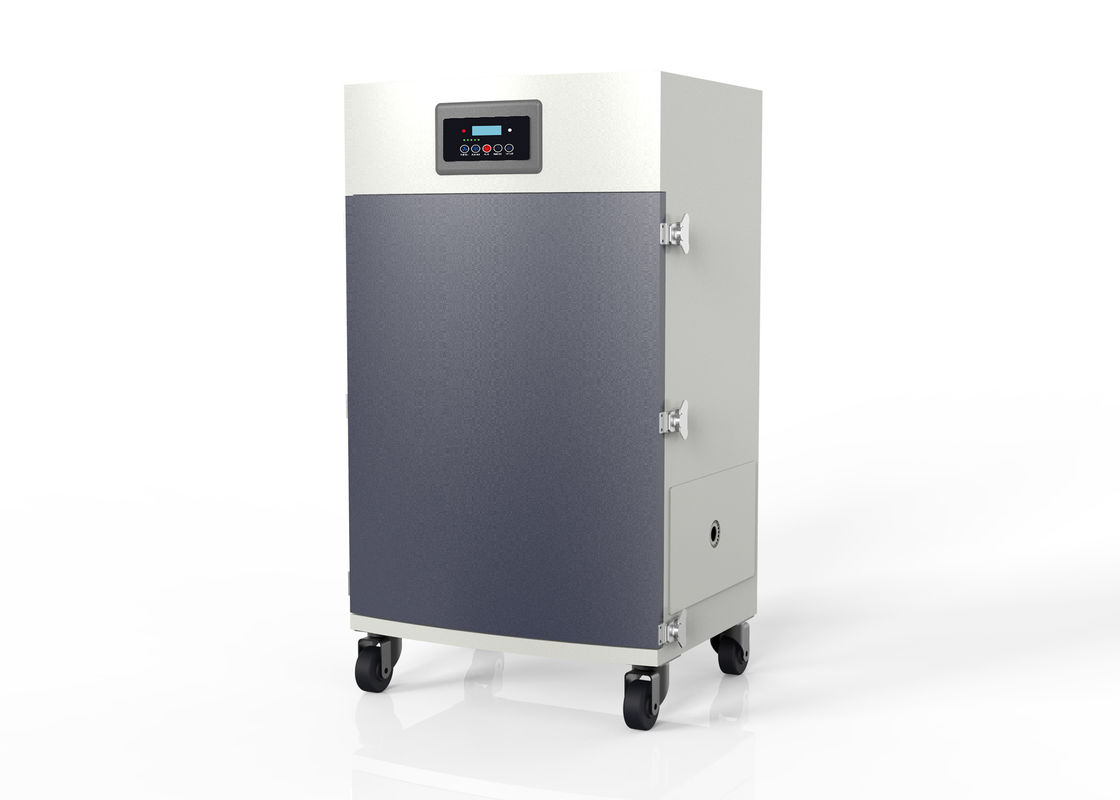

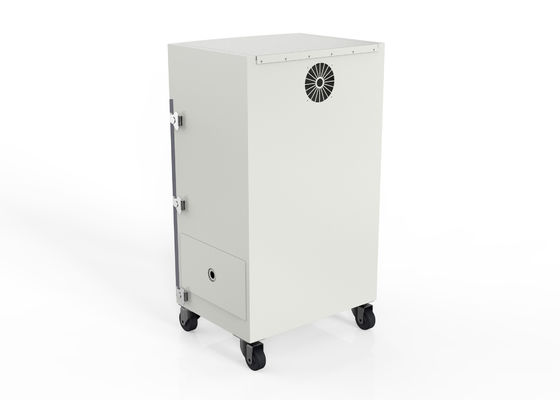

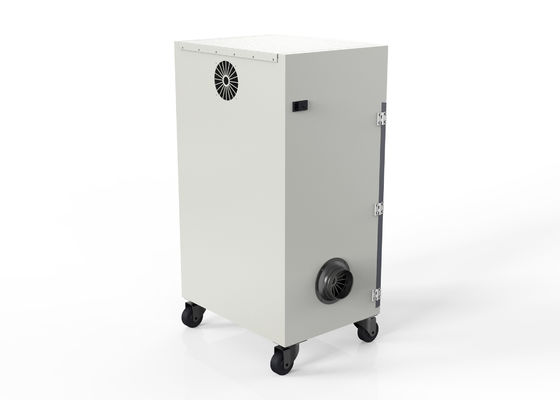

Product part picture:



750W Mobile Fume Extractor 1000M3/H For Laser Cutting Machine 0

750W Mobile Fume Extractor 1000M3/H For Laser Cutting Machine 1750W Mobile Fume Extractor 1000M3/H For Laser Cutting Machine 2
