Portable Lightweight Mobile Fume Extractor 235 M3/H

Portable Lightweight Mobile Fume Extractor 235 M3/H

Portable Lightweight Mobile Fume Extractor 235 M3/H
Portable Lightweight Mobile Fume Extractor 235 M3/H
Portable Lightweight Mobile Fume Extractor 235 M3/H
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FDL1001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Power: 80W Noise: <52
Warranty: 2 Years Weight: 12 Kg
Application: Manual Soldering Material: Mental Body Shell
Air Volume: 235 M³/h Voltage: 110V/220V
Keyword: Soldering Fume Extractor Color: Grey With Black
High Light:

Lightweight Mobile Fume Extractor


Portable Mobile Fume Extractor


235 M3/H Portable Fume Extractor

Portable 80 W Lightweight Mobile Fume Extractor For Laser Soldering Machine 235 M³/H



1, Filters out of effection alarm;


2, Mental body structure, strong and durable;


3, Microcomputer chip control, digital display, remote control;


4, Extractor arm is easy to change orientation, and stable


5, Noise reduction design, quiet operation;




Model Fume extractor FDL1001
Power 80 W
Air flow 235 m³/h
Dimension 420*245*400 mm
Voltage 110/220 V
Noise 52 db
Weight 12 kg
Filters 3 layers
Size and Frequency to replace Size and Frequency to replace
Pre-filter 365*180*25 mm  7-60 days
Middle filter 360*170*55 mm  3-6 months
HEPA filter 385*195*250mm 3-6 months
Usage Manual soldering, small Laser machine





1, Triple-filter design ensures thorough Purification, 99.99% filter rate;


2, Special alloy impeller,corrosion resistant,stable and reliable large air suction


3, Multiple filtration design,rapid purification


4, The machine can remove smoke, bad smells and dusts, multi-function;


5, Activated carbon deodorization,UVlight sterilization




Q: Are you a manufacture or trade company?


A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.


Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.


Q: Is the purified air discharged indoors or outdoors?

A: Both indoor and outdoor, according to your requirements, usually indoor, our products are in line with the indoor emission standards.


Q: Can the purified air meet the requirements of the environmental assessment?

A: The purified air is 300 to 500 times cleaner than the air we breathe normally. The products have passed the "CE" certification and "PONY" test

of the European Union, and meet the requirements of environmental assessment and export standards.


Q: Can I return it if the purification effect is not good?

A: If you choose the right model, the effect is certainly no problem. Of course, if the model we recommend has no effect, or the product quality is problematic, of course, you can return it, this is your right (the packaging is better not damaged, so as not to affect the second sales).


Q: What if it were damaged in transit?

A: We are in full charge of it. You don't need to assume any responsibility.


Q: Under what circumstances can I return it?

A: If the same quality problem has not been solved for more than 4 times, we can return it.


Q: Under what circumstances are returns not allowed?

A: Damaged appearance or packaging, beyond the probation period (usually 3 days) is not allowed to return.


Q: Is it difficult to maintain?

A: Check whether the pipe and interface are sealed, and replace the filter element regularly.

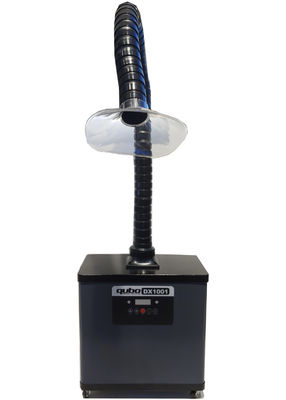

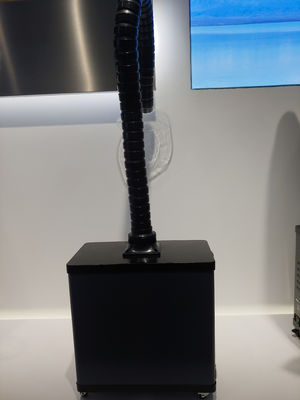

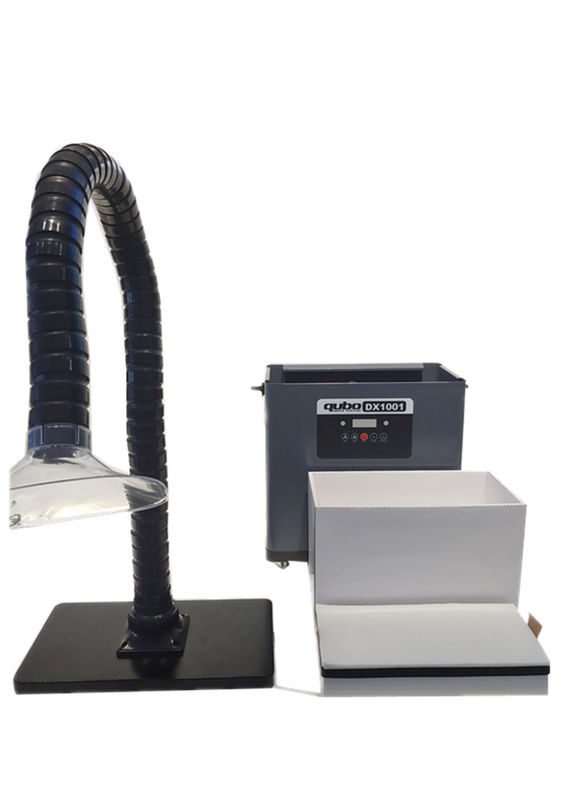

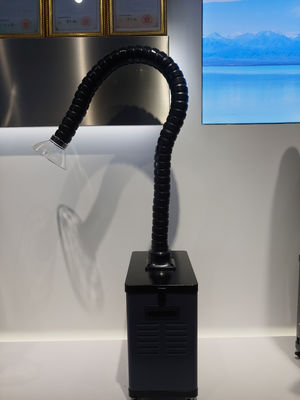

Product picture:



Portable Lightweight Mobile Fume Extractor 235 M3/H 0

Portable Lightweight Mobile Fume Extractor 235 M3/H 1

Portable Lightweight Mobile Fume Extractor 235 M3/H 2
