| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | Q480 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Weight: | 42 Kg | Air Flow: | 480m3/h |
|---|---|---|---|
| Dimensions: | 550*415*920 Mm | Filter: | 1 Layer |
| Noise: | <70 Db | Power: | 350w |
| Application: | Polishing Cutting | ||
| High Light: | 350W Laser Cutting Fume Extractor,480 M3/H Laser Cutting Fume Extractor,Organ Filter Laser Cutter Fume Extractor |
||
350 W Fume Extractor For Laser Cutting Soldering With Organ Filter 480m3/H High Air Flow
Features:
1. Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)
2. Low cost basis: as low as 1.85 yuan / day (8 hours / day)
3. Various types of materials make you have more choices to smole hood,silicone hood acrylic hood alloy hood
4. wide range of application, lasering welding beauty salon,has 4 whells easy to move and opreation
5. High negative pressure, high flow, small volume, light weight, easy installation, flexible filter replacement.
Instructions:
| Power(W) | 350w |
| Dimension(mm) | 550*415*920 |
| Air Flow(m3/h) | 480 |
| Noise(db) | <70 |
| Voltage | 110/220 |
| No-load speed(r/min) | 4200 |
| Wind spped(m/s) | 21 |
| Weight(kg) | 42 |
| Negative pressure(pa) | 2500 |
Advantages:
1. Brushless DC moter,stable long service life
2. Special alloy impeller,corrosion resistant,stable and reliable large air suction
3. Noise canceling design,quieter working place
4. Universal smoking arm,easy operation
5. Multiple filtration ensures complete purification of harmful smoke and dust
6. Special alloy impeller,corrosion resistant,stable and reliable large air suction
FAQ
Q: What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?
A: Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light, beautiful, high temperature resistant, high price.
Q: Does the size of the pipe affect the effectiveness of smoking?
A: Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.
Q: Is the product influenced by the environment that affects the smoking effect?
A: Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking
Q: How far is the smoke cover from the smoke point of the smoke purification system better?
A: Smoking cover (mouth) with the distance of unborn smoke point is better in 5-15 cm.
Q: what is the material of the smoking hood? Can it withstand high temperature? What are their characteristics?
A: the smoking hood is made of silica gel, acrylic, aluminum alloy, PP, PC and other materials; The flexibility of silicone material is good, it can withstand the temperature of about 400 degrees, and the cigarette end is not bad; Acrylic material has good light transmittance, but it is not resistant to high temperature; Aluminum alloy is light, beautiful and high temperature resistant.
Q: is it normal for the pipe to buzz sometimes?
A: normal. It is usually caused by the resonance of the pipeline. Just adjust the curvature of the pipeline.

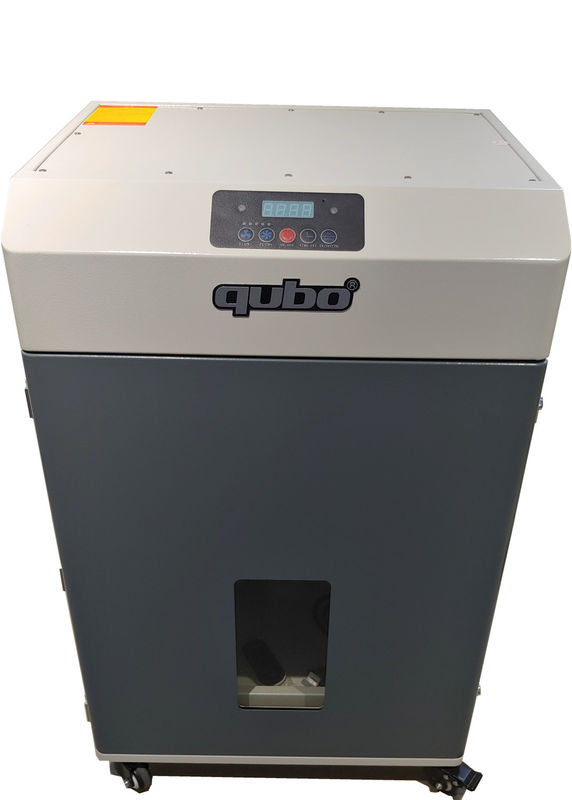

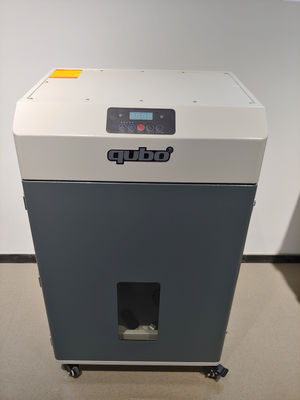

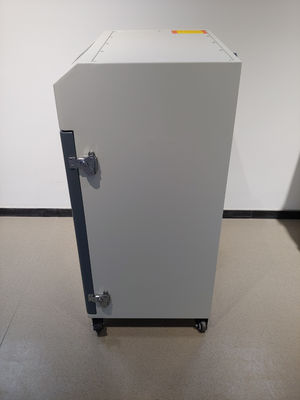

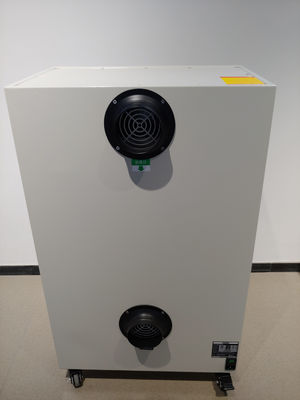

Product part picture:
