480 M3/H Laser Fume Extractor 350W With Digital Display

480 M3/H Laser Fume Extractor 350W With Digital Display

  • 480 M3/H Laser Fume Extractor 350W With Digital Display
  • 480 M3/H Laser Fume Extractor 350W With Digital Display
  • 480 M3/H Laser Fume Extractor 350W With Digital Display
  • 480 M3/H Laser Fume Extractor 350W With Digital Display
480 M3/H Laser Fume Extractor 350W With Digital Display
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: Q480
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Weight: 42 Kg Air Flow: 480m3/h
Dimensions: 550*415*920 Mm Filter: 1 Layer
Noise: <70 Db Power: 350w
Application: Polishing Cutting
High Light:

480 M3/H Laser Fume Extractor

,

Laser Fume Extractor 350W

,

480 M3/H Fume Extraction Machine

480m3/H white 350 W Fume Extractor With Replaceable Organ Filter Digital Display





Features:



1. High negative pressure, high flow, small volume, light weight, easy installation, flexible filter replacement.

2. Low cost basis: as low as 1.85 yuan / day (8 hours / day)

3. Multi layer filtration, rapid purification, filter failure sound and light

4. 8 years super long warranty for main engine, lifelong after-sales service for customers..

5. Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)



Instructions:



Power(W)  350w
Dimension(mm) 550*415*920
Air Flow(m3/h) 480
Noise(db) <70
Voltage 110/220
No-load speed(r/min) 4200
Wind spped(m/s) 21
Weight(kg) 42
Negative pressure(pa) 2500


Advantages:



1. Multiple filtration ensures complete purification of harmful smoke and dust

2. Noise canceling design,quieter working place

3. Noise canceling design,quieter working place

4. Universal smoking arm,easy operation

5. Brushless DC moter,stable long service life

6. Special alloy impeller,corrosion resistant,stable and reliable large air suction









FAQ



Q: Can it be used in extremely humid or corrosive environment?

A: No, because in a particularly humid environment, moisture or corrosive gas will damage the filter element and the internal components of the machine; but usually in spring, humid weather, such as "southerly days", will not affect the use.



Q: Can it be used in high temperature environment?

A: The high temperature should be divided into instantaneous high temperature and long-term high temperature, the temperature within 60 degrees can be used; the temperature over 60 degrees for a long time is not recommended, because it may lead to fire.



Q: Does the size of the pipe affect the effectiveness of smoking?

A: Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.



Q: Is the product influenced by the environment that affects the smoking effect?

A: Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking



Q: If the influence of fans and air conditioners is unavoidable, what methods can be used to solve the problem

A: Use a smoking mask to block the influence of peripheral wind (air flow) on it



Q: How far is the smoke cover from the smoke point of the smoke purification system better?

A: Smoking cover (mouth) with the distance of unborn smoke point is better in 5-15 cm.

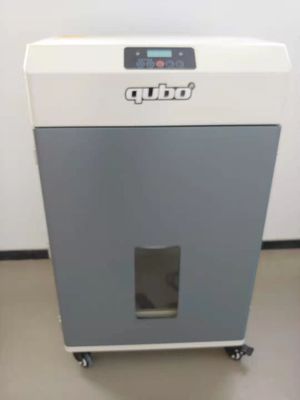

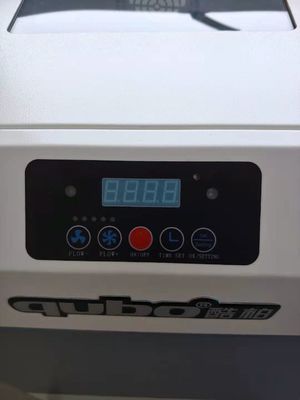

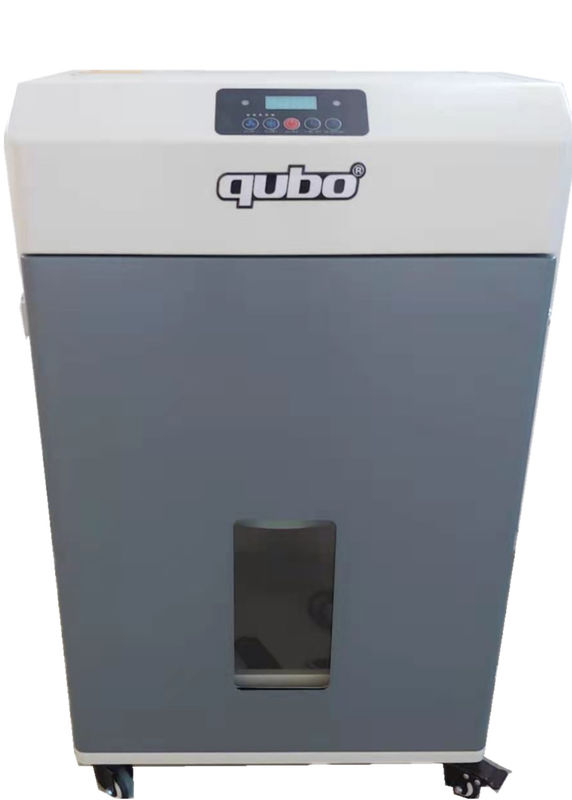

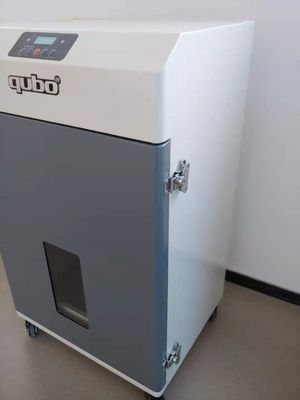

Product part picture:



480 M3/H Laser Fume Extractor 350W With Digital Display 0480 M3/H Laser Fume Extractor 350W With Digital Display 1480 M3/H Laser Fume Extractor 350W With Digital Display 2480 M3/H Laser Fume Extractor 350W With Digital Display 3
