| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | DX1001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Weight: | 12 Kg | Filter: | 3 Layers |
|---|---|---|---|
| Application: | Welding Heat-gun Handling | Noise: | <52 Db |
| Dimensions: | 420*245*400mm | Air Flow: | 235m3/h |
| Power: | 80w | ||
| High Light: | Mobile Soldering Fume Extractor,235 M3/H Soldering Fume Extractor,Brushless DC Motor Welding Fume Extractor |
||
Portable 80 Watt Fume Extractor For Laser Cutting Marking Beauty Salon
Features:
1 Multiple filtration ensures complete purification of harmful smoke and dust
2 Noise canceling design,quieter working place
3 Universal smoking arm,easy operation
4 Brushless DC moter,stable long service life
5 Special alloy impeller,corrosion resistant,stable and reliable large air suction
Instructions:
| Power(W) | 80 |
| Dimension(mm) | 420*245*400 |
| Air Flow(m3/h) | 235 |
| Noise(db) | <52 |
| Voltage | 110/220 |
| No-load speed(r/min) | 2000 |
| Wind spped(m/s) | 17 |
| Weight(kg) | 12 |
| Negative pressure(pa) | 2000 |
Advantages:
1 Easy to set tp and use, do not need professionl to install, with replaceable filter,save more service life.
2 Self-developed brushless dc motor,no need to change carbon brush,save more power consumpution,able to working 40000hours continuously
3 Wide application lasering welding beauty salon,has 4 whells easy to move and opreation
4 Various types of materials make you have more choices to smole hood,silicone hood acrylic hood alloy hood
5 3 layers filters can be separate replace,high efficient sterilization make work place safer
FAQ
Q: How long is the tube standard configuration?
A: The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).
Q: Can smoking pipes be shortened or lengthened at will?
A: It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)
Q: What are the diameter specifications of smoking pipe?
A: Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.
Q: What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?
A: Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light, beautiful, high temperature resistant, high price.
Q: Does the size of the pipe affect the effectiveness of smoking?
A: Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.

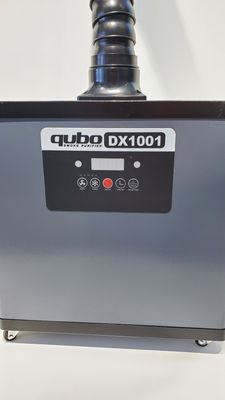

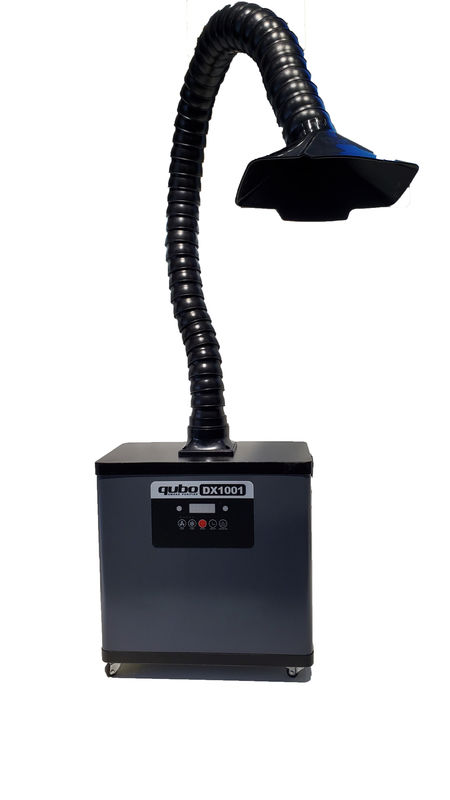

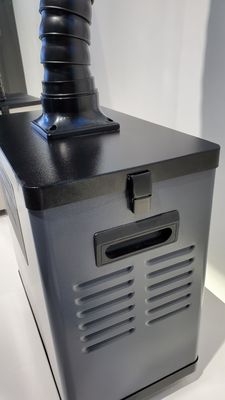

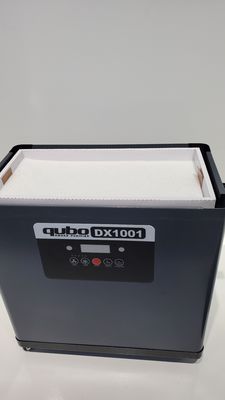

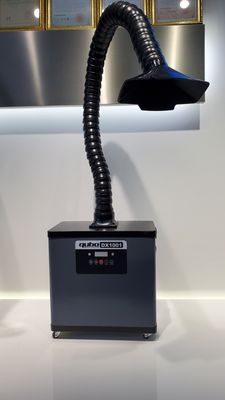

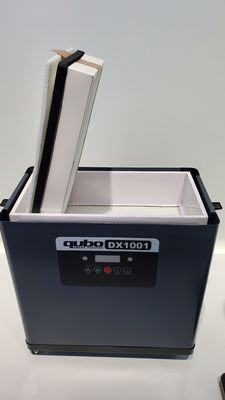

Product part picture:
