Place of Origin: | China |
Brand Name: | Fumego Qubo |
Certification: | CE ROHS |
Model Number: | Q100 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Carton box package |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100pcs per week |
Application: | Soldering, Laser Cutting, | Warranty: | 2 Years |
---|---|---|---|
Dimension: | 340*265*480mm | Voltage: | 110/220 V |
Weight: | 11kg | Air Flow: | 220 M3/H |
Filter: | 2 Layers | Noise: | 57db |
Power: | 80w | ||
High Light: | 57db Hair Salon Fume Extractor,1800pa Hair Salon Fume Extractor,1800pa Air Filter Machine |
Fume Extractor For Laser Marking Cutting Welding Portable With Universal Wheels Movable Lightweight
Features:
1.Multilayer filter design,make sure more thorogh purification
2.Brushless DC moter,stable long service life
3.Compact design machine with 4 universal wheel under,easy to move and storage
4,Removabel hook and cover,replace the filter and check the condition easyier
5,Durable mental frame structure,firm and unshaped
Instructions:
Power(W) | 80 |
Dimension(mm) | 340*265*480 |
Air Flow(m3/h) | 220 |
Noise(db) | <57 |
Voltage | 110/220 |
No-load speed(r/min) | 5800 |
Wind spped(m/s) | 17 |
Weight(kg) | 11 |
Negative pressure(pa) | 1800 |
Advantages:
1.Multi layer filtration, rapid purification, filter failure sound and light alarm.
2.Low cost basis: as low as 1.85 yuan / day (8 hours / day)
3.Removabel hook and cover,change the filter and check the filter condition easyier
4.Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)
5.Durable mental frame structure,firm and unshaped,small footprint
FAQ:
Q:How long is the tube standard configuration?
A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).
Q:Can smoking pipes be shortened or lengthened at will?
A:It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)
Q:What are the diameter specifications of smoking pipe?
A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.
Q:What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?
A:Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light,great looking, high temperature resistant, high price.

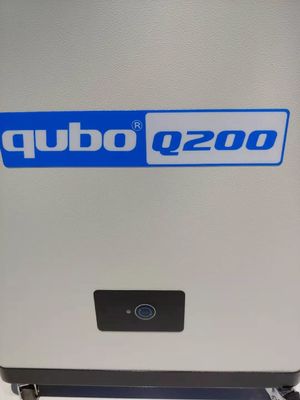

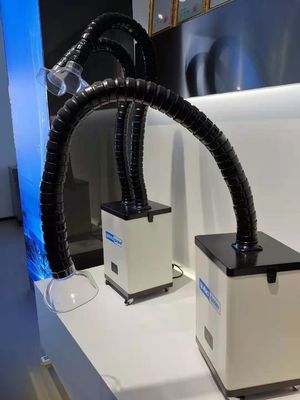

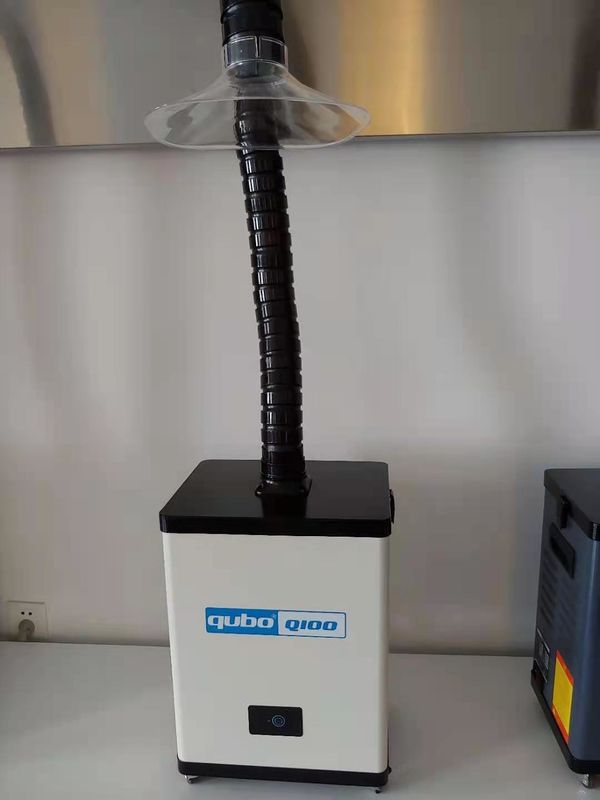

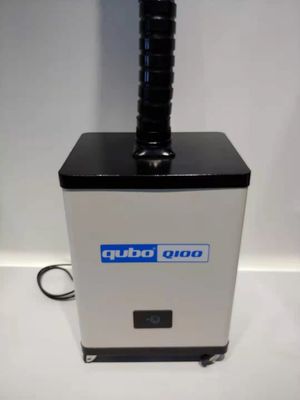

Product part picture:
